ST191L-AEPNK (1992)
Toyota Corona (Sed/Lb)

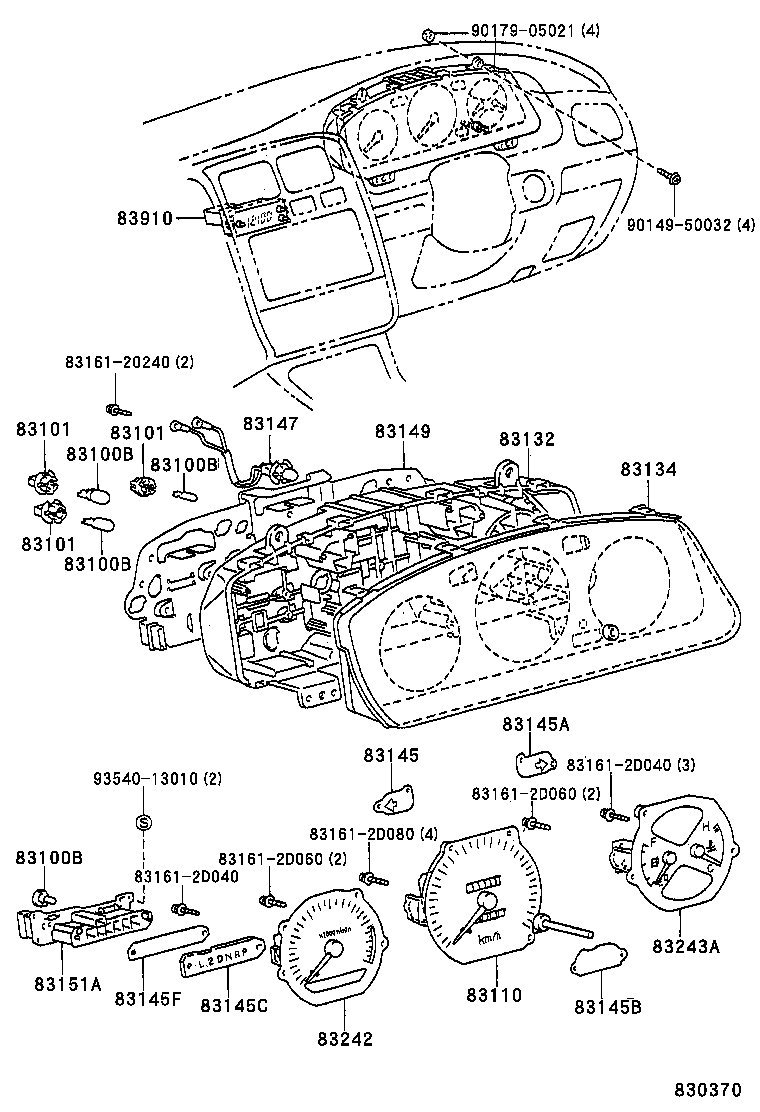

ILLUST NO. 1 OF 2(9203- )JPP
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D340 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D350 |
AT190,ST191..JPP..GL |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D610 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D610 |
AT190..JPP;ST191..JPP..SED..GL MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP..GL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20660 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D060 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20260 |
AT190,ST191..JPP..ATM |
1 | ||
| 83134-20260 |
ST191..JPP..ATM |
1 | ||
| 83134-20260 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2D700 |
AT190,ST191..JPP..ATM |
1 | ||
| 83145-2D700 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83146-20680 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145-2D700 |
ST191..JPP..ATM |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-20260 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83149-20360 |
ST191..JPP..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20700 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 83162-20200 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||

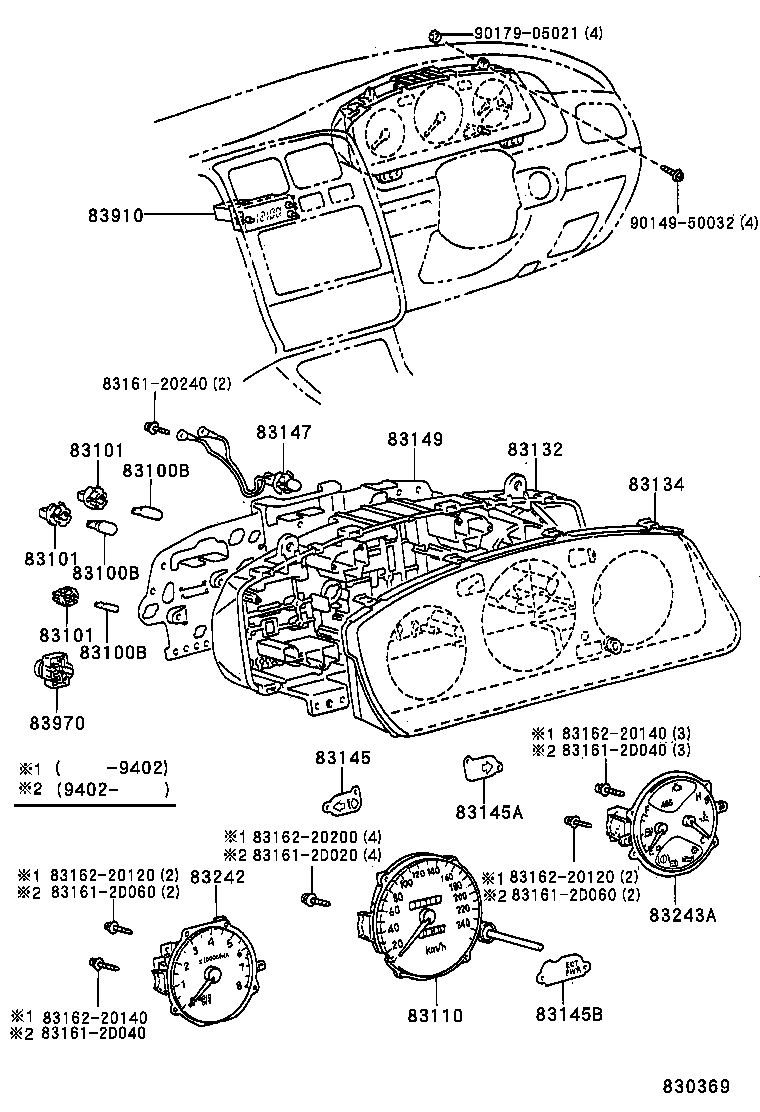

ILLUST NO. 1 OF 2(9203- )JPP
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D340 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D350 |
AT190,ST191..JPP..GL |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D610 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D610 |
AT190..JPP;ST191..JPP..SED..GL MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP..GL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20660 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D060 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20260 |
AT190,ST191..JPP..ATM |
1 | ||
| 83134-20260 |
ST191..JPP..ATM |
1 | ||
| 83134-20260 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2D700 |
AT190,ST191..JPP..ATM |
1 | ||
| 83145-2D700 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83146-20680 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145-2D700 |
ST191..JPP..ATM |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT190,ST191..JPP |
1 | ||
| 83147-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 83147-20040 |
AT190,ST191..JPP |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-20260 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83149-20360 |
ST191..JPP..ATM |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20780 |
AT190,ST191..JPP..ATM |
1 | ||
| 83881-20260 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83242-2D280 |
ST191..JPP..ATM |
1 | ||
| 83242-2D280 |
AT190,ST191..JPP..ATM |
1 | ||
| 83242-2D280 |
AT190,ST191..JPP..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20700 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-2D020 | ||||
| 83161-2D040 | ||||
| 83161-2D060 | ||||
| 83162-20120 | ||||
| 83162-20140 | ||||
| 83162-20200 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||

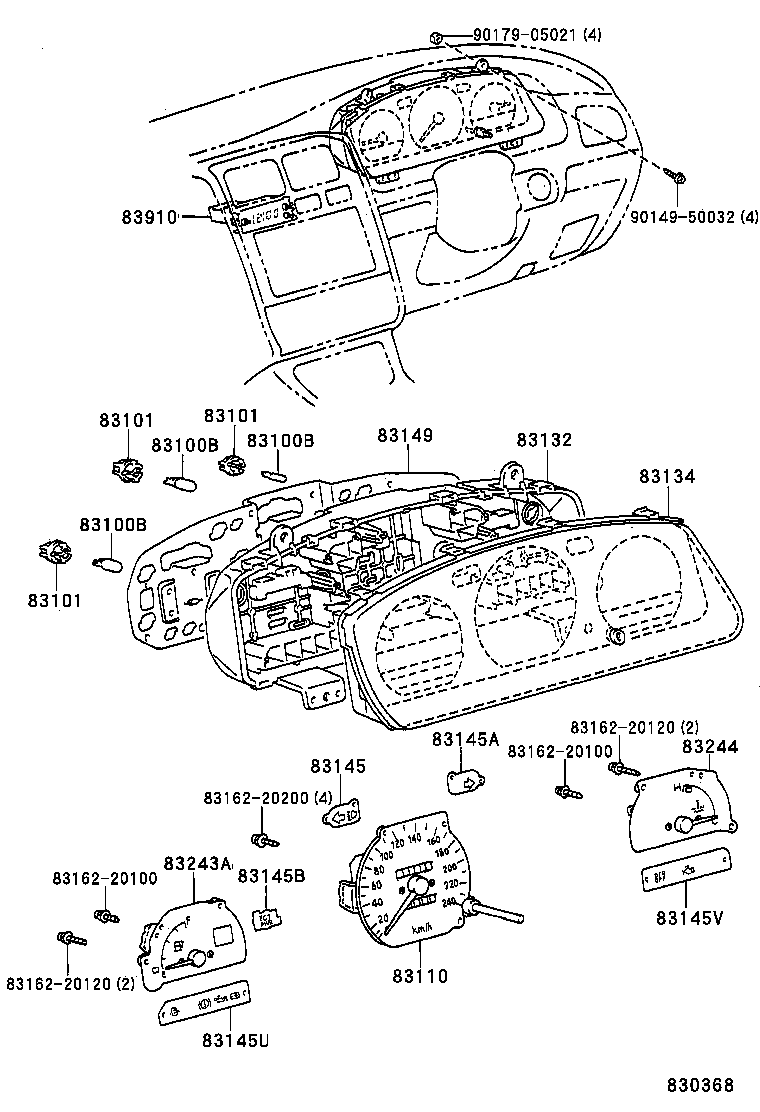

ILLUST NO. 1 OF 2(9606- )ST191..JPP
INDONESIA OR PHILIPPINES SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
9 | ||
| 83109-24030 |
AT190,CT190,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
8 | ||
| 84999-30040 |
ST191..JPP..ATM 14V 1.4W,W(SOCKET),FOR INDICATOR LAMP |
7 | ||
| 99132-12034 |
AT190,ST191..JPP 12V 3.4W |
3 | ||
| 90981-11018 |
ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
ST191..JPP..LHD..ATM 12V 1.2W W/O SOCKET,PHILIPPINES SPEC |
9 | ||
| 90981-11018 |
AT190,ST191..JPP..ATM 12V 1.2W W/O SOCKET |
8 | ||
| 83109-24030 |
AT190,ST191..JPP 12V3.4W W(GREEN CAP) |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT190,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
9 | ||
| 83101-14040 |
AT190,CT190,ST191..JPP BULB:12V 1.4W |
8 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-20040 |
AT190,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20040 |
AT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-14040 |
AT190,ST191..JPP..ATM BULB:12V 1.4W |
8 | ||
| 83101-20070 |
AT190,ST191..JPP BULB:12V 3.4W,G.CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D340 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D350 |
AT190,ST191..JPP..GL |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D610 |
AT190,ST191..JPP MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D610 |
AT190..JPP;ST191..JPP..SED..GL MPH/KM,W(TACHOMETER) |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP |
1 | ||
| 83110-2D640 |
AT190,ST191..JPP..GL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20660 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,CT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D080 |
AT190,ST191..JPP |
1 | ||
| 83132-2D060 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20260 |
AT190,ST191..JPP..ATM |
1 | ||
| 83134-20260 |
ST191..JPP..ATM |
1 | ||
| 83134-20260 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT190,ST191..JPP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145-2D620 |
AT190,ST191..JPP |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2D700 |
AT190,ST191..JPP..ATM |
1 | ||
| 83145-2D700 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83146-20680 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83145-2D700 |
ST191..JPP..ATM |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83134-2D040 |
ST191..JPP..ATM |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-2D680 |
ST191..JPP..ATM |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT190,ST191..JPP |
1 | ||
| 83147-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 83147-20040 |
AT190,ST191..JPP |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-20260 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM |
1 | ||
| 83149-20360 |
AT190,ST191..JPP..ATM..GL |
1 | ||
| 83149-20360 |
ST191..JPP..ATM |
1 | ||
| 83151A - LAMP ASSY, INDICATOR | ||||
| 83151-2D020 |
ST191..JPP..ATM |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20780 |
AT190,ST191..JPP..ATM |
1 | ||
| 83881-20260 |
ST191..JPP..LHD..ATM PHILIPPINES SPEC |
1 | ||
| 83242-2D280 |
ST191..JPP..ATM |
1 | ||
| 83242-2D280 |
AT190,ST191..JPP..ATM |
1 | ||
| 83242-2D280 |
AT190,ST191..JPP..ATM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20700 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP..GL |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83243-2D100 |
AT190,ST191..JPP |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| 83910-20640 |
AT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-2D040 | ||||
| 83161-2D060 | ||||
| 83161-2D080 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
| 93540-13010 | ||||

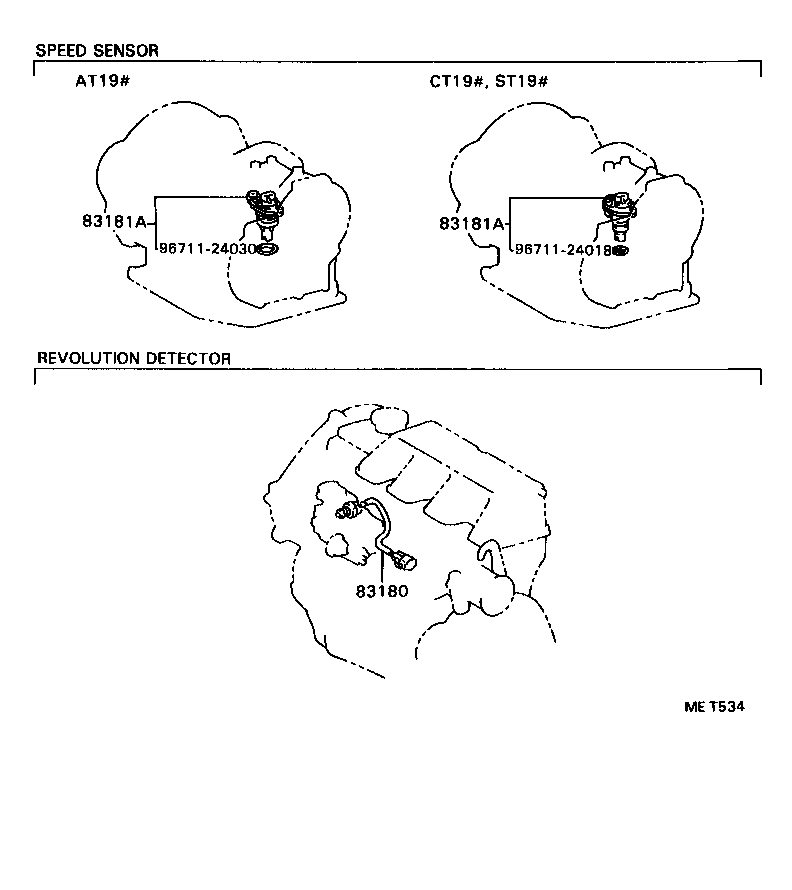

ILLUST NO. 2 OF 2(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST191..JPP..ATM |
1 | ||
| 83181-12060 |
ST191..JPP..ATM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST191..JPP..ATM |
1 | ||
| 83181-12060 |
ST191..JPP..ATM |
1 | ||
| Common parts | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
