CT190L-AEPNS (1992)
Toyota Corona (Sed/Lb)
(9203- )CT190..JPP

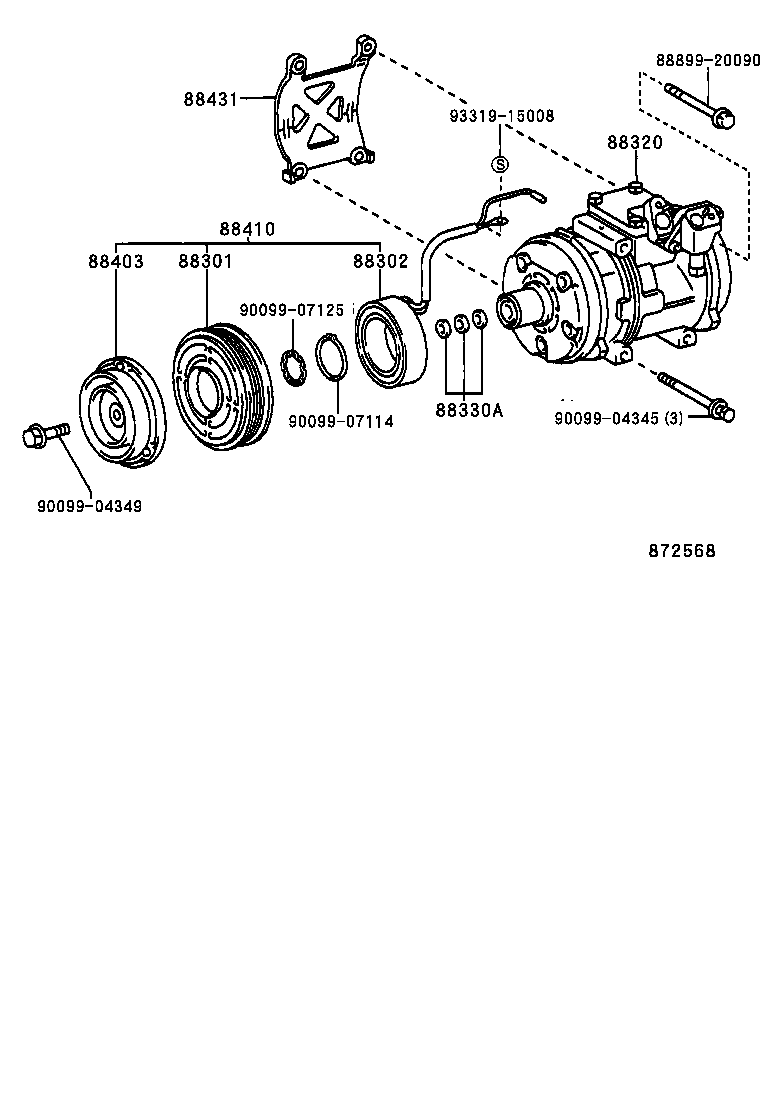

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-2B010 |
CT190..JPP |
1 | ||
| 88412-33050 |
CT190..JPP |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B080 |
CT190..JPP |
1 | ||
| 88411-22310 |
CT190..JPP |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-2B130 |
CT190..JPP |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AT190,CT190,ST191..JPP |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
AT190,CT190,ST191..JPP |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-2B060 |
CT190..JPP |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12460 |
CT190..JPP |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04345 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 93319-15008 | ||||
(9203- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-2B130 |
CT190..JPP |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04370 |
AT190,CT190,ST191..JPP |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL REAR |
1 | ||
| 88321-2B010 |
CT190,ST191..JPP FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL REAR |
1 | ||
| 88321-2B010 |
CT190,ST191..JPP FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
AT190,CT190,ST191..JPP REAR |
1 | ||
| 88341-22010 |
AT190,CT190,ST191..JPP FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
AT190,CT190,ST191..JPP REAR |
1 | ||
| 88341-22010 |
AT190,CT190,ST191..JPP FRONT |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
AT190,CT190,ST191..JPP |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
AT190,CT190,ST191..JPP |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AT190,CT190,ST191..JPP |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AT190,CT190,ST191..JPP |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AT190,CT190,ST191..JPP |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AT190,CT190,ST191..JPP |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04924 |
AT190,CT190,ST191..JPP |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B010 |
AT190,CT190,ST191..JPP |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-2B050 |
CT190,ST191..JPP |
1 | ||
| 88336-2B050 |
CT190..JPP |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AT190,CT190,ST191..JPP |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AT190,CT190,ST191..JPP |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AT190,CT190,ST191..JPP |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
AT190,CT190,ST191..JPP |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-2B080 |
CT190..JPP |
1 | ||
| Common parts | ||||
| 88396-20010 | ||||
| 88398-12010 | ||||
| 88688-22180 | ||||
