Toyota Corona (sed/lb) CT190 WIRING & CLAMP

CT190L-AEPNS (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996

Engine 2C

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF10(9203- )JPP

Click highlighted areas on diagram

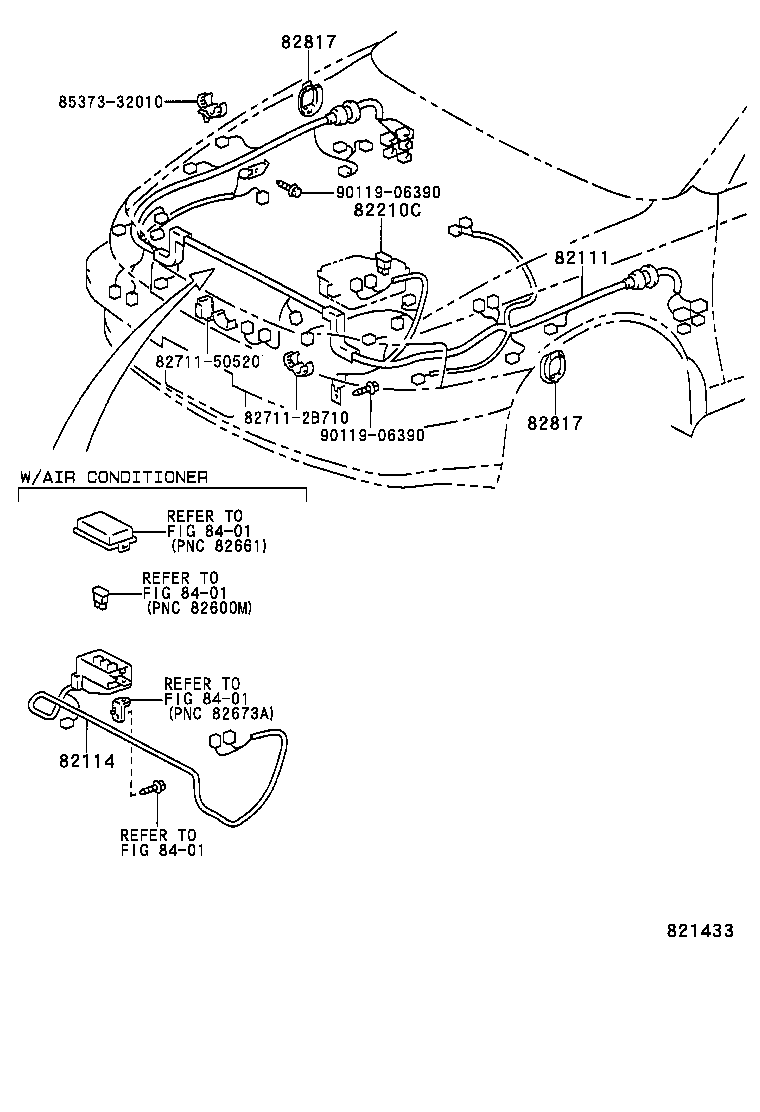

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2G380	CT190..JPP	03/1992 - 07/1993	1
82111-2H420	CT190..JPP	02/1994 - 01/1996	1
82111-2G381	CT190..JPP	07/1993 - 02/1994	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-20170	CT190..JPP	03/1992 - 02/1994	1
82210C - FUSIBLE LINK
90982-08227	AT190,CT190,ST191..JPP 50A,TERM.:FEMALE,RED	03/1992 - 06/1996	1
90982-08246	AT190,CT190,ST191..JPP 100A,TERM.:MALE,BLUE	03/1992 - 06/1996	1
90982-08203	CT190..JPP 80A,TERM.:MALE,BLK	03/1992 - 01/1996	1
90982-08189	AT190,CT190,ST191..JPP 40A,TERM.:FEMALE,GRN	03/1992 - 06/1996	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D040	AT190,CT190,ST191..JPP FENDER RH	03/1992 - 06/1996	1
82817-2D090	AT190,CT190,ST191..JPP COWL	03/1992 - 06/1996	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D040	AT190,CT190,ST191..JPP FENDER RH	03/1992 - 06/1996	1
82817-2D090	AT190,CT190,ST191..JPP COWL	03/1992 - 06/1996	1
Common parts
82711-2B710
82711-50520
85373-32010
90119-06390
Linked diagrams
8401

ILLUST NO. 2 OF10(9203- )CT190..JPP

Click highlighted areas on diagram

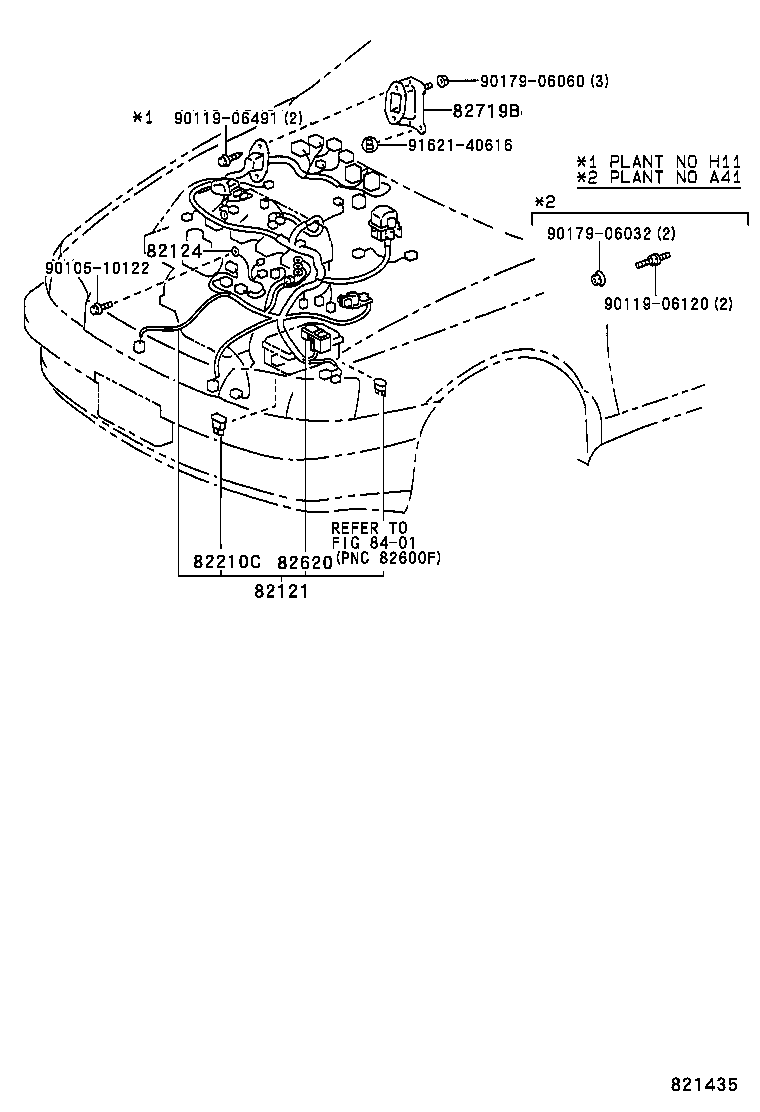

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2H130	CT190..JPP	03/1992 - 08/1992	1
82121-2H131	CT190..JPP	08/1992 - 12/1992	1
82121-2H580	CT190..JPP	12/1992 - 02/1994	1
82121-2L270	CT190..JPP	02/1994 - 01/1996	1
82124 - WIRE, ENGINE, NO.4
82124-20130	CT190..JPP	03/1992 - 01/1996	1
82210C - FUSIBLE LINK
90982-08227	AT190,CT190,ST191..JPP 50A,TERM.:FEMALE,RED	03/1992 - 06/1996	1
90982-08246	AT190,CT190,ST191..JPP 100A,TERM.:MALE,BLUE	03/1992 - 06/1996	1
90982-08203	CT190..JPP 80A,TERM.:MALE,BLK	03/1992 - 01/1996	1
90982-08189	AT190,CT190,ST191..JPP 40A,TERM.:FEMALE,GRN	03/1992 - 06/1996	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-20160	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
82719B - COVER, WIRE HARNESS SERVICE HOLE(FOR ENGINE ROOM)
82719-20010	AT190,CT190,ST191..JPP..LHD	02/1994 - 12/2999	1
82719-20010	AT190,CT190,ST191..JPP..LHD	03/1992 - 09/1992	1
Common parts
90105-10122
90119-06120
90119-06491
90179-06032
90179-06060
91621-40616
Linked diagrams
8401

ILLUST NO. 3 OF10(9203- )JPP

Click highlighted areas on diagram

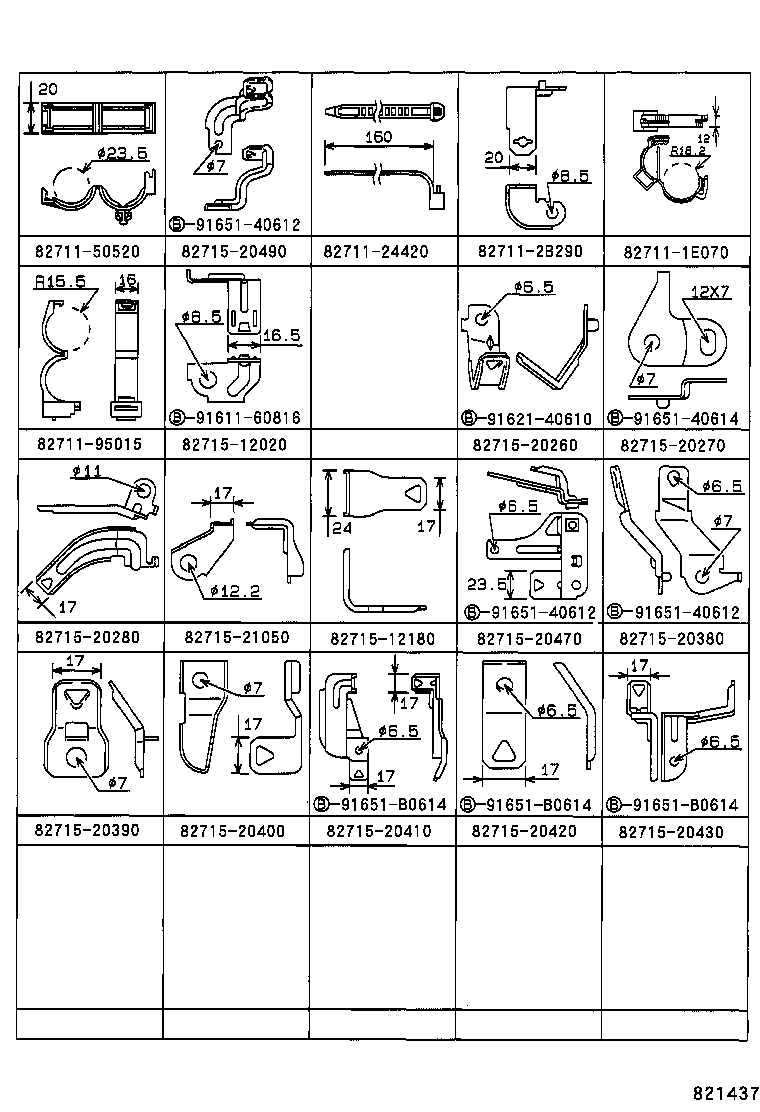

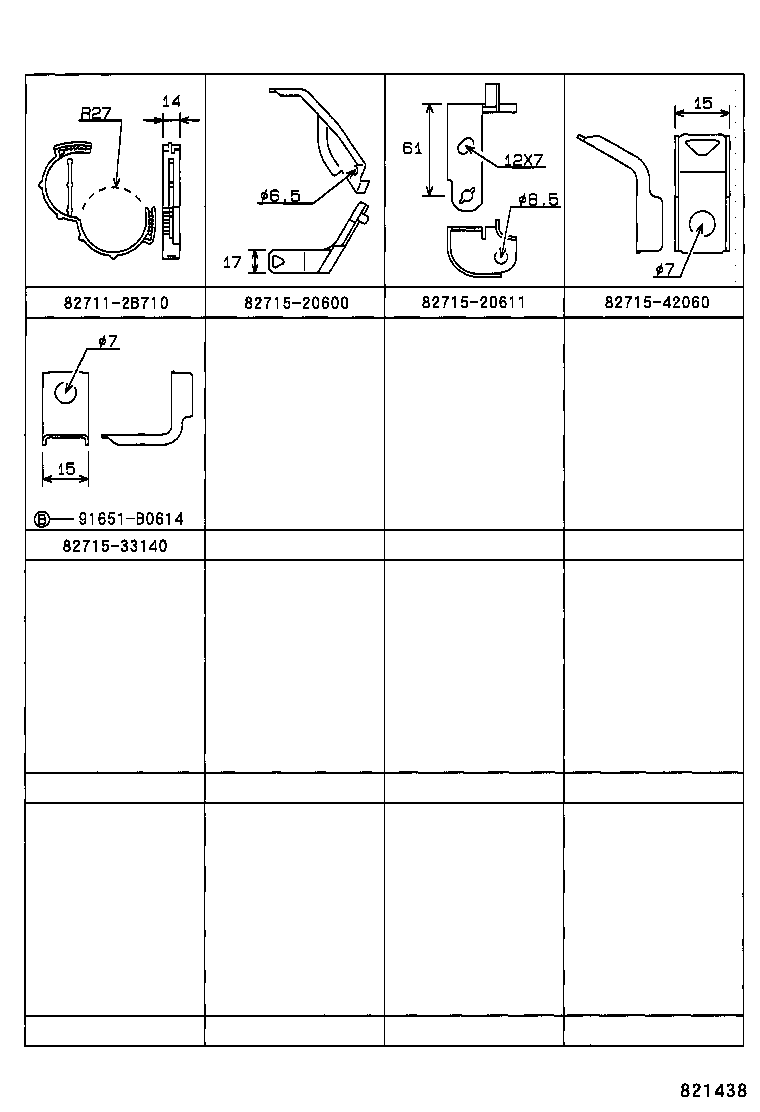

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1E070
82711-24420
82711-2B290
82711-50520
82711-95015
82715-12020
82715-12180
82715-20260
82715-20270
82715-20280
82715-20380
82715-20390
82715-20400
82715-20410
82715-20420
82715-20430
82715-20470
82715-20490
82715-21050
91611-60816
91621-40610
91651-40612
91651-40614
91651-B0614

ILLUST NO. 3 OF10(9203- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2B710
82715-20600
82715-20611
82715-33140
82715-42060
91651-B0614

ILLUST NO. 4 OF10(9203- )JPP

Click highlighted areas on diagram

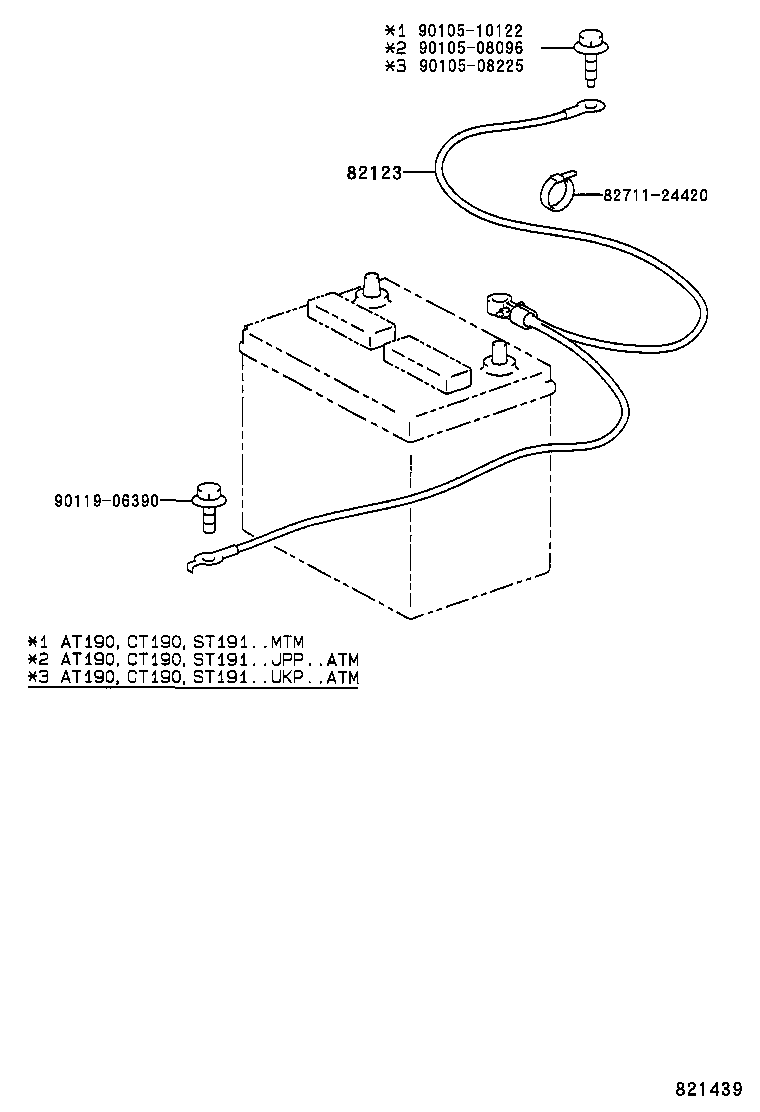

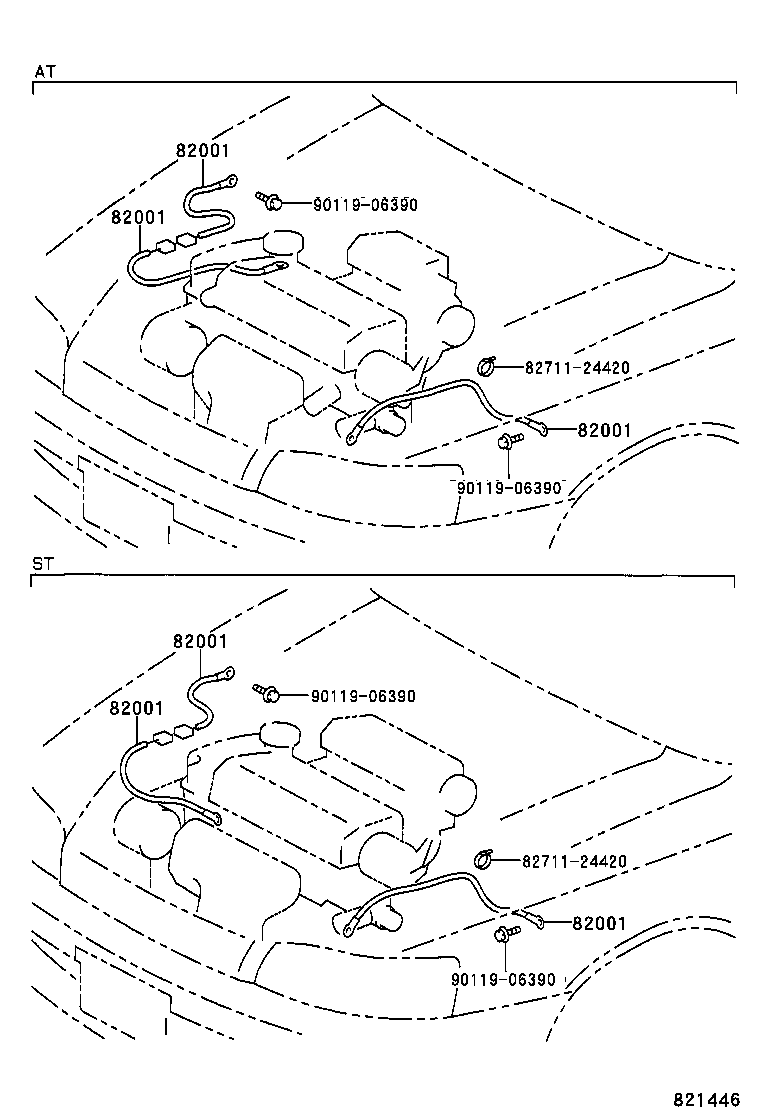

BATTERY CABLE

Part #	Description	Period	Qty
82123 - WIRE, ENGINE, NO.3
82123-20020	CT190..JPP	04/1992 - 01/1996	1
Common parts
82711-24420
90105-08096
90105-08225
90105-10122
90119-06390

ILLUST NO. 5 OF10(9203- )JPP..LHD

Click highlighted areas on diagram

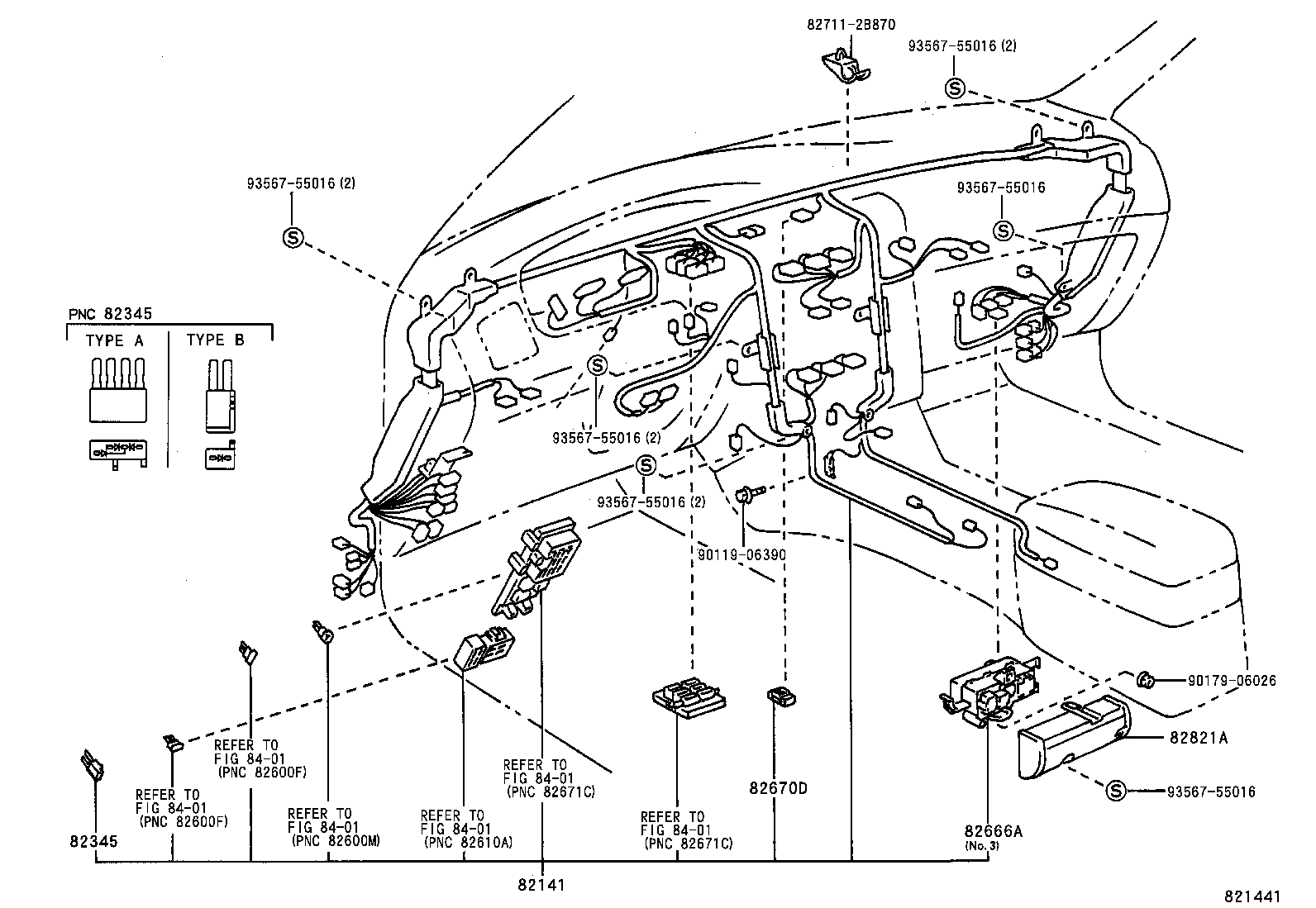

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-2B290	CT190,ST191..JPP..LHD..ATM	03/1992 - 05/1993	1

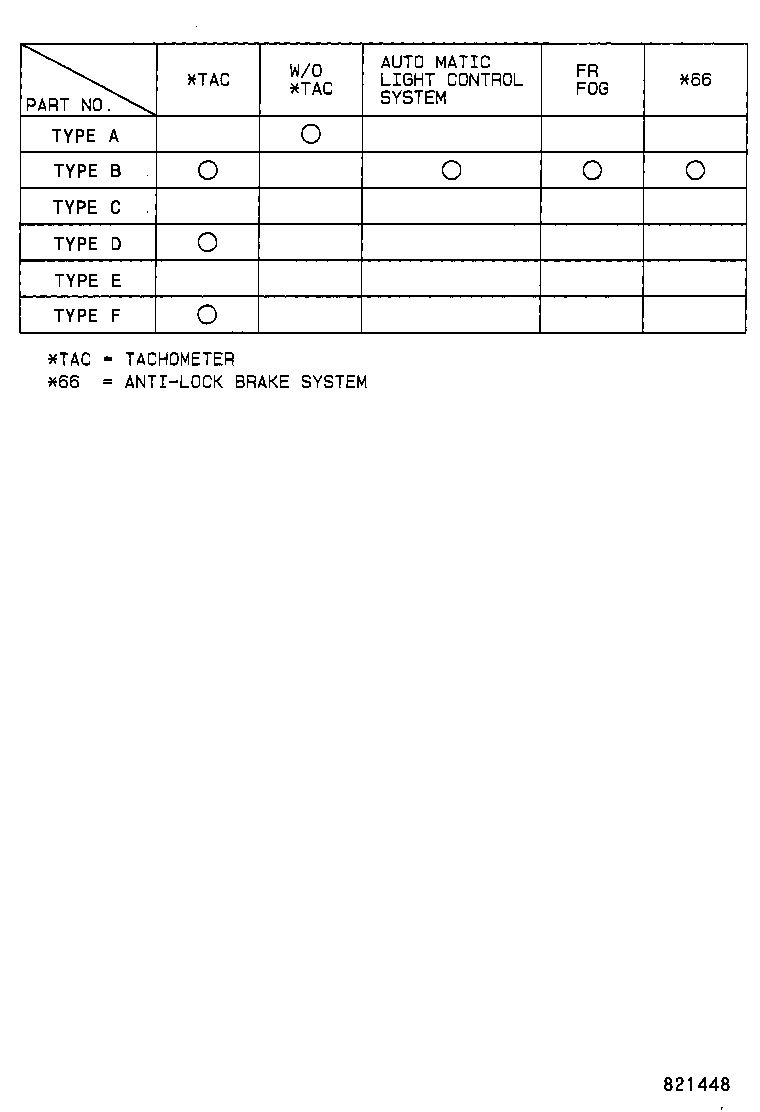

82141-2B291	AT190,CT190,ST191..JPP..LHD..ATM TYPE F:REFER TO ILLUSTRATION	05/1993 - 02/1994	1
82345 - DIODE
82345-32010	ST191..JPP..GL;AT190,CT190..JPP TYPE B:REFER TO ILLUSTRATION	03/1992 - 05/1993	1
82345 - DIODE
82345-32010	ST191..JPP..GL;AT190,CT190..JPP TYPE B:REFER TO ILLUSTRATION	03/1992 - 05/1993	1
82666A - HOLDER, CONNECTOR NO.2
82666-20050	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/2999	1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-20890	ST191..JPP..GL;AT190,CT190..JPP	03/1992 - 05/1993	1
82821A - COVER, CONNECTOR
82821-20270	CT190..JPP	03/1992 - 05/1993	1
82821-20240	AT190,CT190,ST191..JPP..LHD	05/1993 - 09/1993	1
82821-20270	AT190,CT190,ST191..JPP..LHD	09/1993 - 12/2999	1
Common parts
82711-2B870
90119-06390
90179-06026
93567-55016
Linked diagrams
8401

ILLUST NO. 6 OF10(9203- )JPP

Click highlighted areas on diagram

DOOR,ROOF

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2D600	AT190,CT190,ST191..JPP..GL W(4 SPEAKERS) OR W(6 SPEAKERS)	03/1992 - 06/1992	1
82151-2D460	AT190,CT190,ST191..JPP..LHD W(*EL W/INTERLINKING KNOB)	03/1992 - 02/1994	1
82151-2D520	ST191..JPP..GL;AT190,CT190..JPP..LHD W(2 SPEAKER)	03/1992 - 02/1994	1
82151-2D480	AT190,CT190,ST191..JPP..LHD W(*EL W/KEY-CONFINE PREVENTION FUNCTION)	03/1992 - 02/1994	1
82151-2D520	CT190..JPP W(2 SPEAKERS) OR W(4 SPEAKERS)	02/1994 - 01/1996	1
82151-2D440	AT190,CT190,ST191..JPP..LHD W(ELECTRIC *RCM)	03/1992 - 04/1997	1
82152 - WIRE, FRONT DOOR, LH
82152-2D410	CT190..JPP W(4 SPEAKERS)	03/1992 - 06/1992	1
82152-2D230	AT190,CT190,ST191..JPP..LHD W(2 SPEAKERS)	03/1992 - 02/1994	1
82152-2D290	AT190,CT190,ST191..JPP..LHD W(*EL W/INTERLINKING KNOB & FRONT DOOR SPEAKER)	03/1992 - 02/1994	1
82152-2D280	AT190,CT190,ST191..JPP..LHD W(*EL W/INTERLINKING KNOB)	03/1992 - 02/1994	1
82152-2D320	AT190,CT190,ST191..JPP..LHD W(*EL W/KEY-CONFINE PREVENTION FUNCTION & FRONT DOOR SPEAKER)	03/1992 - 02/1994	1
82152-2D870	AT190,CT190..JPP..LHD W(EL W/KEY-CONFINE PREVENTION FUNCTION);W(EL W/KEY-CONFINE PREVENTION FUNCTION & ELECTRIC *RCM)	02/1994 - 01/1996	1
82152-2D270	CT190..JPP W(ELECTRIC *RCM & 6 SPEAKERS)	03/1992 - 02/1994	1
82152-2D310	AT190,CT190,ST191..JPP..LHD W(*EL)	03/1992 - 02/1994	1
82153 - WIRE, REAR DOOR, NO.1
82153-20340	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/INTERLINKING KNOB)	03/1992 - 02/1994	1
82153-21010	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION)	05/1993 - 02/1994	1
82153-20320	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION)	03/1992 - 05/1993	1
82153-20330	ST191..JPP..GL;AT190,CT190..JPP	03/1992 - 02/1994	1
82154 - WIRE, REAR DOOR, NO.2
82154-20270	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/INTERLINKING KNOB)	03/1992 - 02/1994	1
82154-20340	ST191..JPP..GL;AT190,CT190..JPP	03/1992 - 02/1994	1
82154-21010	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION)	05/1993 - 02/1994	1
82154-20330	ST191..JPP..GL;AT190,CT190..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION)	03/1992 - 05/1993	1
82171 - WIRE, ROOF, NO.1
82171-20690	AT190,CT190,ST191..JPP..LHD W(MOON ROOF)	03/1992 - 02/1994	1
82171-20680	AT190,CT190,ST191..JPP..LHD..GL	03/1992 - 04/1997	1
82171 - WIRE, ROOF, NO.1
82171-20690	AT190,CT190,ST191..JPP..LHD W(MOON ROOF)	03/1992 - 02/1994	1
82171-20680	AT190,CT190,ST191..JPP..LHD..GL	03/1992 - 04/1997	1
82351D - WIRE, COURTESY LAMP SWITCH (FOR FRONT LH DOOR)
82351-20010	ST191..JPP..GL;AT190,CT190..JPP	03/1992 - 02/1994	1
Common parts
82819-20360
90480-40014
90480-45007

ILLUST NO. 7 OF10(9203- )JPP..LHD

Click highlighted areas on diagram

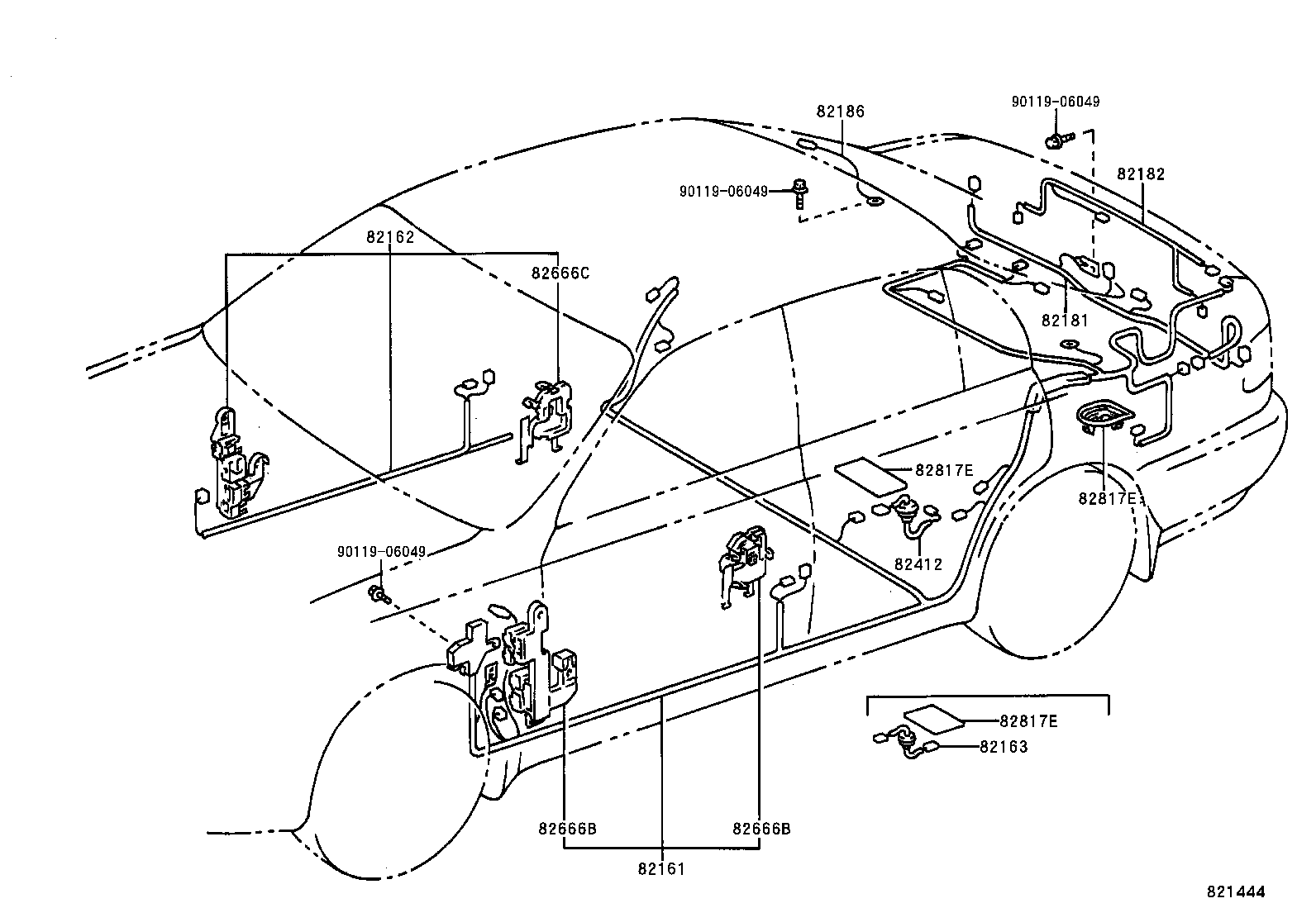

FLOOR, LUGGAGE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2H421	AT190,CT190,ST191..JPP..LHD	05/1993 - 02/1994	1
82161-2H420	AT190,CT190,ST191..JPP..LHD	03/1992 - 05/1993	1
82162 - WIRE, FLOOR, NO.2
82162-20590	AT190,CT190,ST191..JPP..LHD	03/1992 - 05/1993	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20840	AT190,CT190,ST191..JPP..LHD	03/1992 - 02/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-20310	AT190,CT190,ST191..JPP..LHD	03/1992 - 02/1994	1
82182-20320	AT190,CT190,ST191..JPP..LHD LICENSE PLATE(550X130)	03/1992 - 02/1994	1
82186 - WIRE, REAR WINDOW, NO.1
82186-20070	AT190,CT190..JPP;ST191..JPP..SED..GL	03/1992 - 07/1996	1
82412 - WIRE, FUEL GAGE
82412-20100	ST191..JPP..GL;AT190,CT190..JPP	03/1992 - 02/1994	1
82666B - HOLDER, CONNECTOR NO.3
82666-20100	AT190,CT190,ST191..JPP..LHD I/P WIRE	03/1992 - 02/1994	1
82666-20020	AT190,CT190,ST191..JPP..LHD CTR PILLAR LH	02/1994 - 12/2999	1
82666-20020	AT190,CT190,ST191..JPP..LHD LH	03/1992 - 02/1994	1
82666-20100	AT190,CT190,ST191..JPP..LHD COWL SIDE LH	02/1994 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-20100	AT190,CT190,ST191..JPP..LHD I/P WIRE	03/1992 - 02/1994	1
82666-20020	AT190,CT190,ST191..JPP..LHD CTR PILLAR LH	02/1994 - 12/2999	1
82666-20020	AT190,CT190,ST191..JPP..LHD LH	03/1992 - 02/1994	1
82666-20100	AT190,CT190,ST191..JPP..LHD COWL SIDE LH	02/1994 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-20010	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-2B860	AT190,CT190..JPP;ST191..JPP..SED..GL	03/1992 - 02/1994	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-2B860	AT190,CT190..JPP;ST191..JPP..SED..GL	03/1992 - 02/1994	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-2B860	AT190,CT190..JPP;ST191..JPP..SED..GL	03/1992 - 02/1994	1
Common parts
90119-06049

ILLUST NO. 8 OF10(9203- )JPP

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
82711-24420
90119-06390

ILLUST NO. 9 OF10(9203- )JPP

Click highlighted areas on diagram

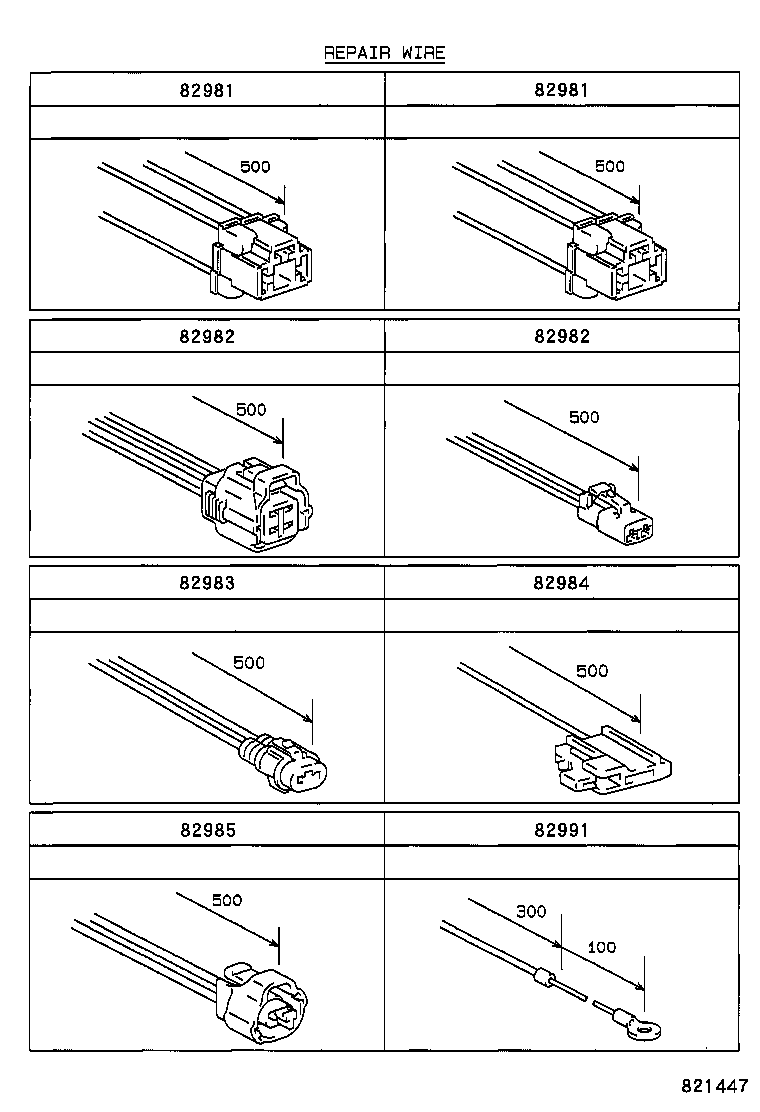

REPAIR

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-20060	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/2999	1
82981 - WIRE, HEADLAMP REPAIR
82981-20060	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/2999	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-20100	AT190,CT190,ST191..JPP..SED	03/1992 - 02/1994	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-20100	AT190,CT190,ST191..JPP..SED	03/1992 - 02/1994	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
82984 - WIRE, HORN REPAIR
82984-20010	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20100	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1

ILLUST NO.10 OF10(9203- )JPP

Click highlighted areas on diagram

INSTRUMENT PANEL WIRE SPEC LIST

Part #	Description	Period	Qty	Price
