CT190L-AEPNS (1992)
Toyota Corona (Sed/Lb)
Production
Mar 1992
-
Jan 1996
Engine
2C
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9203- )JPP

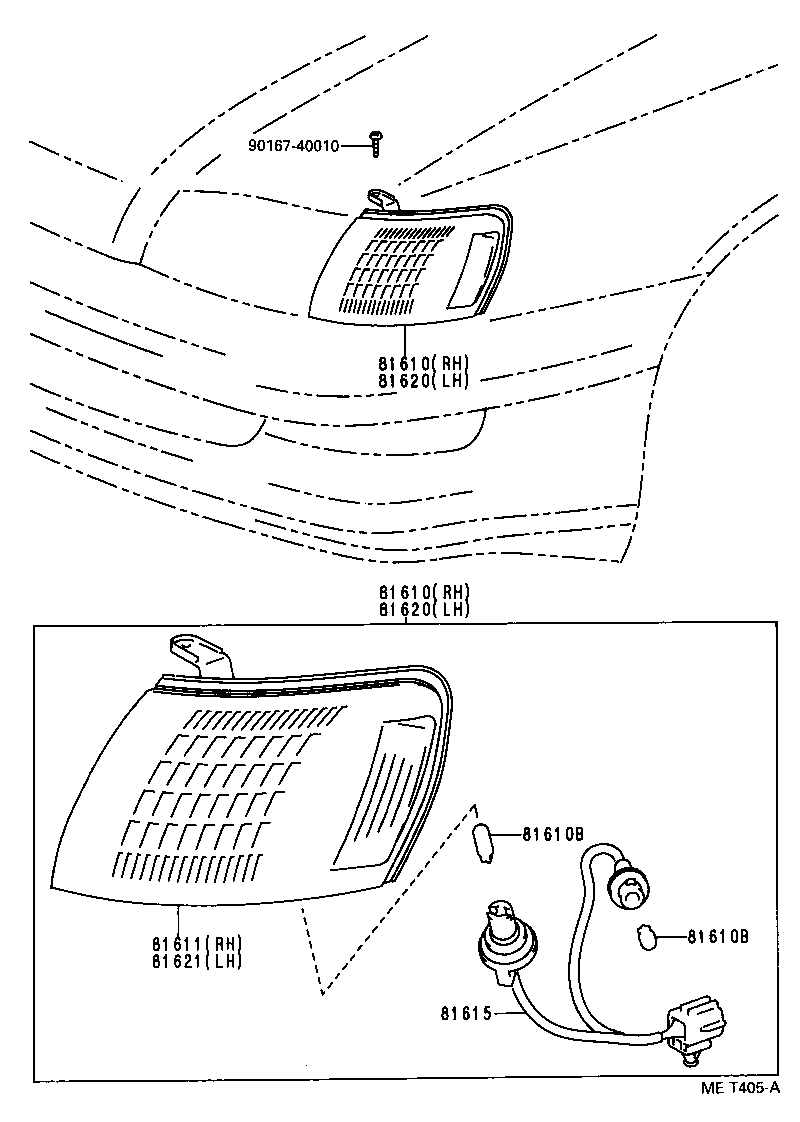

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT190,CT190..JPP;ST191..JPP..SED..GL 12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT190,CT190..JPP;ST191..JPP..SED..GL 12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-20530 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| Common parts | ||||
| 90167-40010 | ||||
