Toyota Corona (sed/lb) AT190 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
CORONA (SED/LB)
AT190R-AEPNK (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AT190R-AEPNK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jul 1996

Engine 4AFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9203- )JPP..RHD

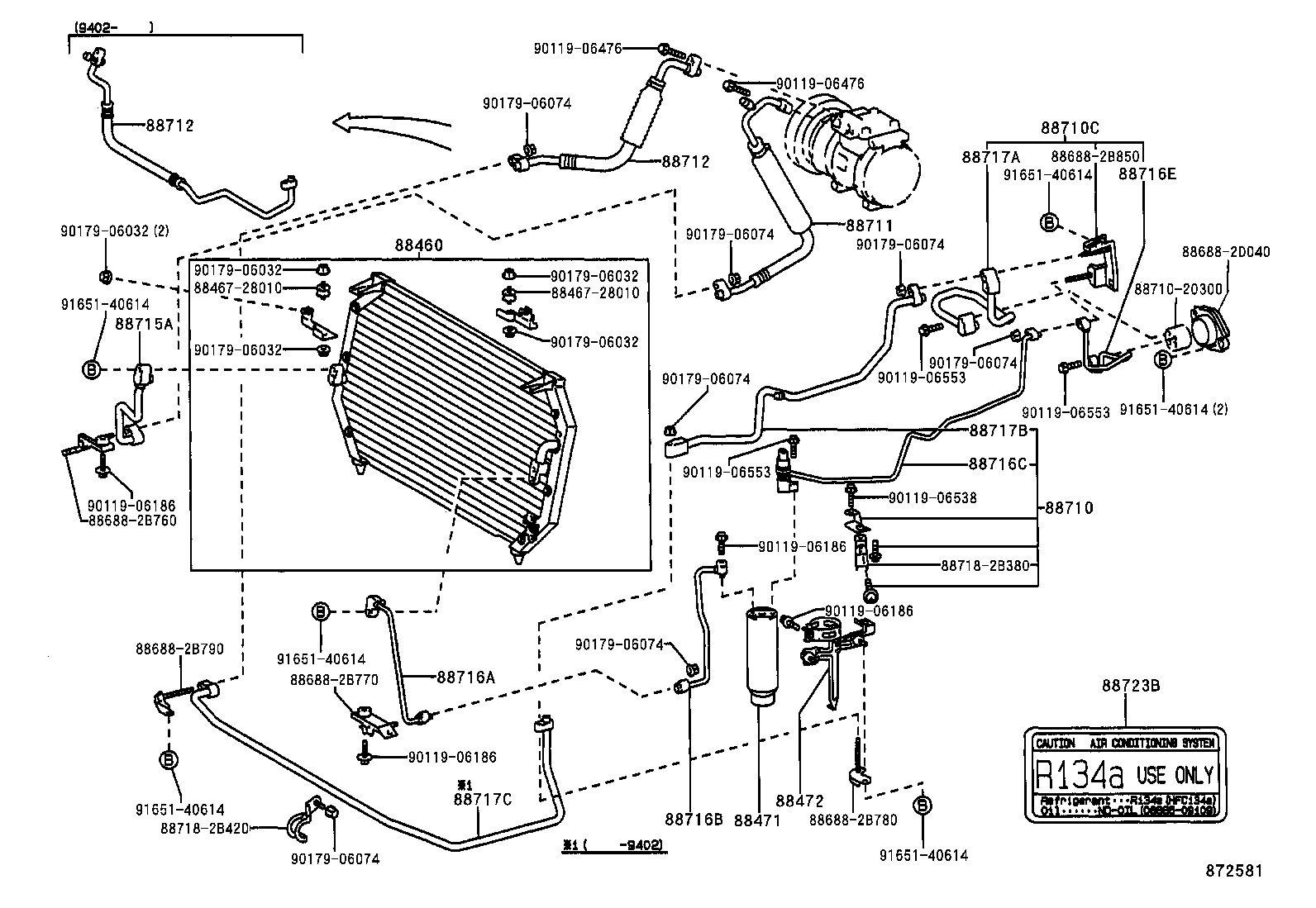

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-20370	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 01/1995	1
88460-20370	AT190,ST191..JPP	01/1995 - 06/1996	1
88460-20370	AT190,ST191..JPP	06/1996 - 07/1996	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	AT190,ST191..JPP	06/1996 - 07/1996	1
88471-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20110	AT190..JPP..RHD W(HEATER) & DEALER OPT	03/1992 - 12/1992	1
88472-20160	AT190..JPP..RHD W(AIR CONDITONER)	03/1992 - 05/1992	1
88472-20160	AT190..JPP..RHD	05/1992 - 12/1992	1
88472-20110	AT190..JPP..RHD DEALER OPITON	12/1992 - 02/1994	1
88472-20160	AT190..JPP..RHD	02/1994 - 07/1996	1
88472-20160	AT190..JPP..RHD MOP OR DOP OR BOOST VENTILATOR	12/1992 - 02/1994	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-20230	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88710-20230	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20250	AT190,ST191..JPP..RHD..GL	07/1993 - 06/1996	1
88710-20250	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88710-20250	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPT	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..RHD..GL;AT190..JPP..LHD..MTM..XL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88711-2B300	AT190..JPP DEALER OPTION	01/1996 - 07/1996	1
88711-2B300	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL---DEALER OPT	02/1994 - 01/1996	1
88711-2B121	AT190..JPP..RHD..GL W(*TAC)	01/1995 - 01/1996	1
88711-2B121	AT190..JPP MAKER OPTION	01/1996 - 07/1996	1
88711-2B120	AT190..JPP MAKER OPT & BOOST VENTILATOR	02/1993 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B780	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL & DOP	02/1994 - 07/1996	1
88712-2B810	AT190..JPP..RHD..GL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88712-2B810	AT190..JPP..RHD	01/1995 - 07/1996	1
88712-2B210	AT190..JPP..RHD	03/1992 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B780	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL & DOP	02/1994 - 07/1996	1
88712-2B810	AT190..JPP..RHD..GL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88712-2B810	AT190..JPP..RHD	01/1995 - 07/1996	1
88712-2B210	AT190..JPP..RHD	03/1992 - 02/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88715-20120	AT190,ST191..JPP	06/1996 - 07/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	AT190,ST191..JPP	06/1996 - 07/1996	1
88716-2D140	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D180	AT190..JPP..RHD	03/1992 - 02/1994	1
88716-2D181	AT190..JPP..RHD	02/1994 - 07/1996	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT	07/1993 - 02/1994	1
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT OR W(66 & BV) OR W(*66) & MAKER OPT	02/1994 - 01/1995	1
88710-20370	AT190,ST191..JPP..RHD DEALER OPT OR W(*66) & MAKER OPT	06/1996 - 07/1996	1
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT OR W(*66) & MAKER OPT	01/1995 - 06/1996	1
88710-20370	AT190,ST191..JPP..RHD DEALER OPT	03/1992 - 07/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88716-2D170	AT190,ST191..JPP..RHD..GL W(66 & BV) OR W(*66) & MAKER OPT OR DEALER OPT	07/1993 - 01/1995	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT OR *BV	07/1993 - 01/1995	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT	06/1996 - 07/1996	1
88716-2D170	AT190,ST191..JPP..RHD..GL	01/1995 - 06/1996	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT	01/1995 - 06/1996	1
88716-2D170	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88717-2B230	AT190,ST191..JPP..RHD..GL W(66 & BV) OR W(*66) & MAKER OPT OR DEALER OPT	07/1993 - 01/1995	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT OR *BV	07/1993 - 01/1995	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT	01/1995 - 06/1996	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT	06/1996 - 07/1996	1
88717-2B230	AT190,ST191..JPP..RHD..GL	01/1995 - 06/1996	1
88717-2B230	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B280	AT190,ST191..JPP..RHD DEALER OPTION	03/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD MAKER OPTION	03/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717-2B160	AT190,ST191..JPP..RHD	05/1992 - 06/1996	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B220	AT190,ST191..JPP..RHD	03/1992 - 04/1993	1
88717-2B220	AT190,ST191..JPP..RHD DEALER OPT	04/1993 - 07/1993	1
88717-2B220	AT190,ST191..JPP..RHD..GL DEALER OPT OR *BV & DEALER OPT	07/1993 - 02/1994	1
88717-2B221	AT190,ST191..JPP..RHD MAKER OPT OR BOOST VENTILATOR	04/1993 - 02/1994	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88723-20040	AT190,ST191..JPP	06/1996 - 07/1996	1
Common parts
88467-28010
88688-2B760
88688-2B770
88688-2B780
88688-2B790
88688-2B850
88688-2D040
88710-20300
88718-2B380
88718-2B420
90119-06186
90119-06476
90119-06538
90119-06553
90179-06032
90179-06074
91651-40614

(9203- )JPP..RHD

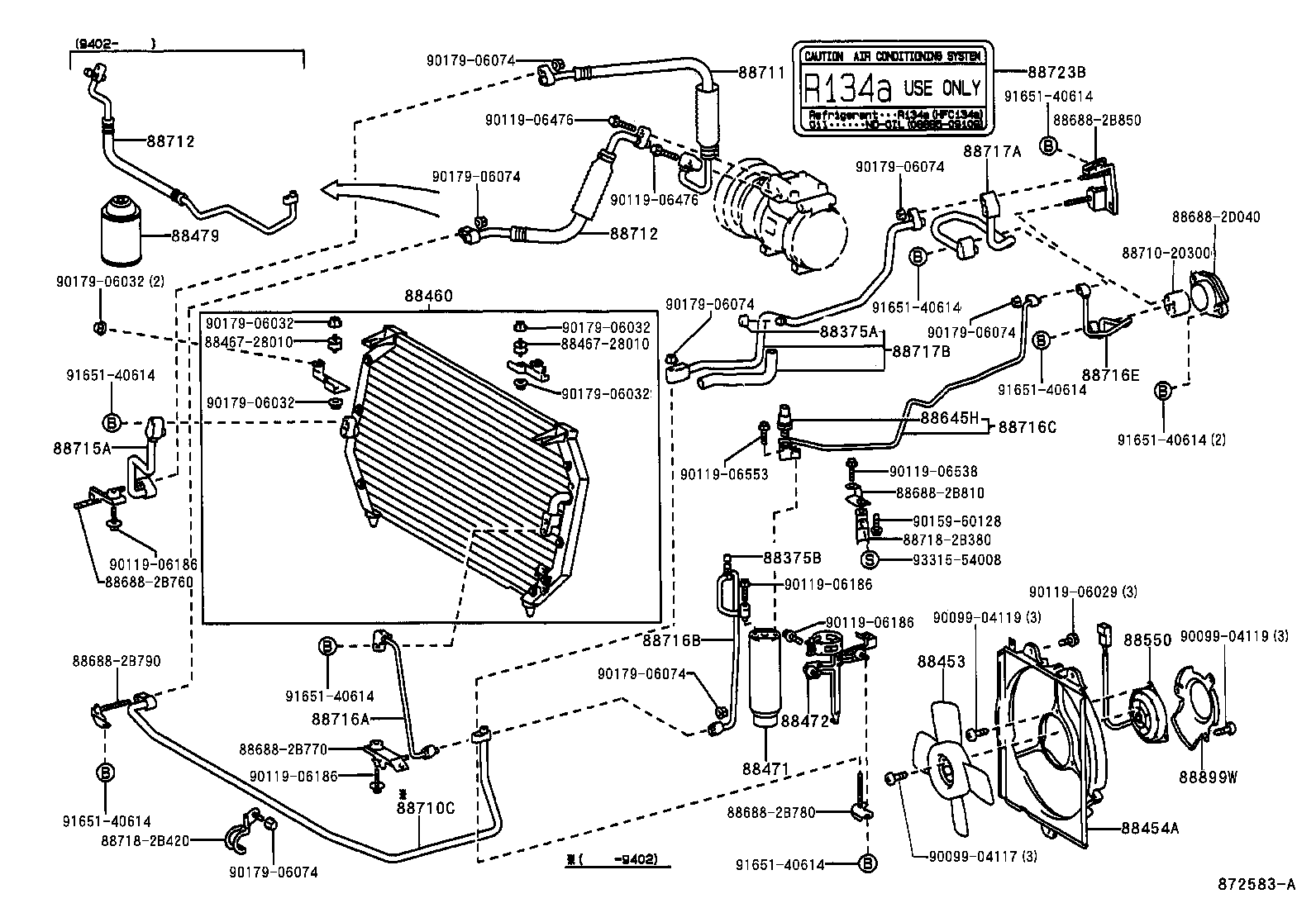

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	04/1992 - 02/1994	1
88375-30280	AT190,ST191..JPP	03/1992 - 04/1992	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20040	AT190,ST191..JPP DEALER OPT	03/1992 - 02/1994	1
88453-20080	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88453-20080	AT190,ST191..JPP	01/1995 - 06/1996	1
88453-20080	AT190,ST191..JPP	06/1996 - 07/1996	1
88453-20080	AT190,ST191..JPP MAKER OPT OR DEALER OPT	03/1992 - 02/1994	1
88454A - SHROUD, FAN
88454-20020	AT190,ST191..JPP	06/1996 - 07/1996	1
88454-20020	AT190,ST191..JPP	03/1992 - 06/1996	1
88460 - CONDENSER ASSY, COOLER
88460-20370	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 01/1995	1
88460-20370	AT190,ST191..JPP	01/1995 - 06/1996	1
88460-20370	AT190,ST191..JPP	06/1996 - 07/1996	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	AT190,ST191..JPP	06/1996 - 07/1996	1
88471-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20110	AT190..JPP..RHD W(HEATER) & DEALER OPT	03/1992 - 12/1992	1
88472-20160	AT190..JPP..RHD W(AIR CONDITONER)	03/1992 - 05/1992	1
88472-20160	AT190..JPP..RHD	05/1992 - 12/1992	1
88472-20110	AT190..JPP..RHD DEALER OPITON	12/1992 - 02/1994	1
88472-20160	AT190..JPP..RHD	02/1994 - 07/1996	1
88472-20160	AT190..JPP..RHD MOP OR DOP OR BOOST VENTILATOR	12/1992 - 02/1994	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	AT190,ST191..JPP 250G	06/1996 - 07/1996	3
90986-02007	AT190,CT190,ST191..JPP 250G	05/1992 - 06/1996	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 09/1994	1
88550-12130	AT190,ST191..JPP DEALER OPTION	09/1994 - 06/1996	1
16363-46030	AT190,ST191..JPP	09/1994 - 06/1996	1
16363-46030	AT190,ST191..JPP	06/1996 - 07/1996	1
88550-12130	AT190,ST191..JPP DEALER OPTION	06/1996 - 07/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88645-20050	AT190,ST191..JPP	06/1996 - 07/1996	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20250	AT190,ST191..JPP..RHD..GL	07/1993 - 06/1996	1
88710-20250	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88710-20250	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPT	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..RHD..GL;AT190..JPP..LHD..MTM..XL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88711-2B300	AT190..JPP DEALER OPTION	01/1996 - 07/1996	1
88711-2B300	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL---DEALER OPT	02/1994 - 01/1996	1
88711-2B121	AT190..JPP..RHD..GL W(*TAC)	01/1995 - 01/1996	1
88711-2B121	AT190..JPP MAKER OPTION	01/1996 - 07/1996	1
88711-2B120	AT190..JPP MAKER OPT & BOOST VENTILATOR	02/1993 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B780	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL & DOP	02/1994 - 07/1996	1
88712-2B810	AT190..JPP..RHD..GL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88712-2B810	AT190..JPP..RHD	01/1995 - 07/1996	1
88712-2B210	AT190..JPP..RHD	03/1992 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B780	AT190..JPP..RHD..GL PUSH TYPE HEATER PANEL & DOP	02/1994 - 07/1996	1
88712-2B810	AT190..JPP..RHD..GL MOP OR DOP OR BOOST VENTILATOR	02/1994 - 01/1995	1
88712-2B810	AT190..JPP..RHD	01/1995 - 07/1996	1
88712-2B210	AT190..JPP..RHD	03/1992 - 02/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88715-20120	AT190,ST191..JPP	06/1996 - 07/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	AT190,ST191..JPP	06/1996 - 07/1996	1
88716-2D140	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D180	AT190..JPP..RHD	03/1992 - 02/1994	1
88716-2D181	AT190..JPP..RHD	02/1994 - 07/1996	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT	07/1993 - 02/1994	1
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT OR W(66 & BV) OR W(*66) & MAKER OPT	02/1994 - 01/1995	1
88710-20370	AT190,ST191..JPP..RHD DEALER OPT OR W(*66) & MAKER OPT	06/1996 - 07/1996	1
88710-20370	AT190,ST191..JPP..RHD..GL DEALER OPT OR W(*66) & MAKER OPT	01/1995 - 06/1996	1
88710-20370	AT190,ST191..JPP..RHD DEALER OPT	03/1992 - 07/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88716-2D170	AT190,ST191..JPP..RHD..GL W(66 & BV) OR W(*66) & MAKER OPT OR DEALER OPT	07/1993 - 01/1995	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT OR *BV	07/1993 - 01/1995	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT	06/1996 - 07/1996	1
88716-2D170	AT190,ST191..JPP..RHD..GL	01/1995 - 06/1996	1
88716-2D220	AT190,ST191..JPP..RHD MAKER OPT	01/1995 - 06/1996	1
88716-2D170	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230	AT190,ST191..JPP..RHD	03/1992 - 07/1993	1
88717-2B230	AT190,ST191..JPP..RHD..GL W(66 & BV) OR W(*66) & MAKER OPT OR DEALER OPT	07/1993 - 01/1995	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT OR *BV	07/1993 - 01/1995	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT	01/1995 - 06/1996	1
88717-2B450	AT190,ST191..JPP..RHD MAKER OPT	06/1996 - 07/1996	1
88717-2B230	AT190,ST191..JPP..RHD..GL	01/1995 - 06/1996	1
88717-2B230	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B280	AT190,ST191..JPP..RHD DEALER OPTION	03/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD MAKER OPTION	03/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD	06/1996 - 07/1996	1
88717-2B160	AT190,ST191..JPP..RHD	05/1992 - 06/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88723-20040	AT190,ST191..JPP	06/1996 - 07/1996	1
88899W - SUPPORT SUB-ASSY, B
88899-20270	AT190,ST191..JPP	06/1996 - 07/1996	1
88899-20270	AT190,ST191..JPP	02/1994 - 06/1996	1
Common parts
88467-28010
88688-2B760
88688-2B770
88688-2B780
88688-2B790
88688-2B810
88688-2B850
88688-2D040
88710-20300
88718-2B380
88718-2B420
90099-04117
90099-04119
90119-06029
90119-06186
90119-06476
90119-06538
90119-06553
90159-60128
90179-06032
90179-06074
91651-40614
93315-54008

AT190R-AEPNK (1992)

(9203- )JPP..RHD

(9203- )JPP..RHD

Part Price Details
