Toyota Corona (sed/lb) AT190 FRONT TURN SIGNAL LAMP

AT190R-AEMDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996

Engine 4AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

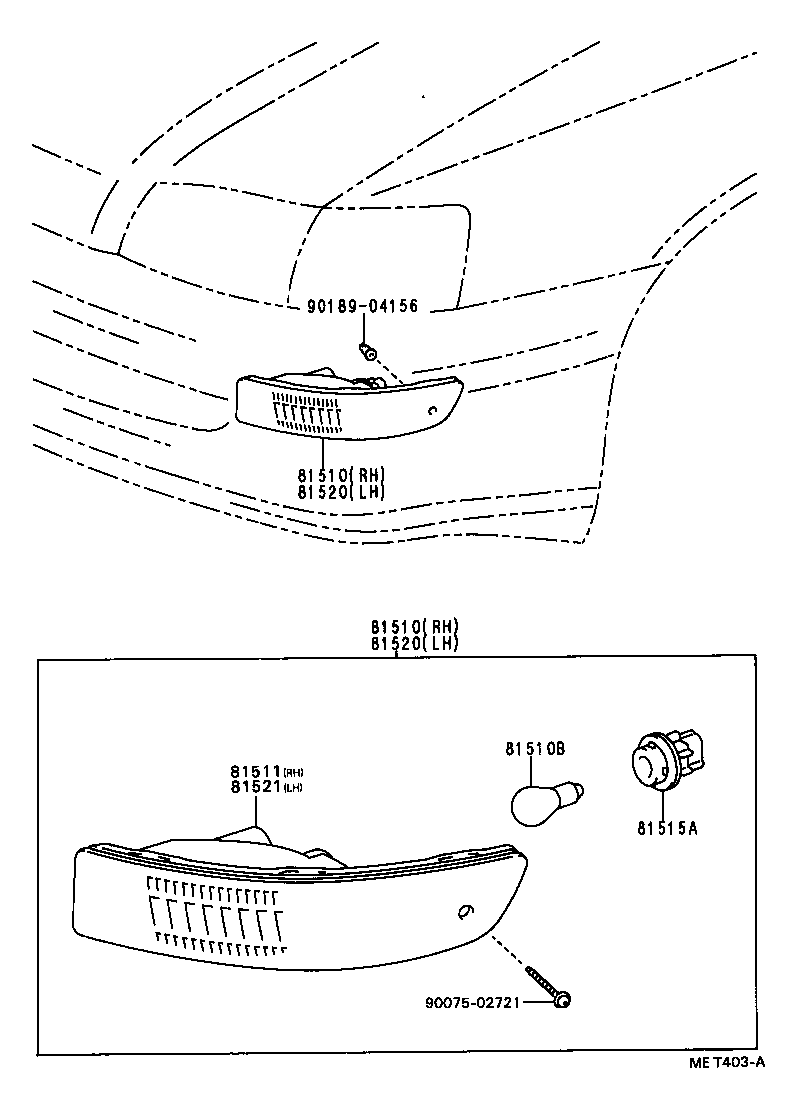

(9203- )JPP..SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT190,ST191..JPP 12V 21W	03/1992 - 06/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81511-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81511-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078	AT190,CT190,ST191..JPP	03/1992 - 06/1996	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81521-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
Common parts
90075-02721
90189-04156

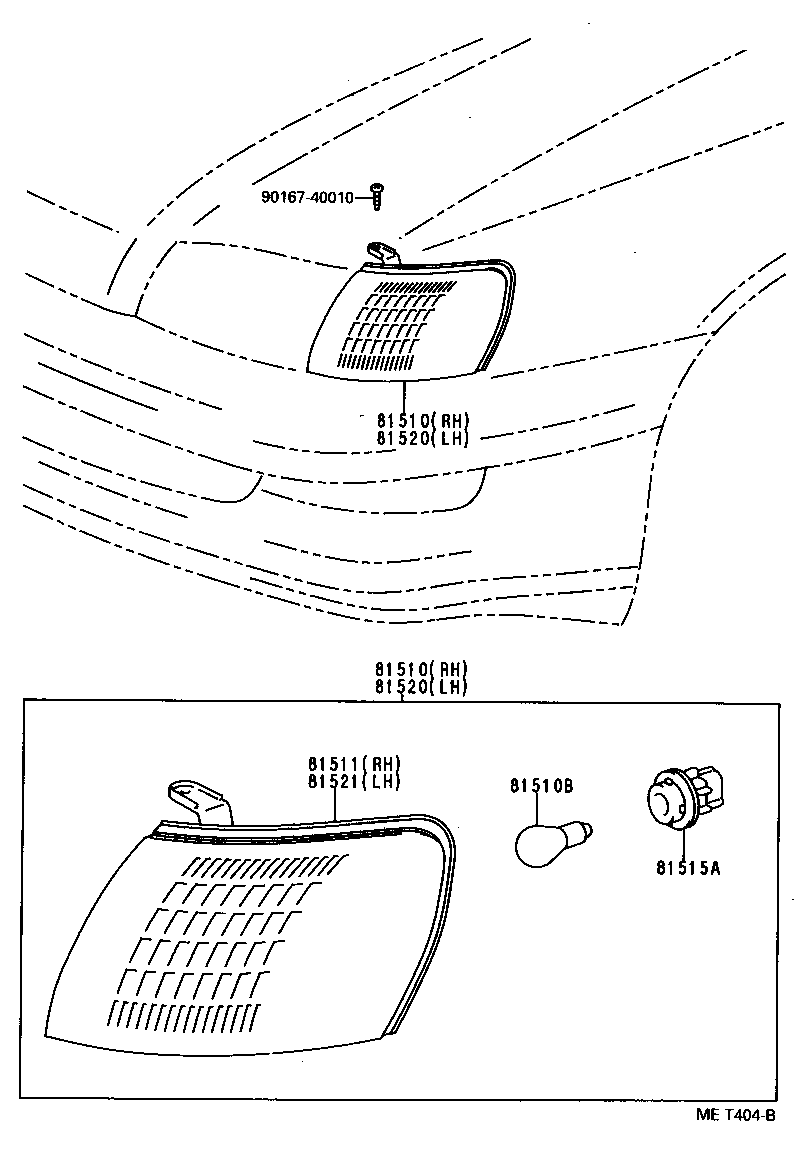

(9203- )JPP

Click highlighted areas on diagram

LICENCE PLATE(550*130)

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT190,ST191..JPP 12V 21W	03/1992 - 06/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81511-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81511-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078	AT190,CT190,ST191..JPP	03/1992 - 06/1996	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81521-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
Common parts
90167-40010

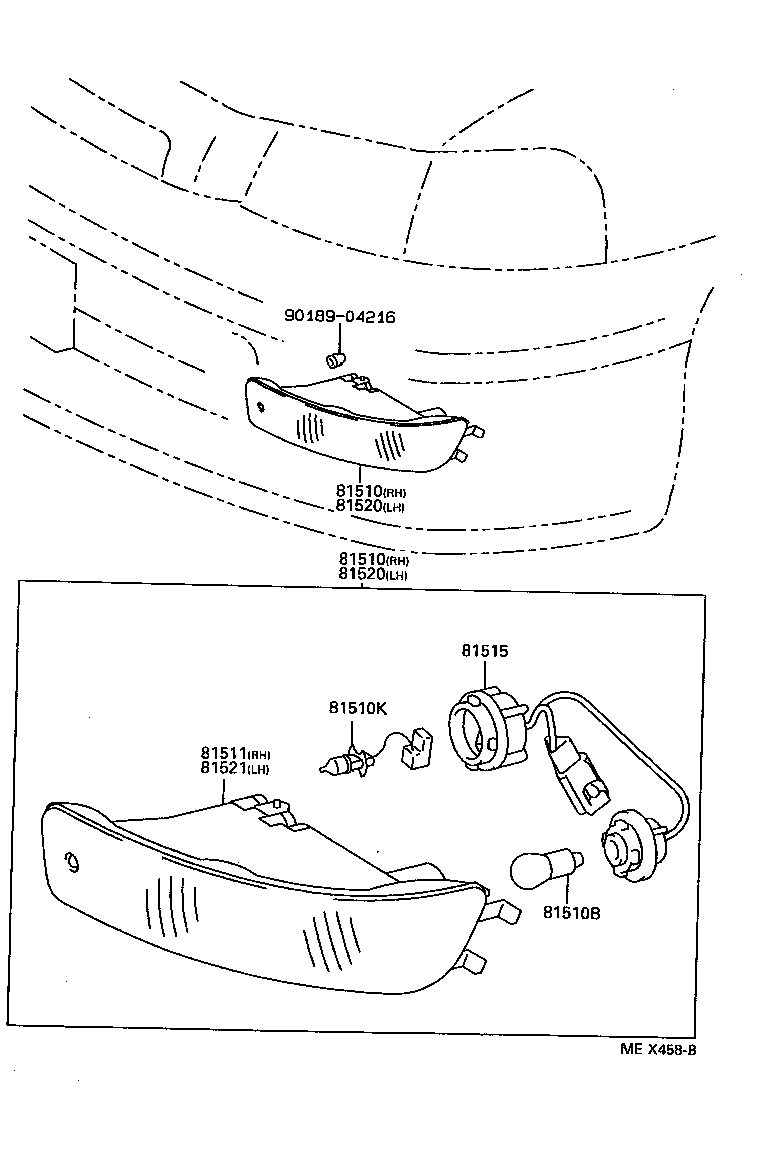

(9402- )JPP..SED

Click highlighted areas on diagram

W(FOG LAMP)

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT190,ST191..JPP 12V 21W	03/1992 - 06/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81511-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81511-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81521-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
Common parts
90189-04216

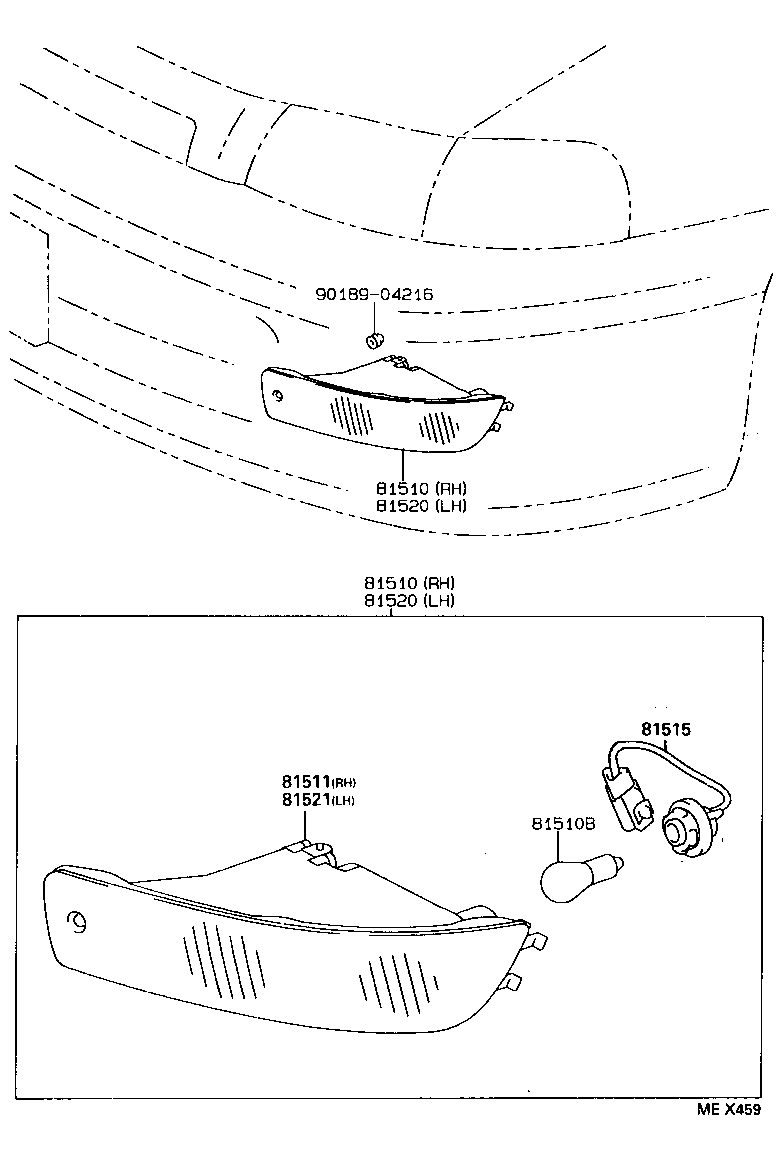

(9402- )JPP..SED

Click highlighted areas on diagram

W/O(FOG LAMP)

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81510-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81510-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT190,ST191..JPP 12V 21W	03/1992 - 06/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20660	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81511-20650	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81511-20720	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
81520-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81520-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20700	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	02/1994 - 01/1996	1
81521-20650	ST191..JPP..LB;AT190,ST191..JPP..RHD..XL	03/1992 - 06/1996	1
81521-20640	AT190..JPP..RHD..XL LICENSE PLATE(390X170)	03/1992 - 02/1994	1
Common parts
90189-04216

AT190R-AEMDK (1992)

(9203- )JPP..SED

(9203- )JPP

(9402- )JPP..SED

(9402- )JPP..SED
