Toyota Corona (sed/lb) AT190 BRAKE TUBE & CLAMP

AT190R-AEMDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996

Engine 4AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9203- )JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-16050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20840	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10193	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20310	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20610	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02695	AT190,CT190,ST191..JPP RH	03/1992 - 02/1994	1
90947-02743	AT190,CT190,ST191..JPP LH	02/1994 - 01/1996	1
90947-02696	AT190,CT190,ST191..JPP LH	03/1992 - 02/1994	1
90947-02742	AT190,CT190,ST191..JPP RH	02/1994 - 01/1996	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02695	AT190,CT190,ST191..JPP RH	03/1992 - 02/1994	1
90947-02743	AT190,CT190,ST191..JPP LH	02/1994 - 01/1996	1
90947-02696	AT190,CT190,ST191..JPP LH	03/1992 - 02/1994	1
90947-02742	AT190,CT190,ST191..JPP RH	02/1994 - 01/1996	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10045	AT190,CT190,ST191..JPP	03/1992 - 06/1996	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	AT190,CT190,ST191..JPP	03/1992 - 06/1996	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	AT190,CT190,ST191..JPP	03/1992 - 06/1996	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20480	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20550	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02634	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02634	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02694	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02694	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47321 - TUBE, REAR BRAKE, NO.1
47321-20340	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47322 - TUBE, REAR BRAKE, NO.2
47322-20460	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47323 - TUBE, REAR BRAKE, NO.3
47323-20130	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47324 - TUBE, REAR BRAKE, NO.4
47324-20130	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20311	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20410	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
47371-20411	AT190,CT190,ST191..JPP	08/1992 - 12/1994	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-20380	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20370	AT190,ST191..JPP..RHD	03/1992 - 03/1993	1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20290	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20350	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
Common parts
90119-06746
90129-08007
90179-06158
90468-08035
90480-01629
90949-01806
91611-60640
91651-B0614
91656-B0625

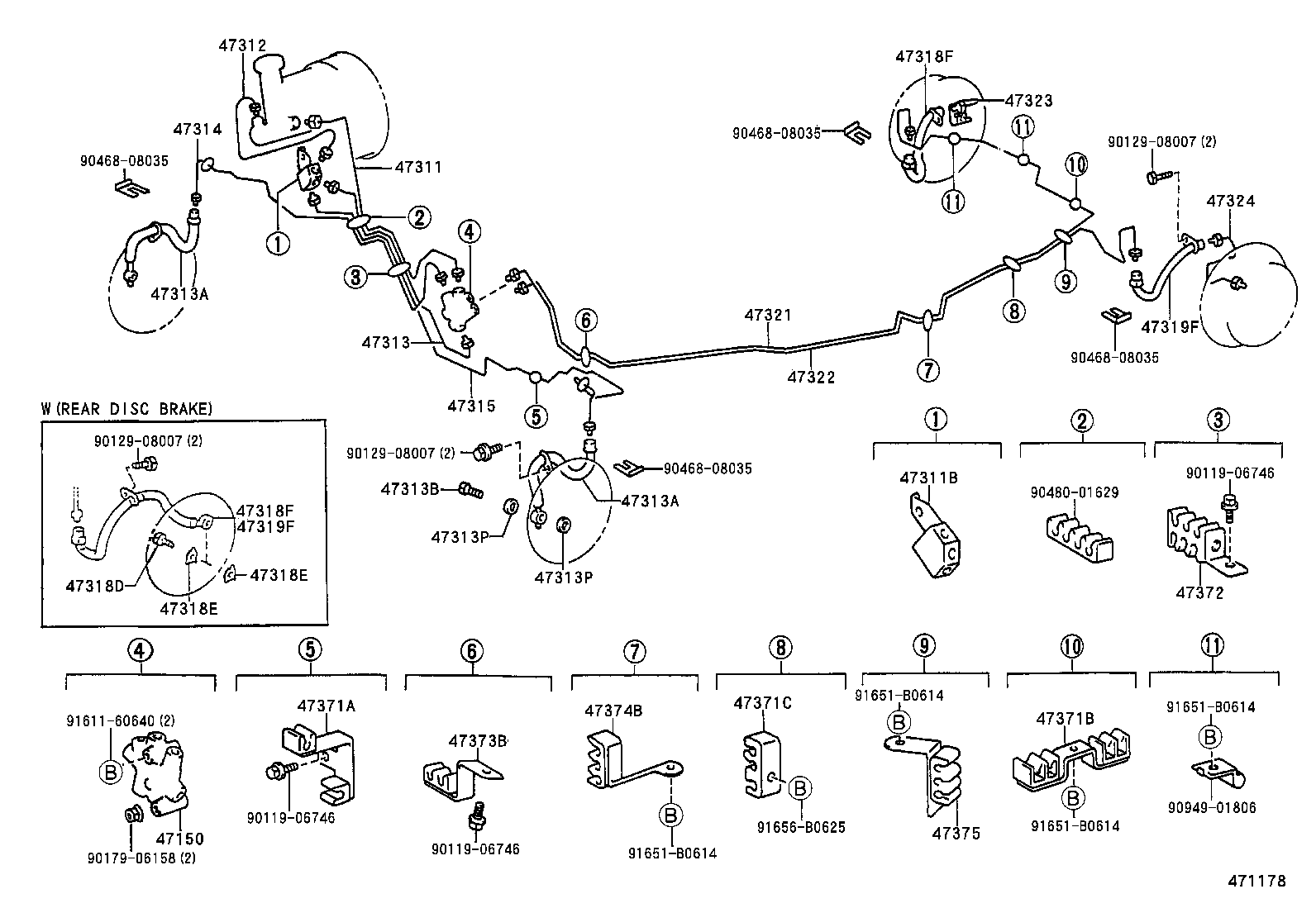

ILLUST NO. 1 OF 2(9203- )JPP..RHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-16050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20840	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20610	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02695	AT190,CT190,ST191..JPP RH	03/1992 - 02/1994	1
90947-02743	AT190,CT190,ST191..JPP LH	02/1994 - 01/1996	1
90947-02696	AT190,CT190,ST191..JPP LH	03/1992 - 02/1994	1
90947-02742	AT190,CT190,ST191..JPP RH	02/1994 - 01/1996	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02695	AT190,CT190,ST191..JPP RH	03/1992 - 02/1994	1
90947-02743	AT190,CT190,ST191..JPP LH	02/1994 - 01/1996	1
90947-02696	AT190,CT190,ST191..JPP LH	03/1992 - 02/1994	1
90947-02742	AT190,CT190,ST191..JPP RH	02/1994 - 01/1996	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10045	AT190,CT190,ST191..JPP	03/1992 - 06/1996	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	AT190,CT190,ST191..JPP	03/1992 - 06/1996	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	AT190,CT190,ST191..JPP	03/1992 - 06/1996	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20480	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20550	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02634	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02634	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02694	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02694	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47321 - TUBE, REAR BRAKE, NO.1
47321-20340	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47322 - TUBE, REAR BRAKE, NO.2
47322-20460	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47323 - TUBE, REAR BRAKE, NO.3
47323-20130	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47324 - TUBE, REAR BRAKE, NO.4
47324-20130	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20311	AT190,ST191..JPP..RHD	03/1992 - 06/1996	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20410	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
47371-20411	AT190,CT190,ST191..JPP	08/1992 - 12/1994	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-20380	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20370	AT190,ST191..JPP..RHD	03/1992 - 03/1993	1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20290	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20350	AT190,CT190,ST191..JPP	03/1992 - 08/1992	1
Common parts
90119-06746
90129-08007
90179-06158
90461-06055
90468-08035
90480-01556
90480-01628
90949-01806
91611-60640
91651-B0614
91656-B0625

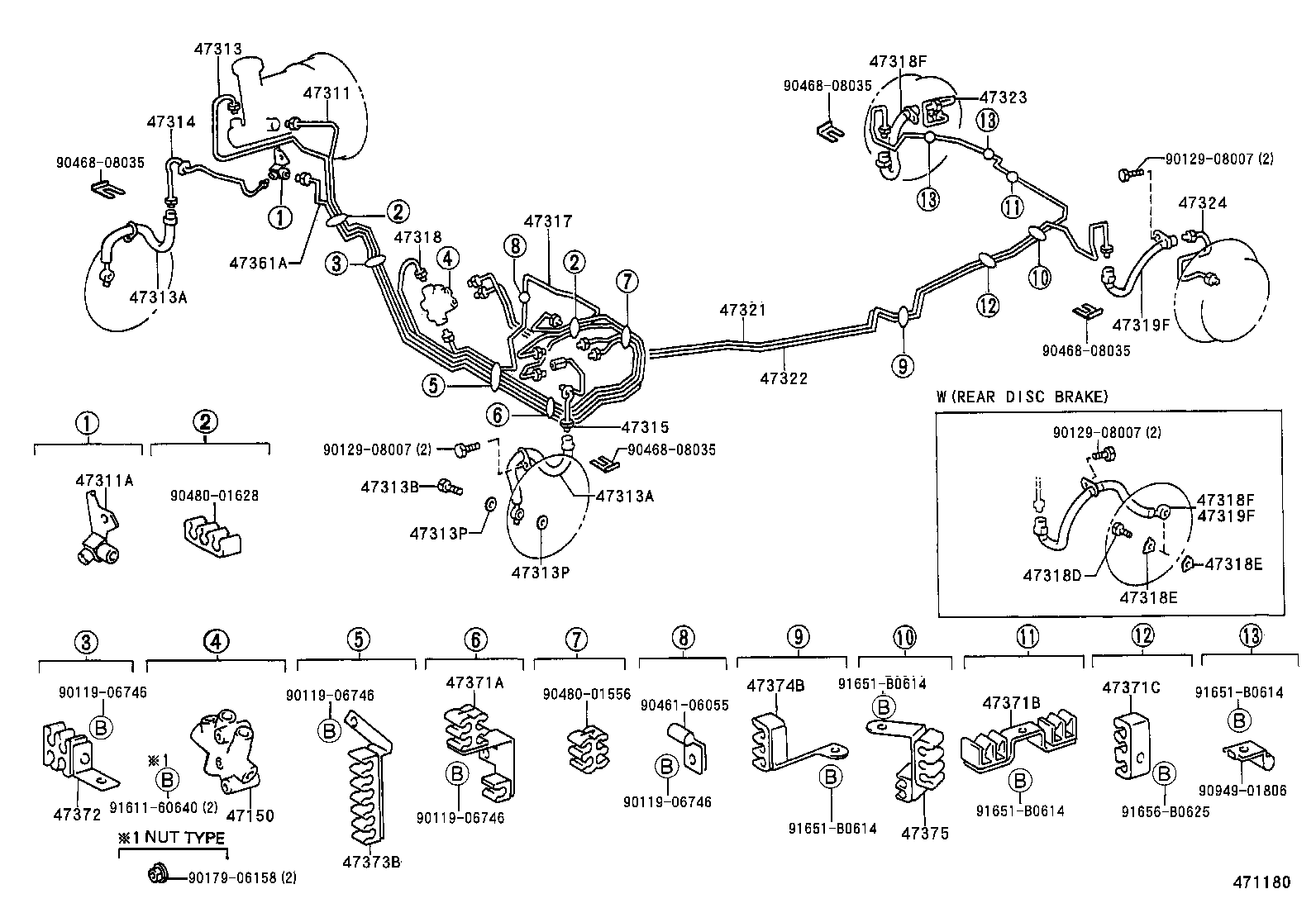

ILLUST NO. 2 OF 2(9203- )JPP..RHD

Click highlighted areas on diagram

W(ABS)

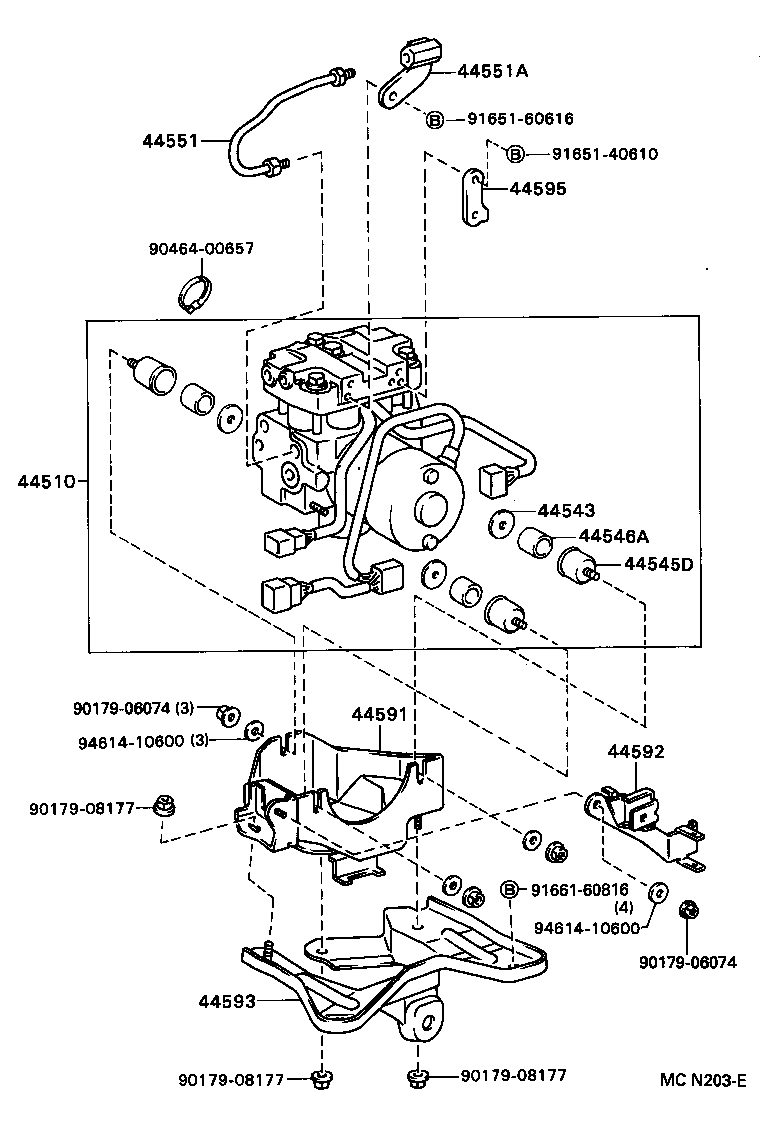

Part #	Description	Period	Qty	Price
Common parts
90179-06074
90179-08177
90464-00657
91651-40610
91651-60616
91661-60816
94614-10600
