AT190L-AEPDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )JPP

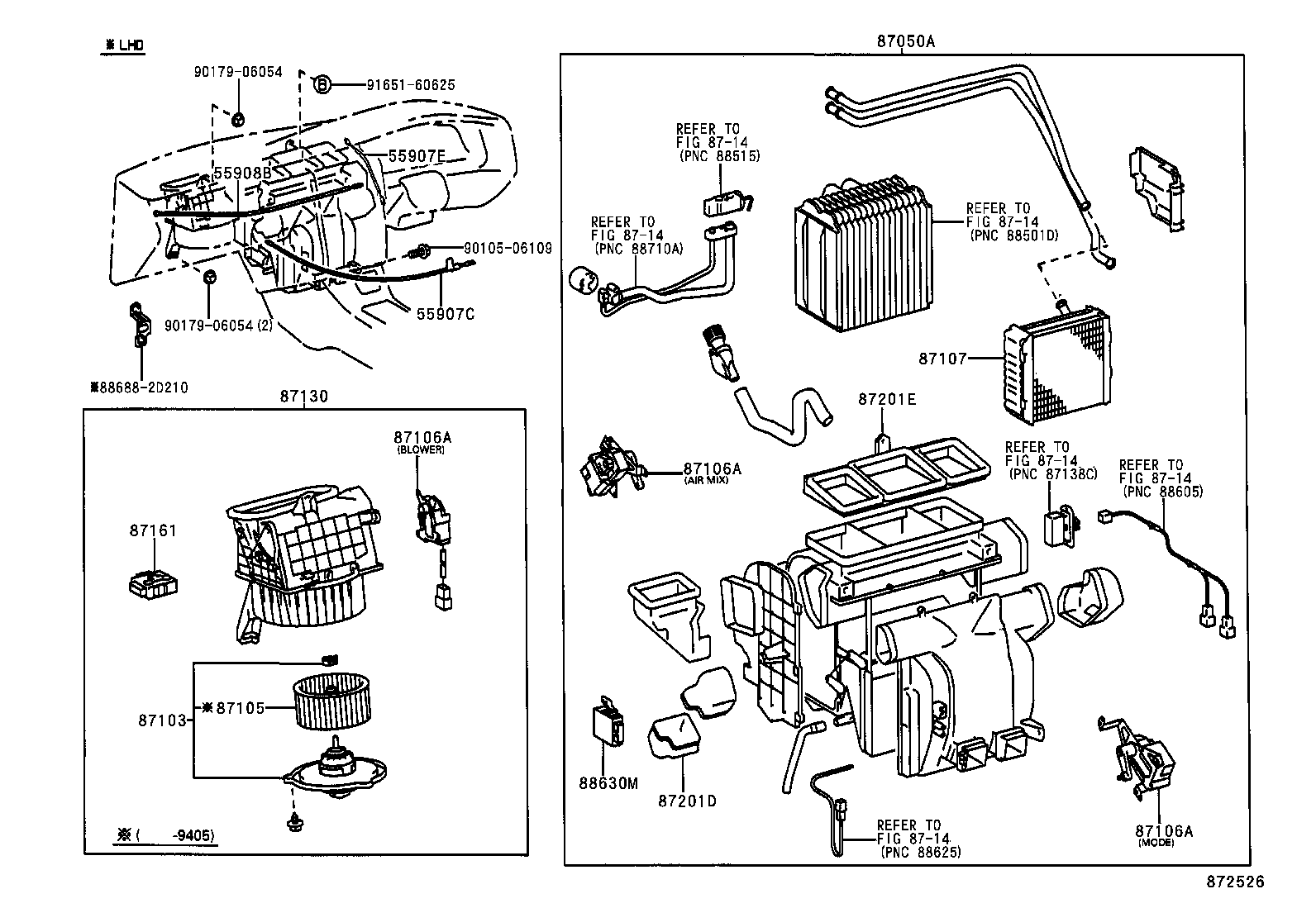

Click highlighted areas on diagram

diagram 55907C 55907E 55908B 87050A 87103 87105 87106A 87106A 87106A 87107 87130 8714 8714 8714 8714 8714 8714 87161 87201D 87201E 88630M 886882D210 9010506109 9017906054 9017906054 9165160625
Part # Description Qty Price
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20170

AT190,CT190,ST191..JPP

 1
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-20200

AT190,CT190,ST191..JPP..LHD

W(HEATER)

 1
87050-20200

AT190,CT190,ST191..JPP..LHD

W(HEATER) & DEALER OPT

 1
87050-20190

AT190,CT190,ST191..JPP..LHD

W(HEATER & AIR CONDITIONER)

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20090

AT190,CT190,ST191..JPP..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33020

AT190,CT190,ST191..JPP..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20580

AT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20520

AT190,CT190,ST191..JPP..LHD

 1
87201D - DUCT SUB-ASSY, AIR
87201-20300

AT190,CT190,ST191..JPP..LHD

 1
Common parts
88688-2D210
90105-06109
90179-06054
91651-60625
Linked diagrams
8714

(9203- )JPP

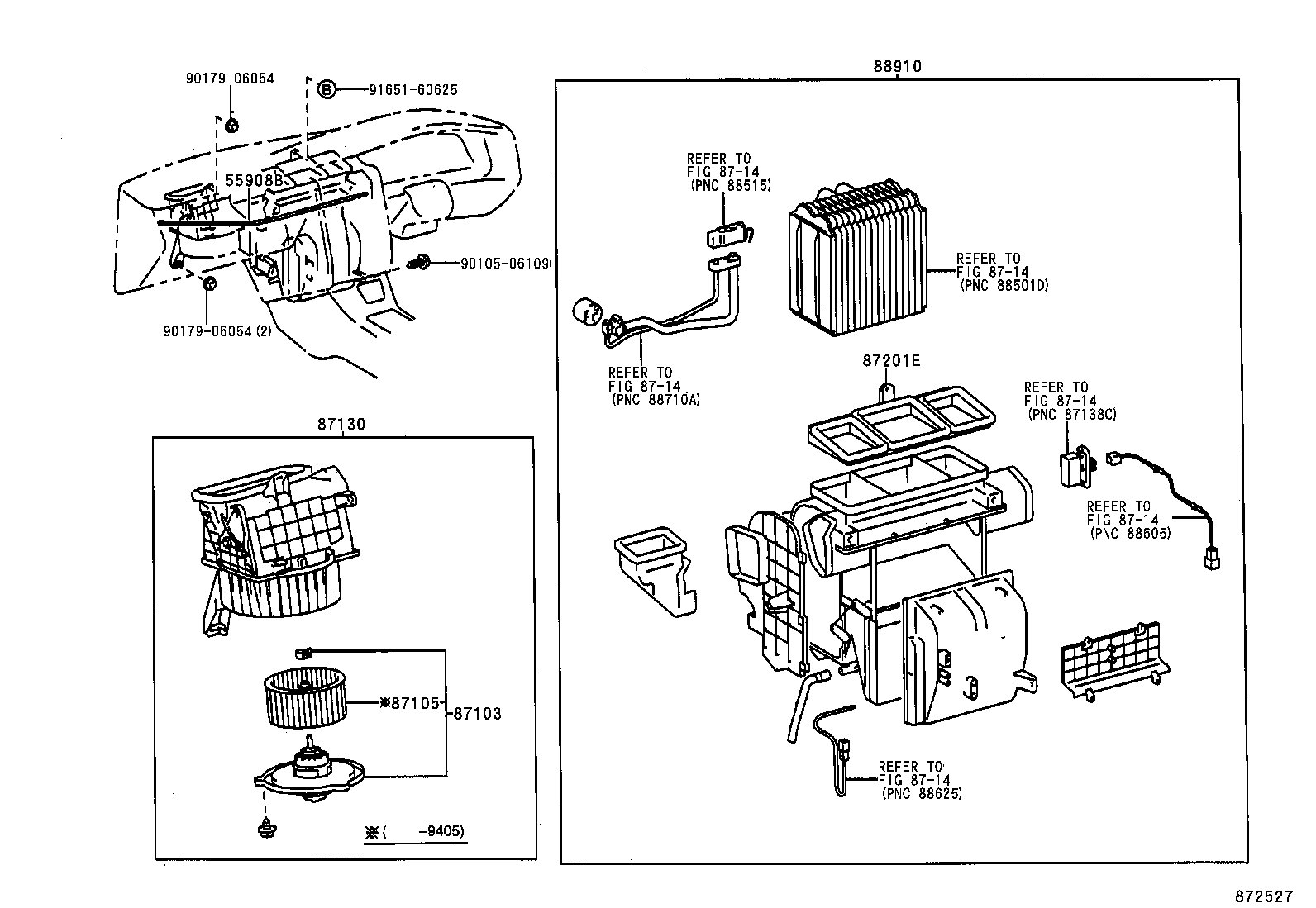

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 55908B 87103 87105 87130 8714 8714 8714 8714 8714 8714 87201E 88910 9010506109 9017906054 9017906054 9165160625
Part # Description Qty Price
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20170

AT190,CT190,ST191..JPP

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20090

AT190,CT190,ST191..JPP..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33020

AT190,CT190,ST191..JPP..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20520

AT190,CT190,ST191..JPP..LHD

 1
88910 - VENTILATOR ASSY, BOOST
88910-20340

AT190,CT190,ST191..JPP..LHD

W(AIR CONDITIONER)

 1
88910-20350

AT190,CT190,ST191..JPP..LHD

 1
Common parts
90105-06109
90179-06054
91651-60625
Linked diagrams
8714
