AT190L-AEPDK (1992)
Toyota Corona (Sed/Lb)

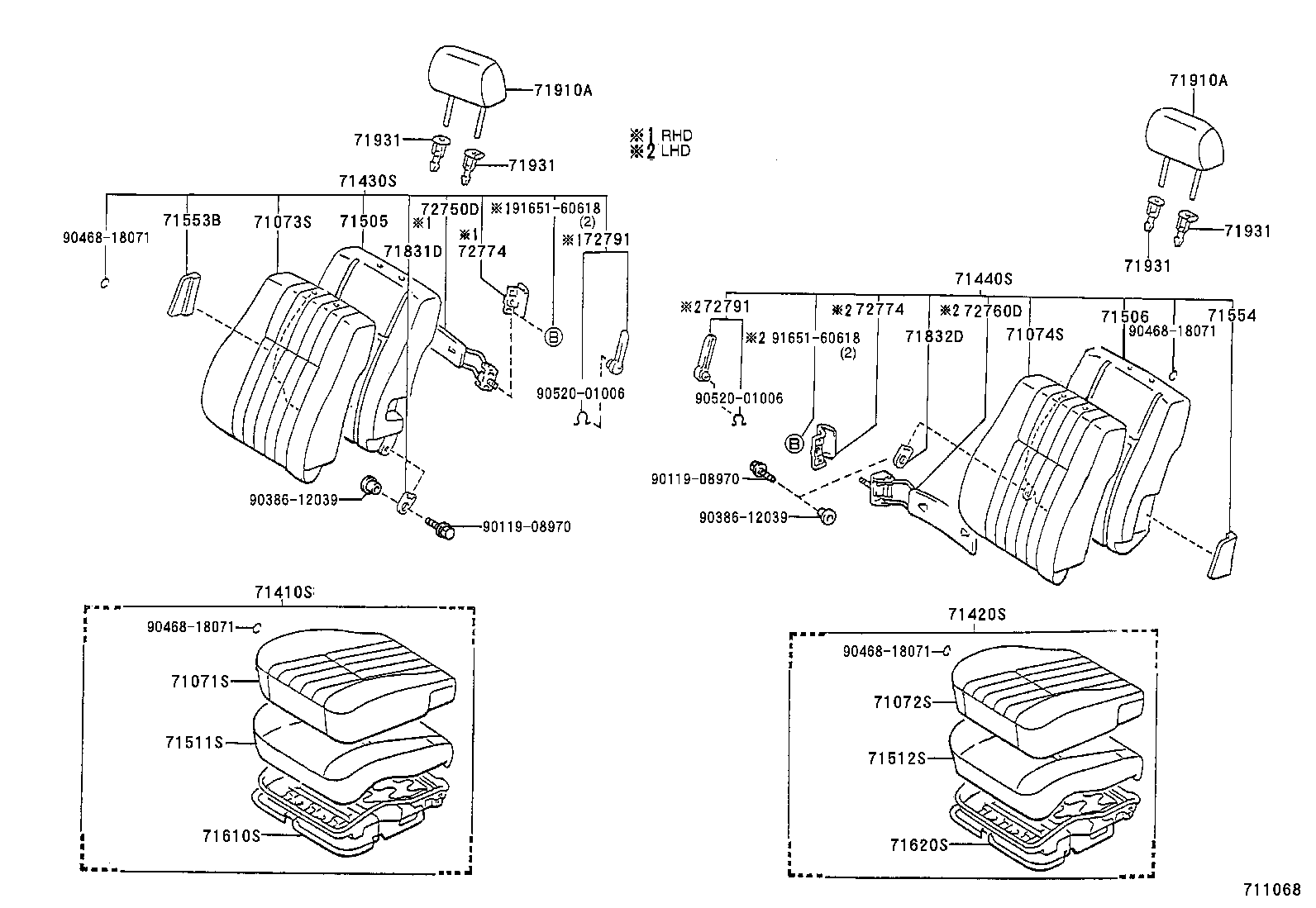

ILLUST NO. 1 OF 2(9203- )JPP..XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G150J1 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71071-2G150B1 |
AT190..JPP..LHD..XL GRAY,TRIM2# |
1 | ||
| 71071-2G480J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71071-2G150B1 |
AT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71071-2G150J3 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71071-2G151B2 |
AT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G151J4 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D560J1 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D560B1 |
AT190..JPP..LHD..XL GRAY,TRIM2# |
1 | ||
| 71072-2D570J0 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),DK. BLUE,TRIM8# |
1 | ||
| 71072-2D560J1 |
AT190..JPP..LHD..XL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D840J0 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),DK. BLUE,TRIM8# |
1 | ||
| 71072-2D830J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D560B1 |
AT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71072-2D560J2 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71072-2D570J1 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71072-2D830B0 |
AT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71072-2D570B0 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),GRAY,TRIM2# |
1 | ||
| 71072-2D561B2 |
AT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D561J3 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71072-2D571B1 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D571J2 |
AT190..JPP..LHD..XL W(VERTICAL SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G120J0 |
AT190..JPP..LHD..XL DK. BLUE,TRIM8# |
1 | ||
| 71073-2G120B0 |
AT190..JPP..LHD..XL GRAY,TRIM2# |
1 | ||
| 71073-2G120J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71073-2G300J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71073-2G120B0 |
AT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71073-2G120J1 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71073-2G121B1 |
AT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2G121J2 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D620B0 |
AT190..JPP..LHD..XL GRAY,TRIM2# |
1 | ||
| 71074-2D620J0 |
AT190..JPP..LHD..XL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D370J0 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),DK. BLUE,TRIM8# |
1 | ||
| 71074-2D620B0 |
AT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71074-2D370B0 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),GRAY,TRIM2# |
1 | ||
| 71074-2D770B0 |
AT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71074-2D780J0 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),DK. BLUE,TRIM8# |
1 | ||
| 71074-2D620J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D370J1 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71074-2D371J2 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71074-2D371B1 |
AT190..JPP..LHD..XL W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D621B1 |
AT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D770J0 |
AT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D620J1 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71074-2D621J2 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G690J0 |
AT190..JPP..LHD..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71410-2G690C0 |
AT190..JPP..LHD..XL ***,BLACK,TRIM2# |
1 | ||
| 71410-2G691B0 |
AT190..JPP..XL ***,SHADOW GRAY,TRIM1# |
2 | ||
| 71410-2G691J1 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
2 | ||
| 71410-2G690C0 |
AT190..JPP..XL ***,BLACK,TRIM2# |
1 | ||
| 71410-2G690J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G320C0 |
AT190..JPP..LHD..XL ***,BLACK,TRIM2# |
1 | ||
| 71420-2G320J0 |
AT190..JPP..LHD..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-2G330C0 |
AT190..JPP..LHD..XL ***,W(VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71420-2G330J0 |
AT190..JPP..LHD..XL ***,W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71420-2G320J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-2G321B0 |
AT190..JPP..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G331B0 |
AT190..JPP..LHD..XL ***,W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G320C0 |
AT190..JPP..XL ***,BLACK,TRIM2# |
1 | ||
| 71420-2G321J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71420-2G331J0 |
AT190..JPP..LHD..XL ***,W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G640J0 |
AT190..JPP..LHD..XL ***,DK. BLUE,TRIM8# |
1 | ||
| 71430-2G640C0 |
AT190..JPP..XL ***,BLACK,TRIM2# |
1 | ||
| 71430-2G640J0 |
AT190..JPP..XL ***,DK. BLUE,TRIM8# |
1 | ||
| 71430-2G640C0 |
AT190..JPP..LHD..XL ***,BLACK,TRIM2# |
1 | ||
| 71430-2G641J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71430-2G641B0 |
AT190..JPP..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G260C0 |
AT190..JPP..LHD..XL ***,BLACK,TRIM2# |
1 | ||
| 71440-2G110J0 |
AT190..JPP..LHD..XL ***,W(REAR SPLIT SEAT & VERTICAL ADJUSTER),DK. BLUE,TRIM8# |
1 | ||
| 71440-2G110C0 |
AT190..JPP..LHD..XL ***,W(REAR SPLIT SEAT & VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71440-2G260C0 |
AT190..JPP..XL ***,BLACK,TRIM2# |
1 | ||
| 71440-2G260J0 |
AT190..JPP..LHD..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-2G260J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-2G111B0 |
AT190..JPP..LHD..XL ***,W(REAR SPLIT SEAT & VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G111J0 |
AT190..JPP..LHD..XL ***,W(REAR SPLIT SEAT & VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71440-2G261J0 |
AT190..JPP..XL ***,DK.BLUE,TRIM8# |
1 | ||
| 71440-2G261B0 |
AT190..JPP..XL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20150 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 71505-20150 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20120 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 71506-20120 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71506-20140 |
AT190..JPP..LHD..XL W(REAR SPLIT SEAT & VERTICAL ADJUSTER) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20610 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 71511-20610 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20610 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 71511-20610 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20230 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 71553-20230 |
AT190..JPP..XL W(SPLIT REAR SEAT & VERTICAL ADJUSTER),RH |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20200 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20500 |
AT190..JPP..LHD..XL |
1 | ||
| 71610-20510 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20300 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 71620-20300 |
AT190,CT190..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 71620-20290 |
AT190,CT190,ST191..JPP |
1 | ||
| 71620-20300 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71831-16010 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 71831-16010 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B610J1 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71910-2B610B1 |
AT190,ST191..JPP..XL GRAY,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B610J1 |
AT190,ST191..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71910-2B610B1 |
AT190,ST191..JPP..XL GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-12100 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-20030 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-20030 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72791-20050J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72791-20050J0 |
AT190,CT190,ST191..JPP..SED DK. BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60618 | ||||

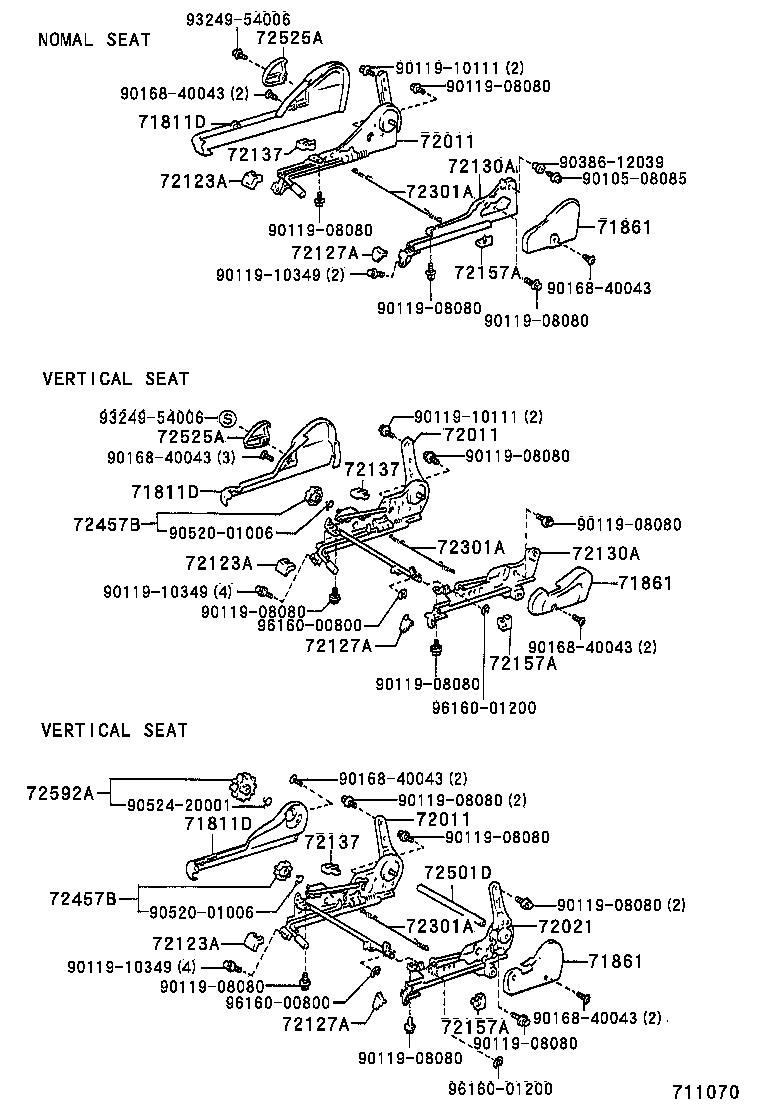

ILLUST NO. 2 OF 2(9203- )JPP
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20220J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71811-20220C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71811-20220C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71811-20220B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20220J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71811-20220C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71811-20220C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71811-20220B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20220J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71811-20220C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71811-20220C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71811-20220B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20200 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72010-20200 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20200 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72010-20200 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20200 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72010-20200 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72127-20050J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72127-20050J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72127-20050J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72127-20050C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20280 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20280 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72137-20060J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72137-20060J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72137-20060J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72157-20020B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72157-20020B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72157-20020B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72157-20020J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100W3 |
AT190,CT190..JPP;ST191..JPP..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 72525-12100C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72525-12100P0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100W3 |
AT190,CT190..JPP;ST191..JPP..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 72525-12100C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72525-12100P0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90386-12039 | ||||
| 90520-01006 | ||||
| 90524-20001 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

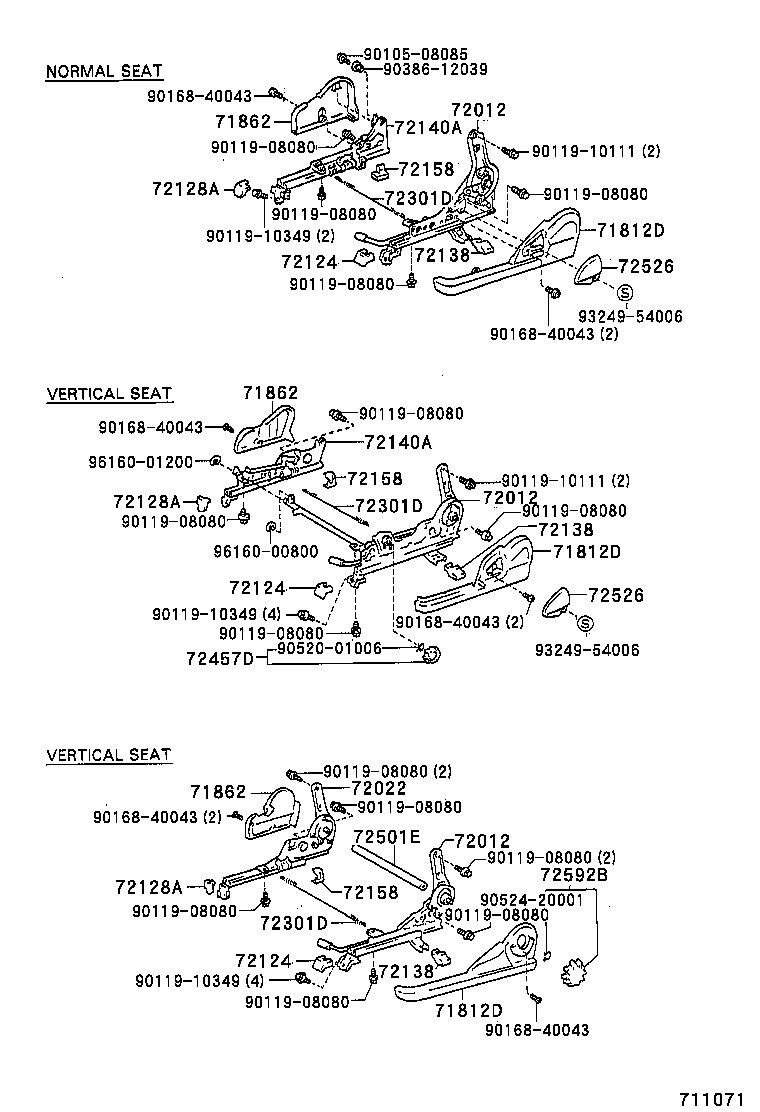

ILLUST NO. 2 OF 2(9203- )JPP
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71812-20200C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71812-20210C0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71812-20200C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71812-20210J0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71812-20210B0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200B2 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71812-20200C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71812-20210C0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71812-20200C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71812-20210J0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71812-20210B0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200B2 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 71812-20200C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 71812-20210C0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71812-20200C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 71812-20210J0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),DK.BLUE,TRIM8# |
1 | ||
| 71812-20210B0 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200B2 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20220 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72020-20230 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72020-20220 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72020-20221 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 72020-20231 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20220 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72020-20230 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72020-20220 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72020-20221 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 72020-20231 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-20220 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72020-20230 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72020-20220 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72020-20221 |
AT190,CT190..JPP;ST191..JPP..SED..GL |
1 | ||
| 72020-20231 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72128-20040J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72128-20040J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72128-20040C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72128-20040J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72128-20040J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72128-20040J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72128-20040J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138-20030J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72138-20030B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138-20030J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72138-20030B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138-20030J0 |
AT190,CT190,ST191..JPP..SED DK.BLUE,TRIM8# |
1 | ||
| 72138-20030B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20270 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72140-20280 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20270 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72140-20280 |
AT190,CT190,ST191..JPP..LHD W(VERTICAL ADJUSTER) |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72158-20010B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20010J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72158-20010B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20010J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010J0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL BLACK,TRIM2# |
1 | ||
| 72158-20010B0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20010J0 |
AT190,CT190..JPP;ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 72158-20010C0 |
ST191..JPP..GL;AT190,CT190..JPP BLACK,TRIM2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12090 |
AT190,CT190,ST191..JPP..LHD W(DIAL ADJUSTER RECLINING OR VERTICAL ADJUSTER) |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12090 |
AT190,CT190,ST191..JPP..LHD W(DIAL ADJUSTER RECLINING OR VERTICAL ADJUSTER) |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..GL |
1 | ||
| 72301-12090 |
AT190,CT190,ST191..JPP..LHD W(DIAL ADJUSTER RECLINING OR VERTICAL ADJUSTER) |
1 | ||
| 72301-12160 |
ST191..JPP..GL;AT190,CT190..JPP |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-18010J0 |
AT190,CT190,ST191..JPP..LHD DK. BLUE,TRIM8# |
1 | ||
| 72457-18010B3 |
AT190,CT190,ST191..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT190,ST191..JPP..LHD BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040C0 |
ST191..JPP..GL;AT190,CT190..JPP ANTELOPE,TRIM2# |
1 | ||
| 72526-12040P0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040W3 |
AT190,CT190..JPP;ST191..JPP..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040C0 |
ST191..JPP..GL;AT190,CT190..JPP ANTELOPE,TRIM2# |
1 | ||
| 72526-12040P0 |
AT190,CT190..JPP;ST191..JPP..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040W3 |
AT190,CT190..JPP;ST191..JPP..SED..GL DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90386-12039 | ||||
| 90520-01006 | ||||
| 90524-20001 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
