Toyota Corona (sed/lb) AT190 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
CORONA (SED/LB)
AT190L-AEMNK (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AT190L-AEMNK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996

Engine 4AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9203- )JPP..LHD

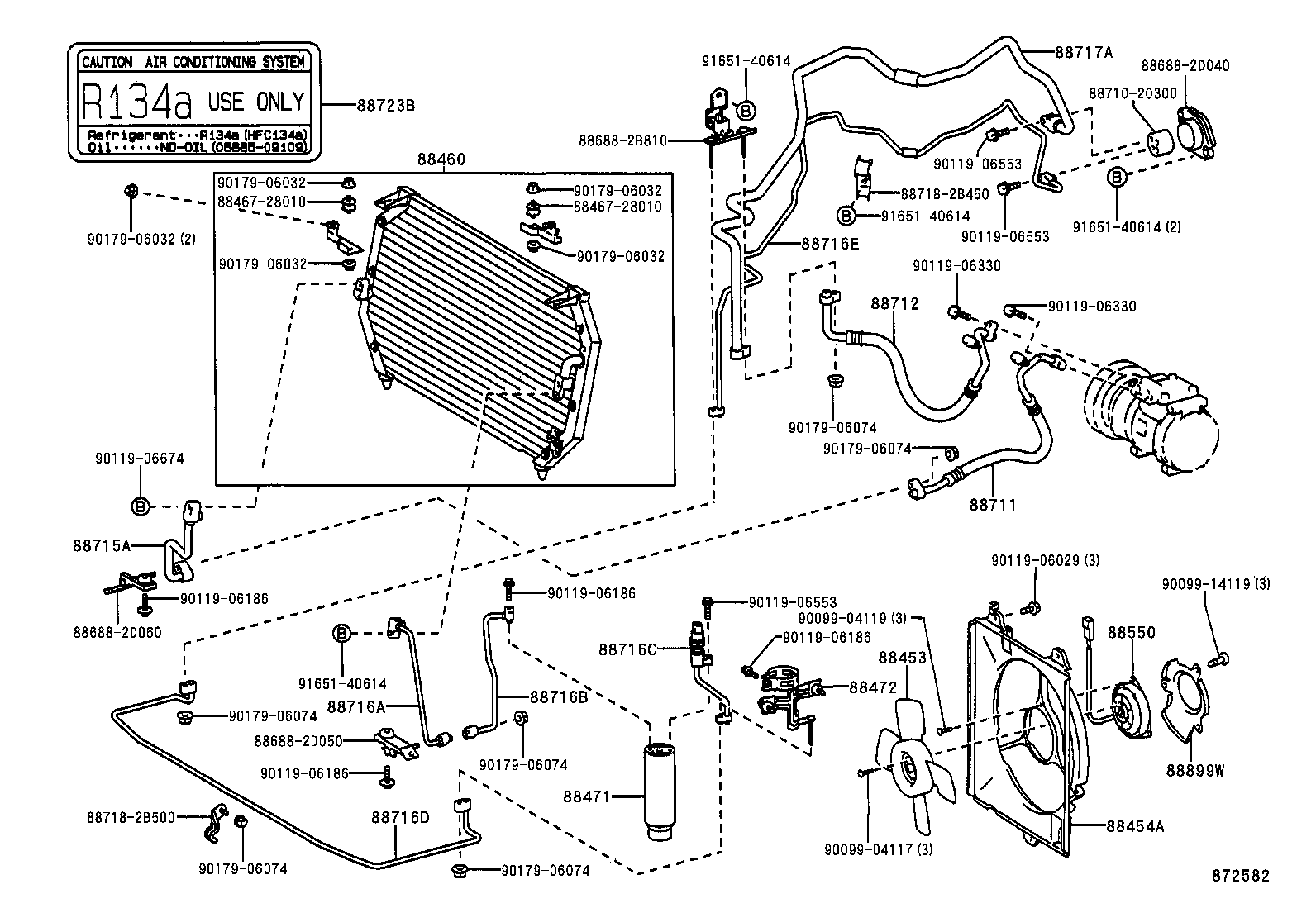

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-20040	AT190,ST191..JPP DEALER OPT	03/1992 - 02/1994	1
88453-20080	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88453-20080	AT190,ST191..JPP MAKER OPT OR DEALER OPT	03/1992 - 02/1994	1
88454A - SHROUD, FAN
88454-20020	AT190,ST191..JPP	03/1992 - 06/1996	1
88460 - CONDENSER ASSY, COOLER
88460-20370	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 01/1995	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/1992	1
88472-20150	AT190,CT190,ST191..JPP..LHD	01/1995 - 12/2999	1
88472-20150	AT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL	12/1992 - 01/1995	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 09/1994	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPT	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..XL;AT190..JPP..LHD..GL	01/1995 - 01/1996	1
88711-2B120	AT190..JPP MAKER OPT & BOOST VENTILATOR	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..RHD..XL;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B250	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 02/1994	1
88712-2B251	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88712-2B250	AT190..JPP..LHD	03/1992 - 12/1992	1
88712-2B251	AT190..JPP..LHD	01/1995 - 01/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150	CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1994	1
88716-2D151	CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/1992	1
88716-2D160	AT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL	12/1992 - 01/1995	1
88716-2D160	AT190,CT190,ST191..JPP..LHD	01/1995 - 12/2999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D130	AT190,CT190,ST191..JPP..LHD	03/1992 - 04/1993	1
88716-2D132	AT190,CT190,ST191..JPP..LHD	02/1994 - 12/2999	1
88716-2D131	AT190,CT190,ST191..JPP..LHD	04/1993 - 02/1994	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D200	AT190..JPP..LHD	03/1992 - 12/1992	1
88716-2D200	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 01/1995	1
88716-2D200	AT190..JPP..LHD	01/1995 - 01/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B260	AT190..JPP..LHD	03/1992 - 12/1992	1
88717-2B260	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 01/1995	1
88717-2B260	AT190..JPP..LHD	01/1995 - 01/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
Common parts
88467-28010
88688-2B810
88688-2D040
88688-2D050
88688-2D060
88710-20300
88718-2B460
88718-2B500
90099-04117
90099-04119
90099-14119
90119-06029
90119-06186
90119-06330
90119-06553
90119-06674
90179-06032
90179-06074
91651-40614

(9203- )AT190,ST191..JPP..LHD

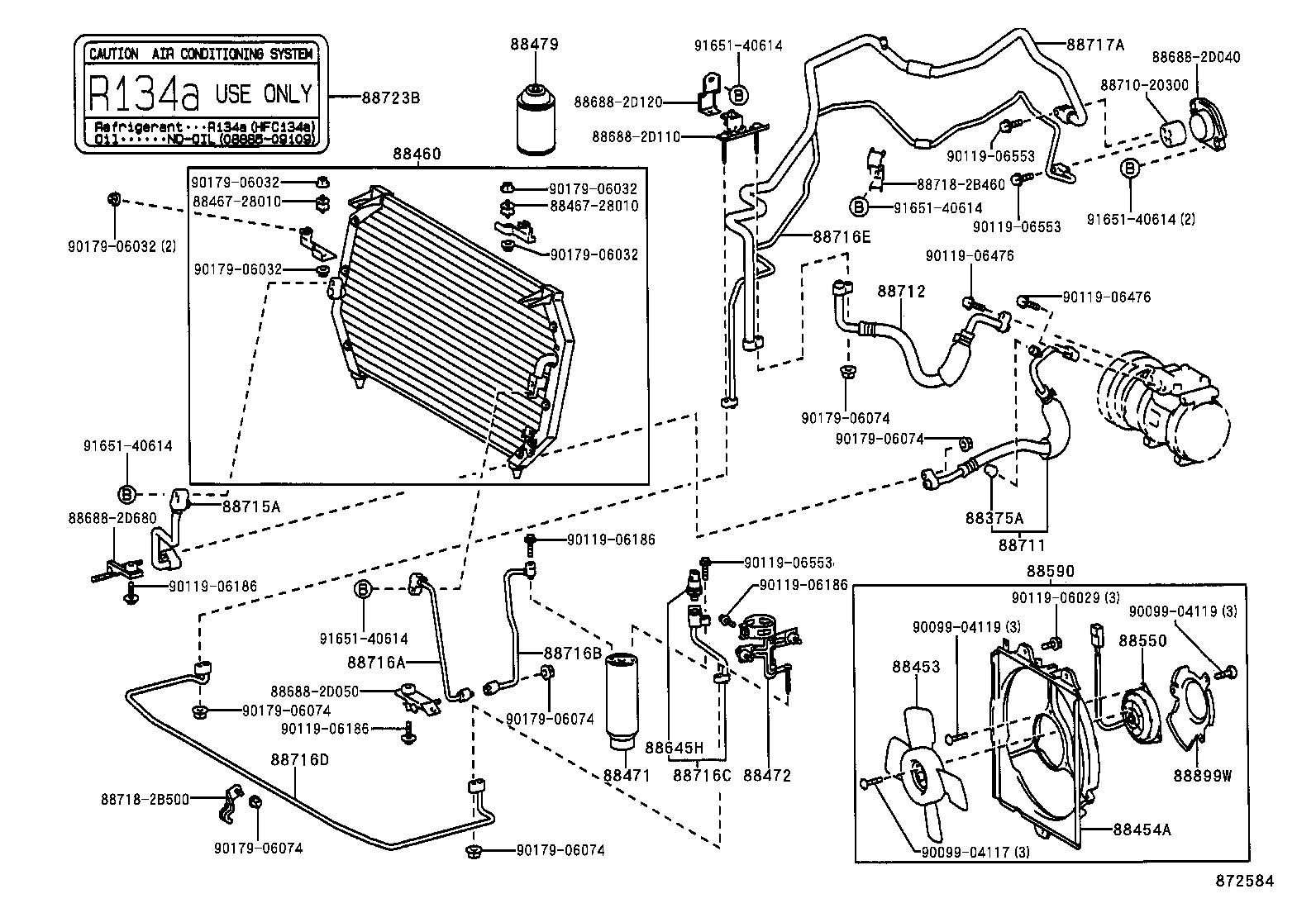

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	04/1992 - 02/1994	1
88375-30280	AT190,CT190,ST191..JPP..LHD	02/1994 - 01/1996	2
88375-30280	AT190,ST191..JPP	03/1992 - 04/1992	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20040	AT190,ST191..JPP DEALER OPT	03/1992 - 02/1994	1
88453-20080	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88453-20080	AT190,ST191..JPP MAKER OPT OR DEALER OPT	03/1992 - 02/1994	1
88454A - SHROUD, FAN
88454-20020	AT190,ST191..JPP	03/1992 - 06/1996	1
88460 - CONDENSER ASSY, COOLER
88460-20370	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 01/1995	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/1992	1
88472-20150	AT190,CT190,ST191..JPP..LHD	01/1995 - 12/2999	1
88472-20150	AT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL	12/1992 - 01/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	AT190,CT190,ST191..JPP..LHD 250G	04/1992 - 05/1992	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	ST191..JPP;AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 09/1994	1
88590 - BLOWER ASSY, W/SHROUD
88590-20270	AT190,ST191..JPP	03/1992 - 06/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..JPP..RHD;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPT	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..XL;AT190..JPP..LHD..GL	01/1995 - 01/1996	1
88711-2B120	AT190..JPP MAKER OPT & BOOST VENTILATOR	02/1993 - 02/1994	1
88711-2B121	AT190..JPP..RHD..XL;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B250	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 02/1994	1
88712-2B251	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88712-2B250	AT190..JPP..LHD	03/1992 - 12/1992	1
88712-2B251	AT190..JPP..LHD	01/1995 - 01/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150	CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	03/1992 - 02/1994	1
88716-2D151	CT190,ST191..JPP;AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	02/1994 - 01/1995	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160	AT190,CT190,ST191..JPP..LHD	03/1992 - 12/1992	1
88716-2D160	AT190..JPP..ATM..XL;AT190,CT190,ST191..JPP..LHD..GL	12/1992 - 01/1995	1
88716-2D160	AT190,CT190,ST191..JPP..LHD	01/1995 - 12/2999	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D130	AT190,CT190,ST191..JPP..LHD	03/1992 - 04/1993	1
88716-2D132	AT190,CT190,ST191..JPP..LHD	02/1994 - 12/2999	1
88716-2D131	AT190,CT190,ST191..JPP..LHD	04/1993 - 02/1994	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D200	AT190..JPP..LHD	03/1992 - 12/1992	1
88716-2D200	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 01/1995	1
88716-2D200	AT190..JPP..LHD	01/1995 - 01/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B260	AT190..JPP..LHD	03/1992 - 12/1992	1
88717-2B260	AT190..JPP..LHD..GL;AT190..JPP..ATM..XL	12/1992 - 01/1995	1
88717-2B260	AT190..JPP..LHD	01/1995 - 01/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	AT190,CT190,ST191..JPP	03/1992 - 06/1996	1
Common parts
88467-28010
88688-2D040
88688-2D050
88688-2D110
88688-2D120
88688-2D680
88710-20300
88718-2B460
88718-2B500
90099-04117
90099-04119
90119-06029
90119-06186
90119-06476
90119-06553
90179-06032
90179-06074
91651-40614
