AT190L-AEMNK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9203- )AT190..JPP

Click highlighted areas on diagram

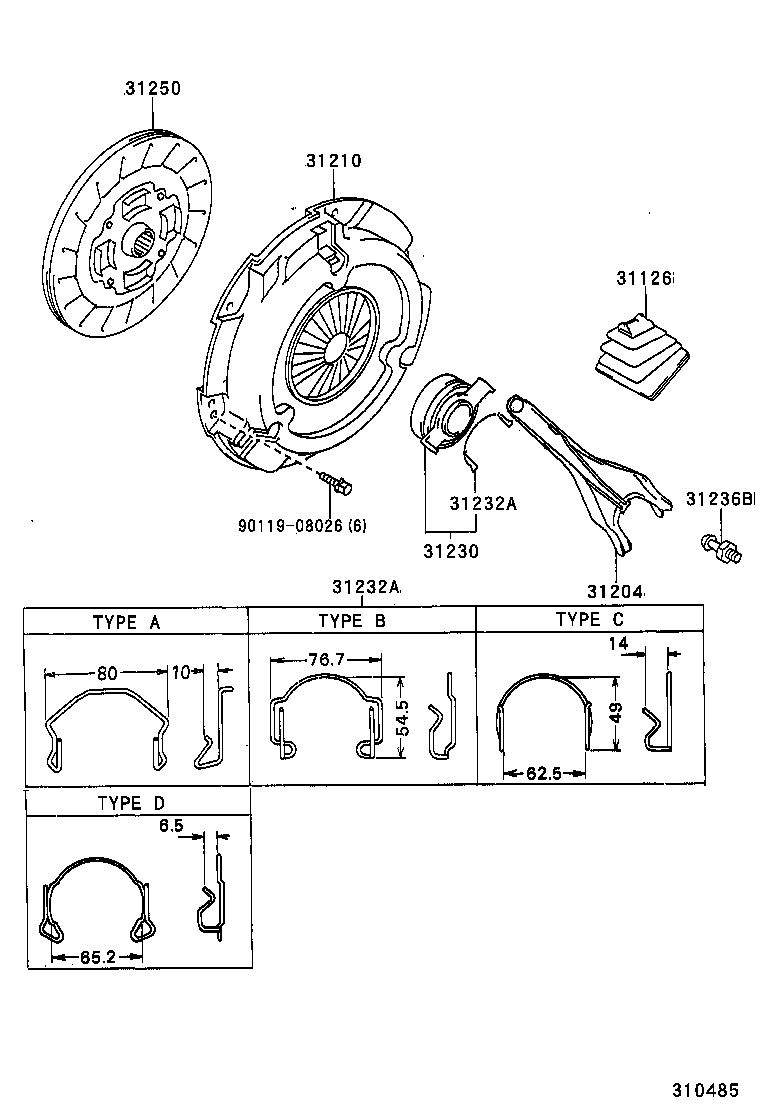

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

AT190..JPP..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-17010

AT190..JPP..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-12200

AT190..JPP..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12170

AT190..JPP..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12050

AT190..JPP..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-12070

AT190..JPP..MTM

TYPE D:REFER TO ILLUSTRATION

 1
31232-12060

AT190..JPP..MTM

TYPE C:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12050

AT190..JPP..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-12070

AT190..JPP..MTM

TYPE D:REFER TO ILLUSTRATION

 1
31232-12060

AT190..JPP..MTM

TYPE C:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

AT190..JPP..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-12310

AT190..JPP..MTM

 1
31250-12380

AT190..JPP..MTM

 1
Common parts
90119-08026
