AT190L-AEMDK (1992)

Toyota Corona (Sed/Lb)

Production Mar 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9203- )JPP

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT190,CT190,ST191..JPP

OD=13.3

 2
90105-15001

AT190,CT190,ST191..JPP

OD=15.0

 2
90105-15004

AT190,CT190,ST191..JPP

OD=13.9

 2
90105-15006

AT190,CT190,ST191..JPP

OD=12.4

 2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT190,CT190,ST191..JPP

OD=15.0

 2
90105-15004

AT190,CT190,ST191..JPP

OD=13.9

 2
90105-15005

AT190,CT190,ST191..JPP

OD=13.3

 2
90105-15006

AT190,CT190,ST191..JPP

OD=12.4

 2

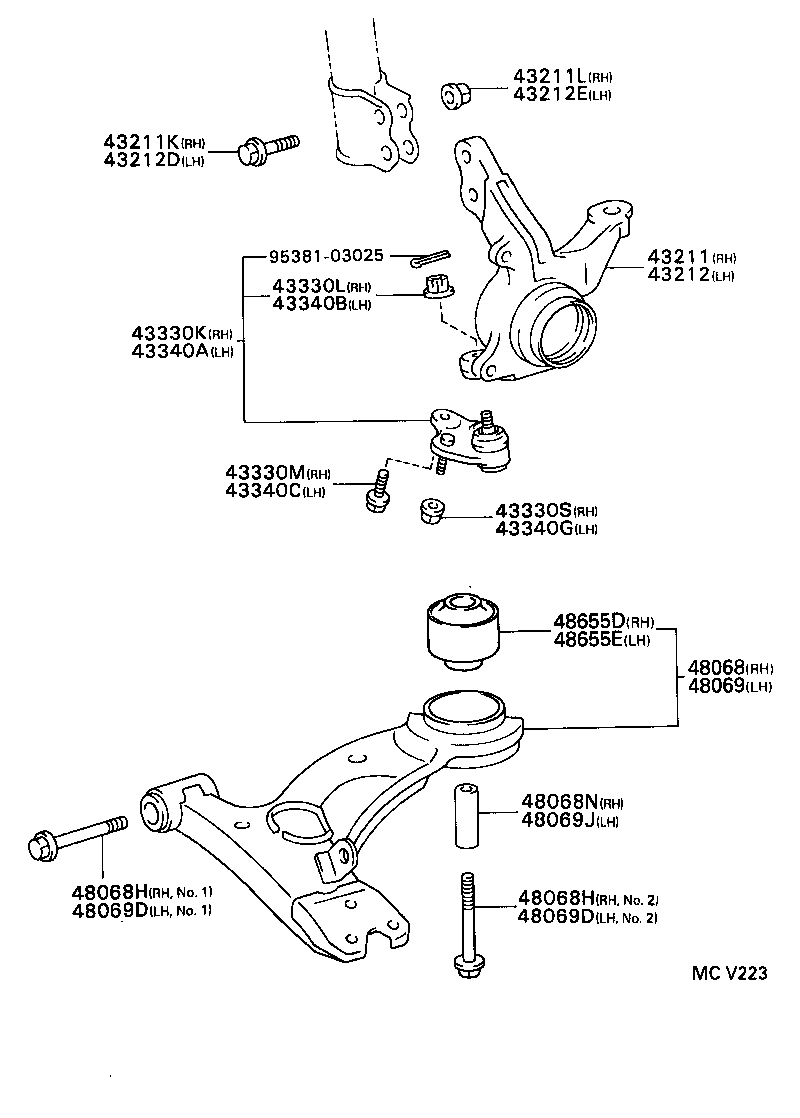

ILLUST NO. 1 OF 2(9203- )JPP

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48068N 48069 48069D 48069D 48069J 48655D 48655E 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20190

AT190..JPP..XL

 1
43211-20210

AT190..JPP..XL

W(POWER STEERING)

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT190,CT190,ST191..JPP

OD=13.3

 2
90105-15001

AT190,CT190,ST191..JPP

OD=15.0

 2
90105-15004

AT190,CT190,ST191..JPP

OD=13.9

 2
90105-15006

AT190,CT190,ST191..JPP

OD=12.4

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AT190,CT190,ST191..JPP

 2
43212 - KNUCKLE, STEERING, LH
43212-20150

AT190..JPP..XL

 1
43212-20170

AT190..JPP..XL

W(POWER STEERING)

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT190,CT190,ST191..JPP

OD=15.0

 2
90105-15004

AT190,CT190,ST191..JPP

OD=13.9

 2
90105-15005

AT190,CT190,ST191..JPP

OD=13.3

 2
90105-15006

AT190,CT190,ST191..JPP

OD=12.4

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT190,CT190,ST191..JPP

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29265

AT190,CT190,ST191..JPP

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT190,CT190,ST191..JPP

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT190,CT190,ST191..JPP

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT190,CT190,ST191..JPP

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29265

AT190,CT190,ST191..JPP

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT190,CT190,ST191..JPP

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12122

AT190,CT190,ST191..JPP

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12052

AT190,CT190,ST191..JPP

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20260

AT190,CT190,ST191..JPP

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT190,CT190,ST191..JPP

ARM NO.2

 1
90119-14023

AT190,CT190,ST191..JPP

ARM NO.1

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT190,CT190,ST191..JPP

ARM NO.2

 1
90119-14023

AT190,CT190,ST191..JPP

ARM NO.1

 1
48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90389-19002

AT190,CT190,ST191..JPP

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20260

AT190,CT190,ST191..JPP

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14046

AT190,CT190,ST191..JPP

ARM NO.2

 1
90119-14023

AT190,CT190,ST191..JPP

ARM NO.1

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14046

AT190,CT190,ST191..JPP

ARM NO.2

 1
90119-14023

AT190,CT190,ST191..JPP

ARM NO.1

 1
48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90389-19002

AT190,CT190,ST191..JPP

 1
48655D - BUSH, FRONT LOWER ARM, NO.2 RH
48655-20140

AT190,CT190,ST191..JPP

 1
48655E - BUSH, FRONT LOWER ARM, NO.2 LH
48655-20140

AT190,CT190,ST191..JPP

 1
Common parts
95381-03025
