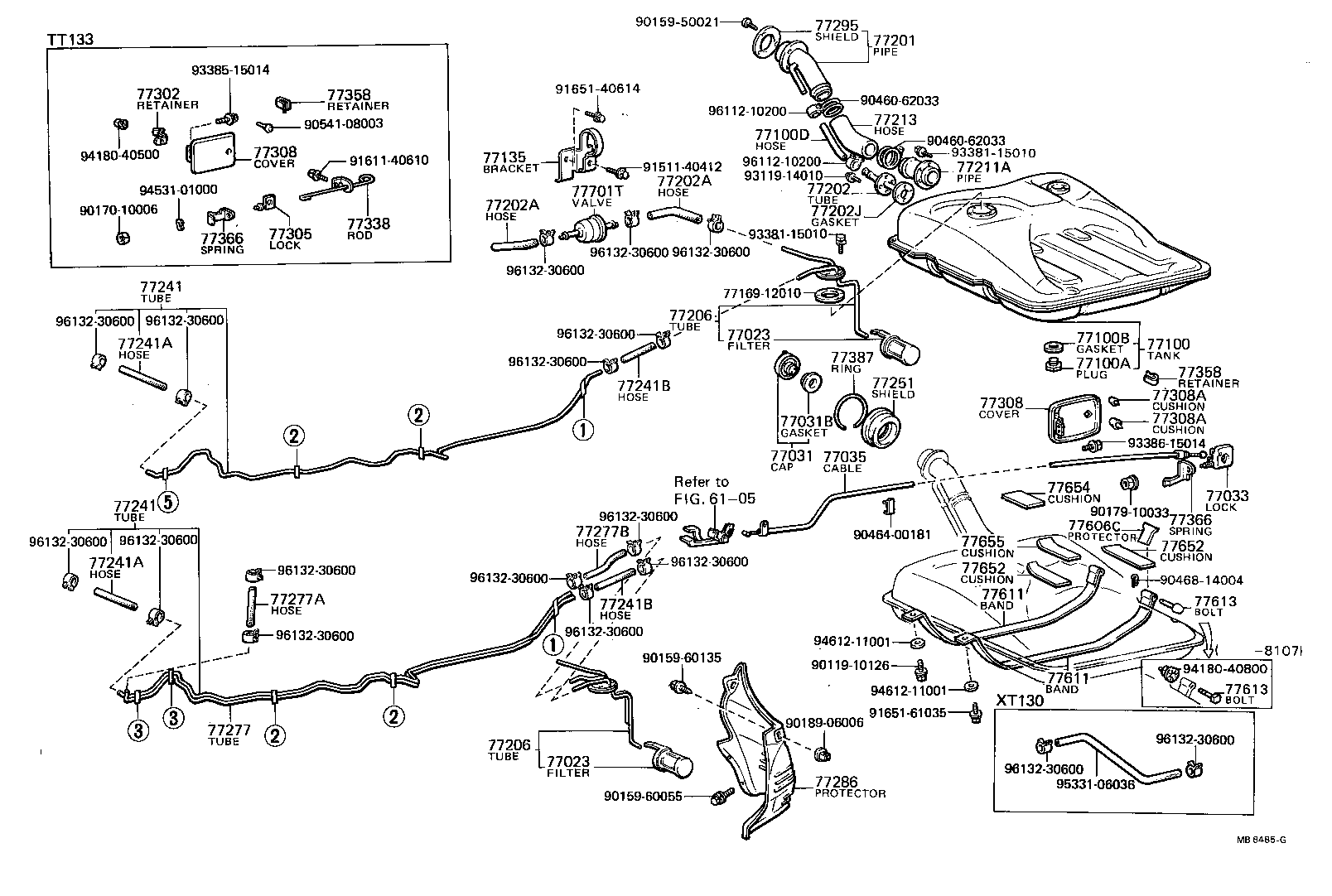

TT133R-TEKRSY (1979)
Toyota Corona
(7809-8205)SED..LEF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RT13#,TT13#,XT130 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RT13#,TT13#,XT130 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RT13#,TT13#,XT130 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20919 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-18043 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-20020 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-20020 |
RT130,TT133..SED..LEF |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-20020 |
RT130,TT133..SED..LEF |
1 | ||
| 77211A - PIPE, FUEL TANK FILLER, LOWER | ||||
| 77011-10010 |
RT13#,TT133..SED..LEF |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-20050 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20200 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-20200 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-20010 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
RT132,TT133..SED..LEF *H,L=120 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20030 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-22010 |
RT130,132,TT133..SED..LEF LWR |
1 | ||
| 77302 - RETAINER, FUEL TANK CAP | ||||
| 77377-20010 |
TT133..SED |
1 | ||
| 77305 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-20010 |
TT133..SED |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20010 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-20010 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-10005 |
RT13#,TT13#,XT130..HT,LB,SED LWR |
1 | ||
| 90541-08003 |
RT13#,TT13#,XT130..HT,LB,SED UPR |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-10005 |
RT13#,TT13#,XT130..HT,LB,SED LWR |
1 | ||
| 90541-08003 |
RT13#,TT13#,XT130..HT,LB,SED UPR |
1 | ||
| 77338 - ROD, FUEL TANK CAP LOCK | ||||
| 77307-20010 |
TT133..SED |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
RT13#,TT13#,XT130 |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
RT13#,TT13#,XT130 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-20010 |
TT133..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-20010 |
TT133..SED |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14010 |
RT13#,TT13#,XT130..HT,LB,SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-20040 |
RT130,132,TT133..SED..LEF RH |
1 | ||
| 77602-20050 |
RT130,132,TT133..SED..LEF LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-20040 |
RT130,132,TT133..SED..LEF RH |
1 | ||
| 77602-20050 |
RT130,132,TT133..SED..LEF LH |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 77645-14030 |
RT13#,TT13#..HT,LB,SED |
2 | ||
| 91121-50875 |
RT13#,TT13#..HT,LB,SED |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 77645-14030 |
RT13#,TT13#..HT,LB,SED |
2 | ||
| 91121-50875 |
RT13#,TT13#..HT,LB,SED |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20020 |
RT130,132,TT133..SED..LEF |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20020 |
RT130,132,TT133..SED..LEF |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-20030 |
RT130,132,TT133..SED..LEF |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| Common parts | ||||
| 77169-12010 | ||||
| 90119-10126 | ||||
| 90159-50021 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90170-10006 | ||||
| 90179-10033 | ||||
| 90189-06006 | ||||
| 90460-62033 | ||||
| 90464-00181 | ||||
| 90468-14004 | ||||
| 90541-08003 | ||||
| 91511-40412 | ||||
| 91611-40610 | ||||
| 91651-40614 | ||||
| 91651-61035 | ||||
| 93119-14010 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 93386-15014 | ||||
| 94180-40500 | ||||
| 94180-40800 | ||||
| 94531-01000 | ||||
| 94612-11001 | ||||
| 95331-06036 | ||||
| 96112-10200 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 6105 | ||||
