TT133R-TEKRS (1979)
Toyota Corona
(7809-8008)RHD

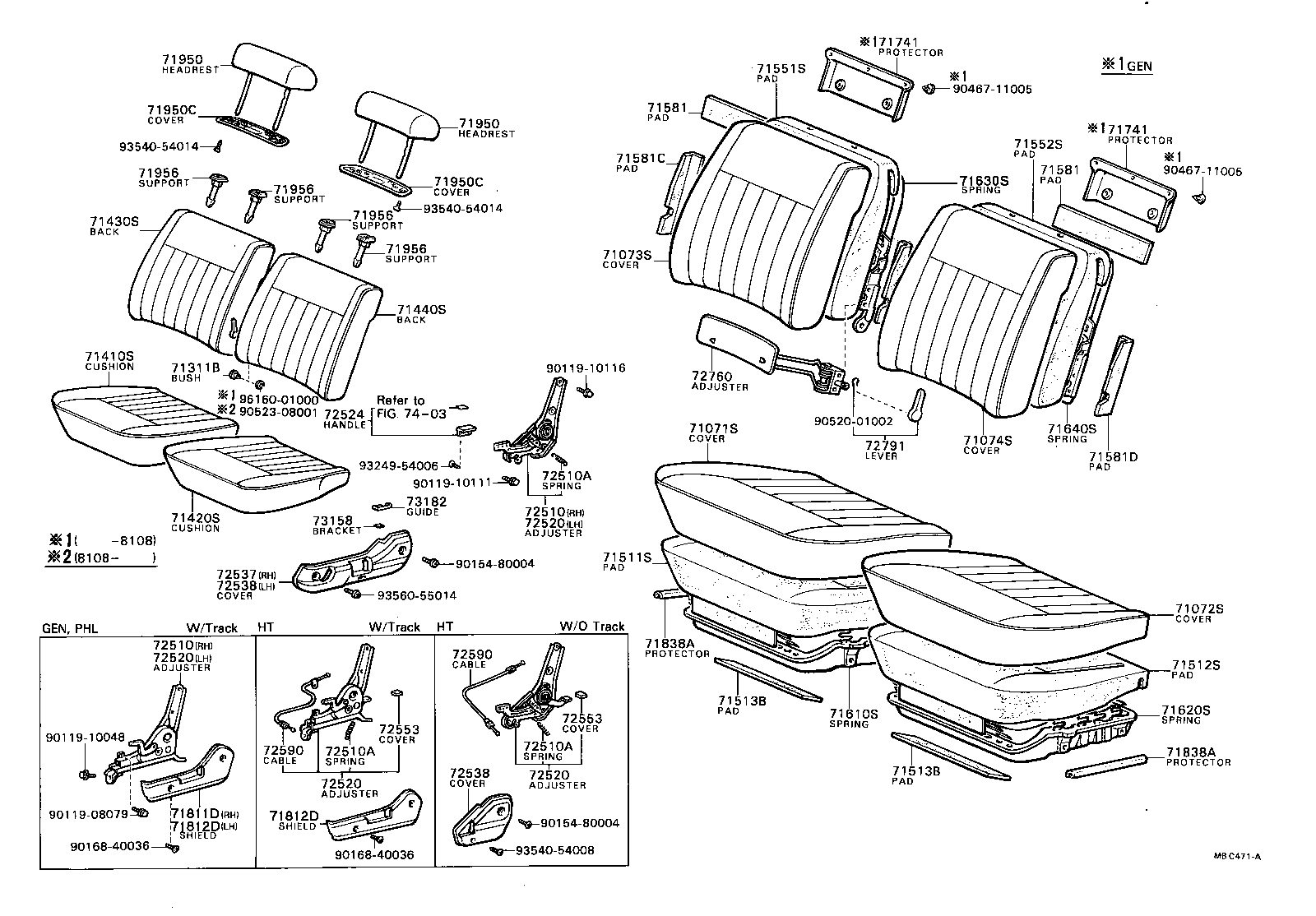

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2058103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2058102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2058106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2022106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2022103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2022102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2062103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2062106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2062102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2024203 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2024202 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2024206 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2072005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2072001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2072002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2060106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2060103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2060102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2045002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2045001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2045005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2033106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2033102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2033103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2021001 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71910-2021005 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71910-2021002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-2231002 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2231001 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231016 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-1402001 |
TT133 BLACK,BLACK,TRIM2# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-20100 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-20100 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-2005002 |
TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72525-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BLACK,BLACK,TRIM2# |
2 | ||
| 72526-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005005 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-2005002 |
TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72525-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BLACK,BLACK,TRIM2# |
2 | ||
| 72526-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005005 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2006005 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2007002 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-2006001 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2007001 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2007006 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2006002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2002005 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002001 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2005006 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2002002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005002 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005001 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001002 |
TT13#..(LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3001016 |
TT13#..(LB,SED)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001001 |
TT13#..(LB,SED)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10010 | ||||
| 90119-10111 | ||||
| 90151-50001 | ||||
| 90154-80004 | ||||
| 90168-40021 | ||||
| 90386-12018 | ||||
| 93249-54006 | ||||
| 93540-54008 | ||||
| 93540-54014 | ||||
| 93610-55016 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||
(8008- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2058103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2058102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2058106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2022106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2022103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2022102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2068001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2068002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2068005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
TT13# HIGH BACK |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2062103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2062106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2062102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2024203 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2024202 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2024206 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2072005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2072001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2072002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2060106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2060103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2060102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2045002 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2045001 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2045005 |
TT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2033106 |
TT13#..(LB,SED)..RHD FULL FB-A,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2033102 |
TT13#..(LB,SED)..RHD FULL FB-A,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2033103 |
TT13#..(LB,SED)..RHD FULL FB-A,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20221 |
TT13#..(LB,SED)..RHD FULL FB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20221 |
TT13#..(LB,SED)..RHD FULL FB |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22150 |
RT132,TT13#..RHD FULL FB |
1 | ||
| 71610-12130 |
RT13#,TT13#..GEN,PHL SEMI FB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22070 |
TT13#..(LB,SED)..RHD FULL FB |
1 | ||
| 71620-20120 |
TT13#..(LB,SED)..RHD FULL FB |
1 | ||
| 71620-12130 |
RT13#,TT13#..GEN,PHL SEMI FB |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22180 |
RT132,TT13#..(LB,SED)..RHD FULL FB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22140 |
RT13#,TT13#..(LB,SED)..(DLX,STD) FULL FB,VL |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2021001 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71910-2021005 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71910-2021002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-2231002 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2231001 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231016 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2021001 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71910-2021005 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71910-2021002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71910-2231002 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2231001 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231016 |
TT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-1402001 |
TT133 BLACK,BLACK,TRIM2# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-1402001 |
TT133 BLACK,BLACK,TRIM2# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71990-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71990-3002002 |
RT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71956-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002001 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001026 |
RT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71956-3002005 |
TT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002026 |
RT130,132,TT13#..GEN,PHL SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-20100 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-20100 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-20110 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-2005002 |
TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72525-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BLACK,BLACK,TRIM2# |
2 | ||
| 72526-1401002 |
RT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401001 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401006 |
RT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005005 |
TT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD) RH,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2006005 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2007002 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811-2006001 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2007001 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2007006 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2006002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2002005 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002001 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2005006 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2002002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005002 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005001 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2002005 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2002001 |
TT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2005006 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2002002 |
TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005002 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812-2005001 |
TT13#..(LB,SED)..RHD W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001002 |
TT13#..(LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3001016 |
TT13#..(LB,SED)..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001001 |
TT13#..(LB,SED)..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 73158 - BRACKET, SEAT BELT GUIDE SET | ||||
| 73158-20010 |
TT13#..(LB,SED)..RHD |
2 | ||
| 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER | ||||
| 73181-2002002 |
TT13#..(LB,SED)..RHD RH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 73181-2002016 |
TT13#..(LB,SED)..RHD RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 73181-2002001 |
TT13#..(LB,SED)..RHD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 73182-2001001 |
TT13#..(LB,SED)..RHD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 73182-2001002 |
TT13#..(LB,SED)..RHD LH,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 73182-2001016 |
TT13#..(LB,SED)..RHD LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10048 | ||||
| 90119-10111 | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90168-40036 | ||||
| 90467-11005 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 93540-54008 | ||||
| 93540-54014 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
