TT133L-TEKRS (1979)
Toyota Corona
(7809-8008)LHD ; (8008-8205)LHD..GEN,PHL

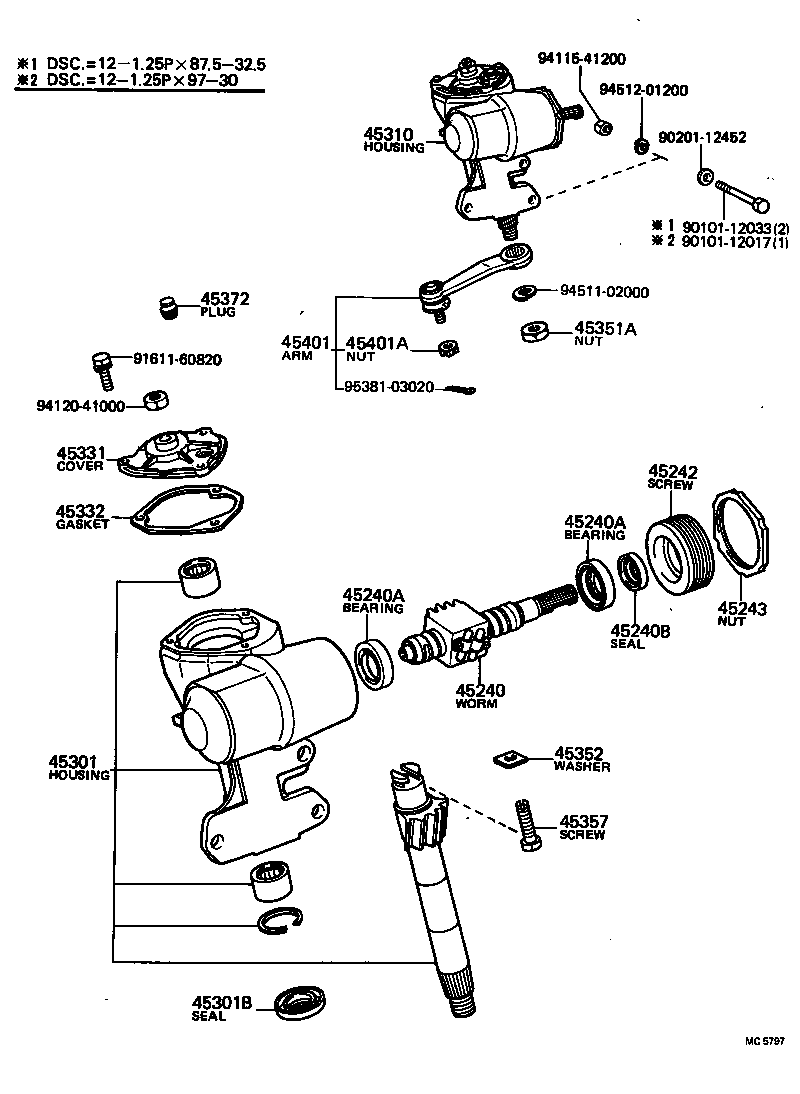

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22080 |
RT13#,TT13#..LHD KOYO |
1 | ||
| 45240-14040 |
RT13#,TT13#..LHD..(GEN,PHL) TOYOTA |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
RT13#,TT13#,XT130 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
RT13#,TT13#,XT130 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
RT13#,TT13#,XT130 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22060 |
RT130,132,TT13#..LHD KOYO |
1 | ||
| 45242-30050 |
RT13#,TT13#,XT130 TOYOTA |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
RT13#,TT13#,XT130 TOYOTA |
1 | ||
| 45243-22040 |
RT130,132,TT13#..LHD KOYO |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-14080 |
RT13#,TT13#..LHD..(GEN,PHL) TOYOTA |
1 | ||
| 45301-22080 |
RT130,132,TT13#..LHD..(GEN,PHL) KOYO |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RT130,132,TT13#..LHD..(GEN,PHL) |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-14100 |
RT130,132,TT13#..LHD..(GEN,PHL) TOYOTA |
1 | ||
| 45310-20220 |
RT130,132,TT13#..LHD..(GEN,PHL) KOYO |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22040 |
RT13#,TT13#..LHD KOYO |
1 | ||
| 45304-14030 |
RT130,132,TT13#..LHD..(GEN,PHL) TOYOTA |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
RT13#,TT13#,XT130 TOYOTA |
1 | ||
| 45332-20060 |
RT13#,TT13#..LHD KOYO |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RT13#,TT13#,XT130 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-12020 |
RT13#,TT13#,XT130 T=2.04,TOYOTA |
1 | ||
| 45352-12010 |
RT13#,TT13#,XT130 T=2.00,TOYOTA |
1 | ||
| 45352-20010 |
RT13#,TT13#..LHD T=2.00,T=2.00,KOYO |
1 | ||
| 45352-12030 |
RT13#,TT13#,XT130 T=2.08,TOYOTA |
1 | ||
| 45352-12040 |
RT13#,TT13#,XT130 T=2.12,TOYOTA |
1 | ||
| 45354-20010 |
RT13#,TT13#..LHD T=2.05,T=2.05,KOYO |
1 | ||
| 45355-20010 |
RT13#,TT13#..LHD T=2.10,T=2.10,KOYO |
1 | ||
| 45353-20010 |
RT13#,TT13#..LHD T=1.95,T=1.95,KOYO |
1 | ||
| 45352-12060 |
RT13#,TT13#,XT130 T=2.20,TOYOTA |
1 | ||
| 45352-12050 |
RT13#,TT13#,XT130 T=2.16,TOYOTA |
1 | ||
| 45356-20010 |
RT13#,TT13#..LHD T=2.15,T=2.15,KOYO |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
RT13#,TT13#,XT130 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RT13#,TT13#,XT130 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19125 |
RT13#,TT13#,XT130 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RT13#,TT13#,XT130 |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90201-12452 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

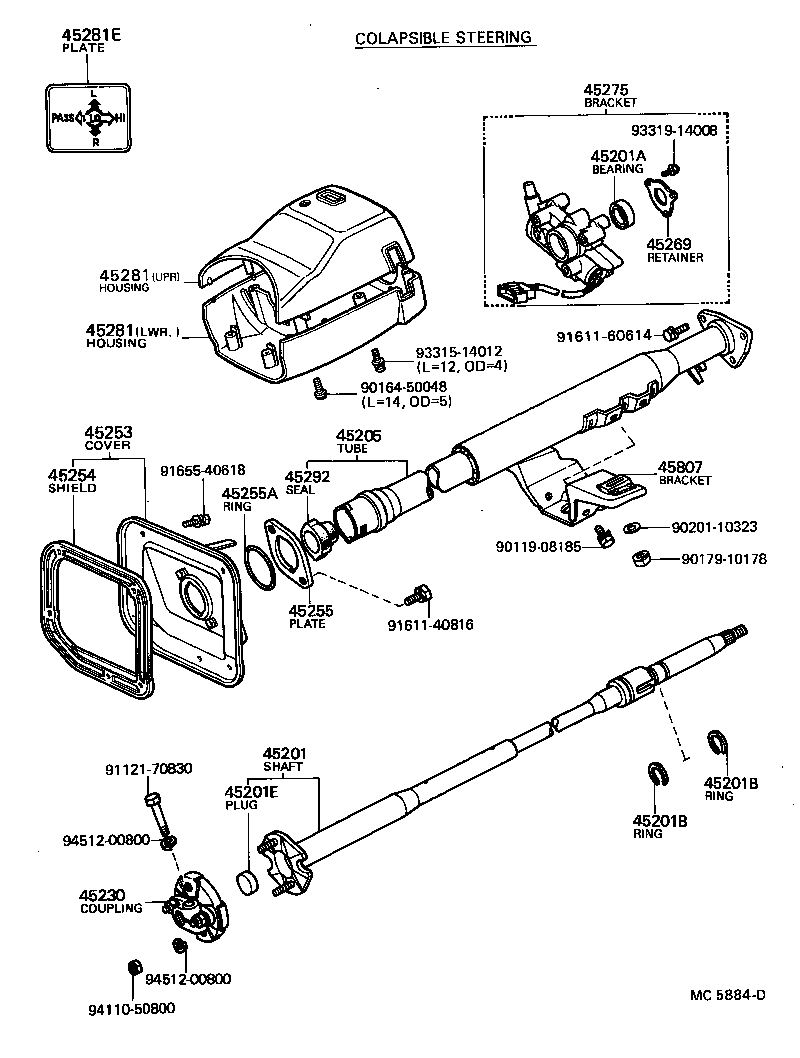

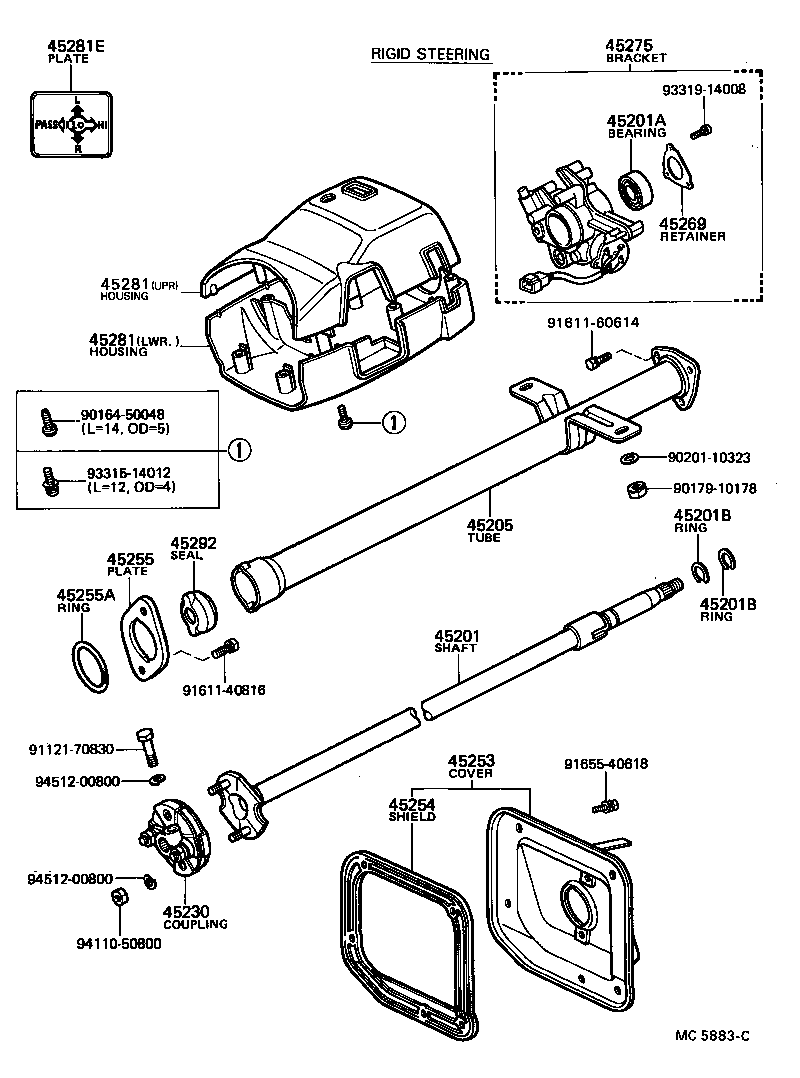

(7809-8112)RT130,TT133
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-20170 |
RT130,TT133 W/RIGID STEERING |
1 | ||
| 45210-20080 |
XT130;RT130,132,TT13#..EUR,GEN,PHL W/COLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
XT130;RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13#,TT13#,XT130 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
XT130;RT130,132,TT13#..EUR,GEN,PHL T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13#,TT13#,XT130 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
XT130;RT130,132,TT13#..EUR,GEN,PHL T=1.35-1.45,T=1.4 |
2 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22080 |
RT130,132,TT13#..EUR,GEN,PHL W/COLAPSIBLE STEERING |
1 | ||
| 45205-20110 |
RT130,TT133..LHD W/RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
RT13#,TT13#,XT130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
RT13#,TT13#,XT130 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT13#,TT13#,XT130 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
XT130;RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30181 |
RT130,132,TT13#..LHD |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
RT13#,TT13#..LHD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-20020 |
RT130,TT133 RIGID |
1 | ||
| 45292-22050 |
RT13#,TT13#,XT130 COLAPSIBLE |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91655-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
(7809-8205)XT130 ; (7809-8205)EUR,GEN,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-20170 |
RT130,TT133 W/RIGID STEERING |
1 | ||
| 45210-20080 |
XT130;RT130,132,TT13#..EUR,GEN,PHL W/COLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
XT130;RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13#,TT13#,XT130 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
XT130;RT130,132,TT13#..EUR,GEN,PHL T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13#,TT13#,XT130 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
XT130;RT130,132,TT13#..EUR,GEN,PHL T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
XT130;RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22080 |
RT130,132,TT13#..EUR,GEN,PHL W/COLAPSIBLE STEERING |
1 | ||
| 45205-20110 |
RT130,TT133..LHD W/RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
RT13#,TT13#,XT130 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
RT13#,TT13#,XT130 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT13#,TT13#,XT130 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
XT130;RT130,132,TT13#..EUR,GEN,PHL |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30181 |
RT130,132,TT13#..LHD |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
RT13#,TT13#..LHD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-20020 |
RT130,TT133 RIGID |
1 | ||
| 45292-22050 |
RT13#,TT13#,XT130 COLAPSIBLE |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-20070 |
RT130,132,TT13#..LHD COLAPSIBLE |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91655-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
