TT132RG-TWKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )WG

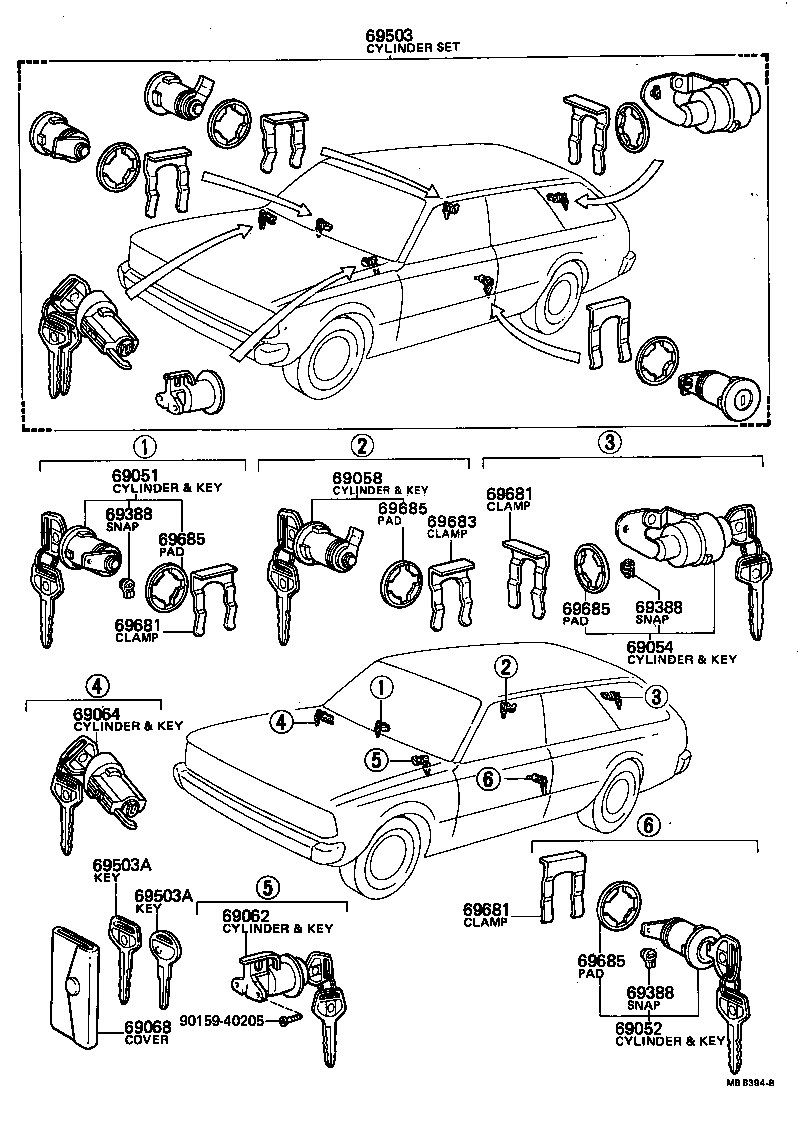

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69681 69681 69681 69683 69685 69685 69685 69685 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29285

RT13#,TT13#,XT130..WG

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-29285

RT13#,TT13#,XT130..WG

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-91255

RT13#,TT132..WG

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-29055

RT130,132,TT13#,XT130..WG

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-15010

TT132..DLX..LEF

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-91600

RT130,132,TT13#,XT130..WG

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

RT13#,TT13#,XT130

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
64949-21020

RT130,132,TT13#,XT130..WG

BACK DOOR

 1
69377-30020

RT13#,TT13#,XT130

FR DOOR

 4
69388 - SNAP, ROD(FOR DOOR LOCK)
64949-21020

RT130,132,TT13#,XT130..WG

BACK DOOR

 1
69377-30020

RT13#,TT13#,XT130

FR DOOR

 4
69388 - SNAP, ROD(FOR DOOR LOCK)
64949-21020

RT130,132,TT13#,XT130..WG

BACK DOOR

 1
69377-30020

RT13#,TT13#,XT130

FR DOOR

 4
69503 - CYLINDER SET, LOCK
69005-29345

TT132..DLX..LEF

 1
69503A - KEY, BLANK
90999-00071

TT132..DLX..LEF;XT130..(3FC,4F)..LEF

SUB KEY,SUB KEY

 1
90999-00067

RT130,132,TT13#,XT130..WG

MASTER KEY,MASTER KEY

 2
69503A - KEY, BLANK
90999-00071

TT132..DLX..LEF;XT130..(3FC,4F)..LEF

SUB KEY,SUB KEY

 1
90999-00067

RT130,132,TT13#,XT130..WG

MASTER KEY,MASTER KEY

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

RT13#,TT13#,XT130

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

RT13#,TT13#,XT130

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

RT13#,TT13#,XT130

 3
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

RT13#,TT132..WG

 1
69685 - PAD, LOCK CYLINDER
69685-12010

RT13#,TT13#,XT130

FR DOOR & LUGGAGE

 3
69685-12010

RT130,132,TT13#,XT130..WG

FUEL DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

RT13#,TT13#,XT130

FR DOOR & LUGGAGE

 3
69685-12010

RT130,132,TT13#,XT130..WG

FUEL DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

RT13#,TT13#,XT130

FR DOOR & LUGGAGE

 3
69685-12010

RT130,132,TT13#,XT130..WG

FUEL DOOR

 1
69685 - PAD, LOCK CYLINDER
69685-12010

RT13#,TT13#,XT130

FR DOOR & LUGGAGE

 3
69685-12010

RT130,132,TT13#,XT130..WG

FUEL DOOR

 1
Common parts
90159-40205
