TT132RG-TWHDS (1978)
Toyota Corona
(7809-8205)RT130,132,TT13#..WG

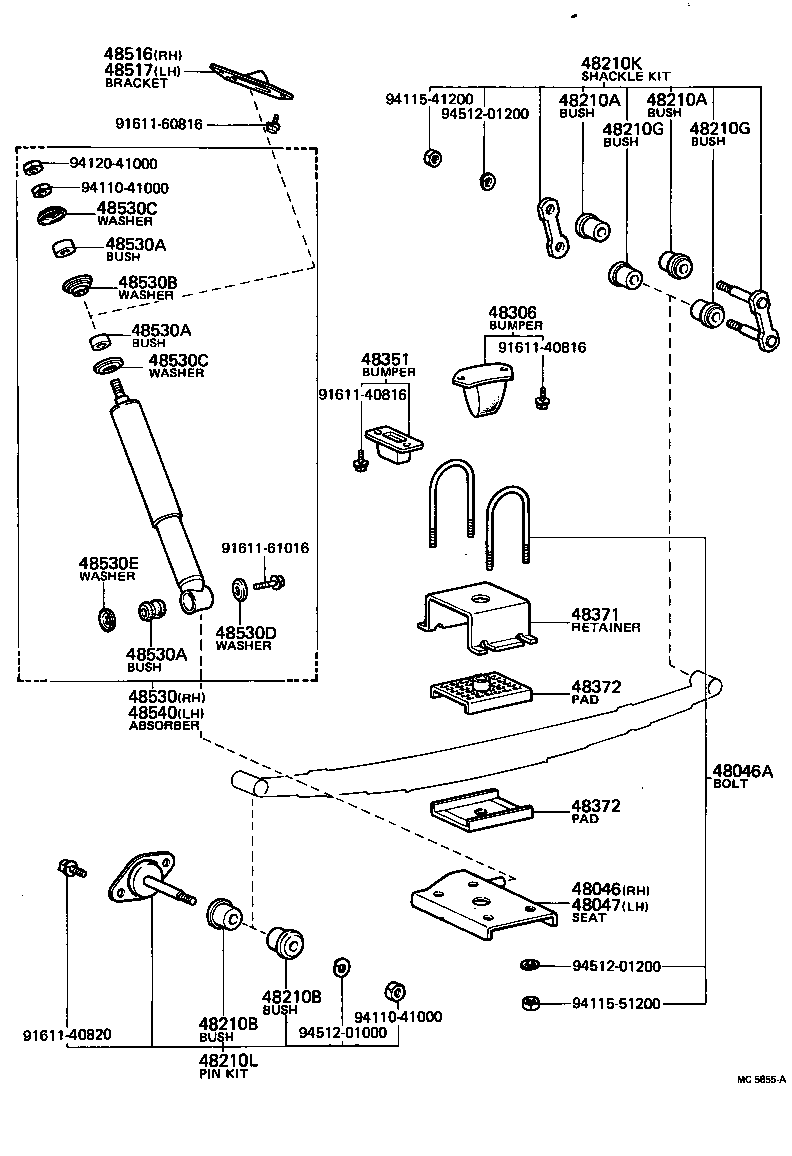

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-23040 |
RT130,132,TT13#,XT130..WG |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-12050 |
RT130,132,TT13#,XT130..WG |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-23030 |
RT130,132,TT13#,XT130..WG |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15070 |
RT13#,TT13#,XT130..WG |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15070 |
RT13#,TT13#,XT130..WG |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13002 |
RT130,132,TT13#..WG |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13002 |
RT130,132,TT13#..WG |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15070 |
RT13#,TT13#,XT130..WG |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-15070 |
RT13#,TT13#,XT130..WG |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-21010 |
RT13#,TT13#,XT130..WG |
1 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-22020 |
RT130,132,TT13#..WG |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-29015 |
RT130,132,TT13#..WG |
2 | ||
| 48306-29015 |
RT13#,TT13#,XT130..WG |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-19025 |
RT13#,TT13#,XT130..WG |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-21031 |
RT130,132,TT13#,XT130..WG |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
RT130,132,TT13#,XT130..WG |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
RT130,132,TT13#,XT130..WG |
4 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-21010 |
RT130,132,TT13#..WG |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48517-21010 |
RT130,132,TT13#..WG |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29565 |
RT130,132,TT13#..WG |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 90540-10004 |
RT13#,TT13#,XT130..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90540-10002 |
RT13#,TT13#..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90948-01003 |
RT130,132,TT13#..WG UPR |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 90540-10004 |
RT13#,TT13#,XT130..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90540-10002 |
RT13#,TT13#..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90948-01003 |
RT130,132,TT13#..WG UPR |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 90540-10004 |
RT13#,TT13#,XT130..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90540-10002 |
RT13#,TT13#..ARL,GEN,PHL UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90948-01003 |
RT130,132,TT13#..WG UPR |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
RT13#,TT13#,XT130 |
2 | ||
| 90948-02050 |
RT13#,TT13# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02045 |
RT13#,TT13#,XT130 UPR,ID=14 |
2 | ||
| 90948-02002 |
RT13#,TT13#,XT130 LWR,ID=10.5 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02045 |
RT13#,TT13#,XT130 UPR,ID=14 |
2 | ||
| 90948-02002 |
RT13#,TT13#,XT130 LWR,ID=10.5 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
RT13#,TT13#,XT130 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RT13#,TT13#,XT130 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29565 |
RT130,132,TT13#..WG |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||

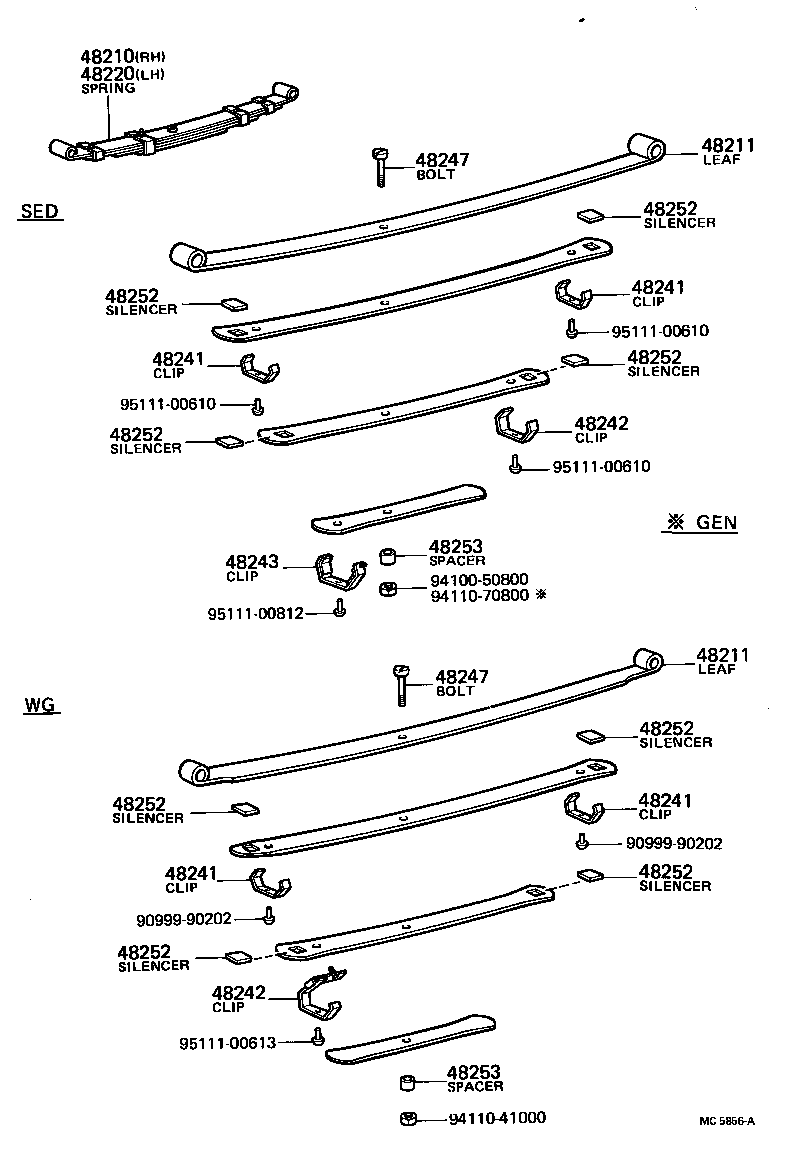

(7809-8205)LEF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-21160 |
RT130,132,TT13#..WG |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-21160 |
RT130,132,TT13#..WG |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-21160 |
RT130,132,TT13#..WG |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-21160 |
RT130,132,TT13#..WG |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT130,132,TT13#..WG |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT130,132,TT13#..WG |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT130,132,TT13#..WG |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-21060 |
RT130,132,TT13#..WG |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-21160 |
RT130,132,TT13#..WG |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-21160 |
RT130,132,TT13#..WG |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-21110 |
RT130,132,TT13#..WG |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-21110 |
RT130,132,TT13#..WG |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-21150 |
RT130,132,TT13#..WG |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-21100 |
RT130,132,TT13#..WG |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-21100 |
RT130,132,TT13#..WG |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94100-50800 | ||||
| 94110-41000 | ||||
| 94110-70800 | ||||
| 95111-00610 | ||||
| 95111-00613 | ||||
| 95111-00812 | ||||
