TT132R-TSMDS (1980)
Toyota Corona
Production
Aug 1980
-
Dec 1981
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8112)HT

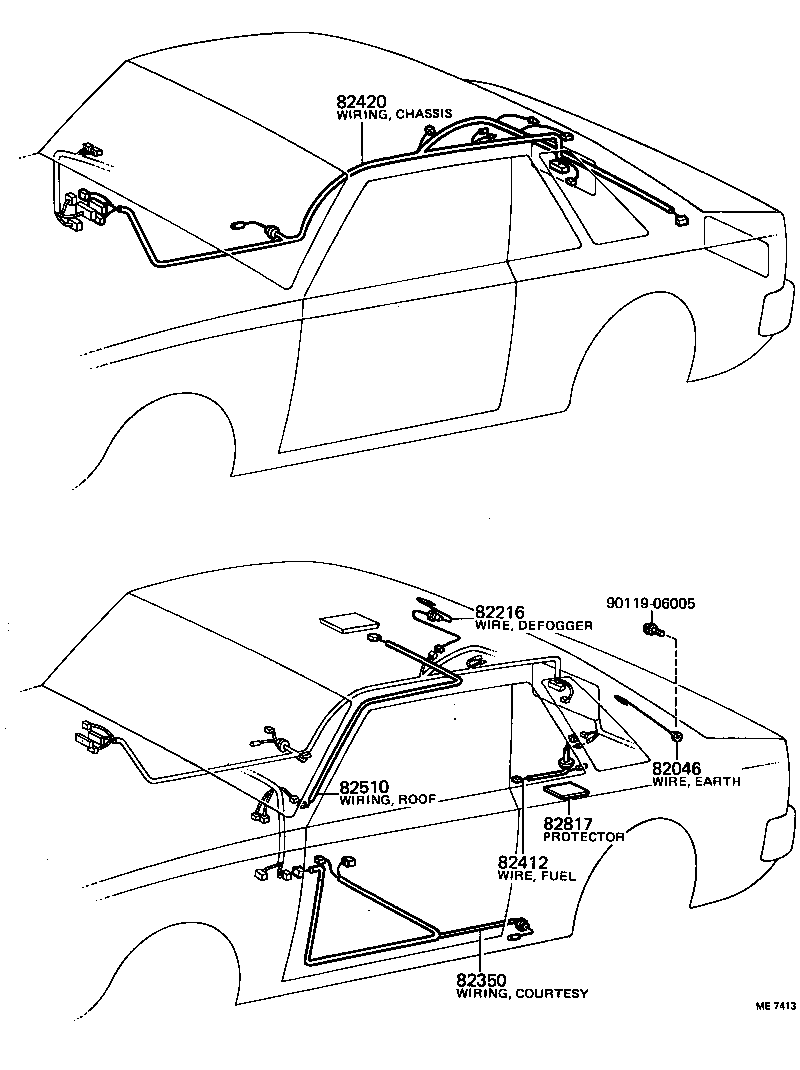

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-95500 |
RT132,TT132..HT |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-95500 |
RT132,TT132..HT |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 84232-95502 |
RT132,TT132..HT |
1 | ||
| 82350-95502 |
TT132..HT |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20061 |
RT13#,TT132..HT,SED |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-95512 |
TT132..HT |
1 | ||
| 82420-95508 |
TT132..HT |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-95501 |
RT132,TT132..HT |
1 | ||
| 82510-95502 |
TT132..HT |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-21030 |
TT132..HT L=100 |
2 | ||
| 82817-20160 |
RT13#,TT13#,XT130..HT,SED L=120X170 |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
(8104- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-22010 | ||||
| 82984-22010 | ||||
