TT132R-TLMDS (1978)
Toyota Corona
Production
Sep 1978
-
Dec 1981
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )RT133,TT13#,XT130..RHD

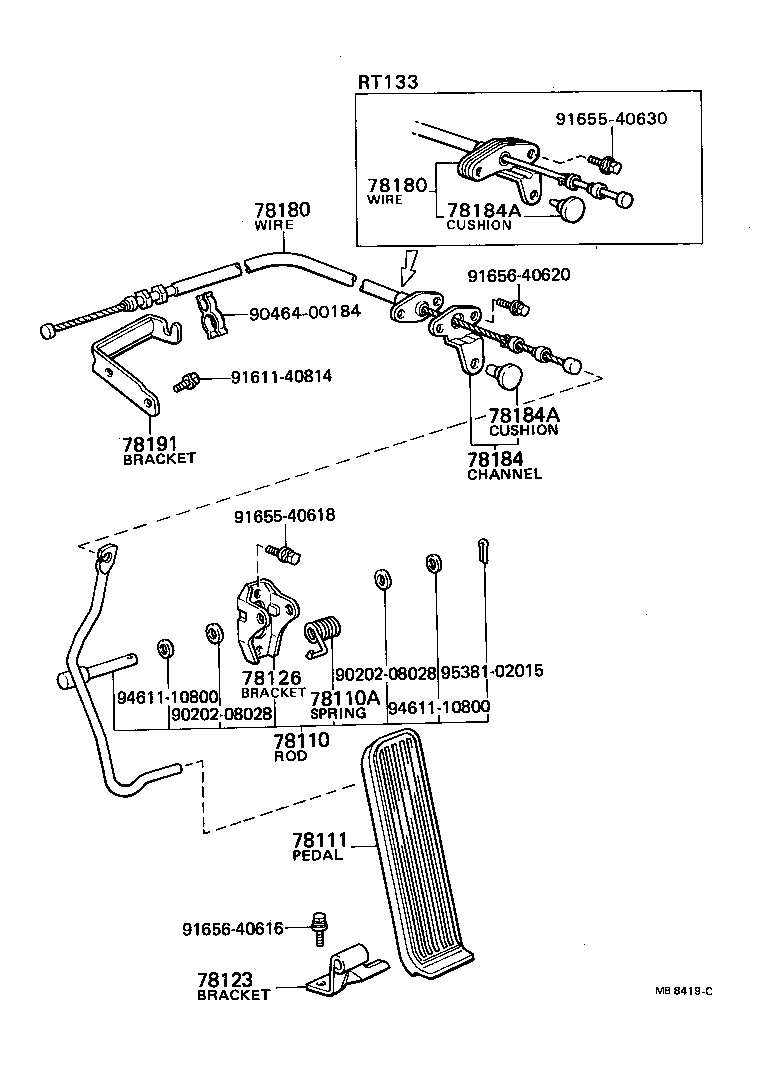

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20100 |
RT130,132..RHD |
1 | ||
| 78120-20050 |
TT13#,XT130..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26022 |
RT130,132..RHD |
1 | ||
| 90508-20015 |
TT13#..RHD;RT133,XT130 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-14010 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-14010 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 78126 - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78126-20030 |
RT133;RT130,132..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20140 |
TT13#..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20140 |
TT13#..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-20100 |
TT13#,XT130..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
RT133,TT13#,XT130 |
2 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
RT133,TT13#,XT130 |
2 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12050 |
TT13#..RHD |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90464-00184 | ||||
| 91611-40814 | ||||
| 91655-40618 | ||||
| 91655-40630 | ||||
| 91656-40616 | ||||
| 91656-40620 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
