TT132R-TLMDS (1978)
Toyota Corona
Production
Sep 1978
-
Dec 1981
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

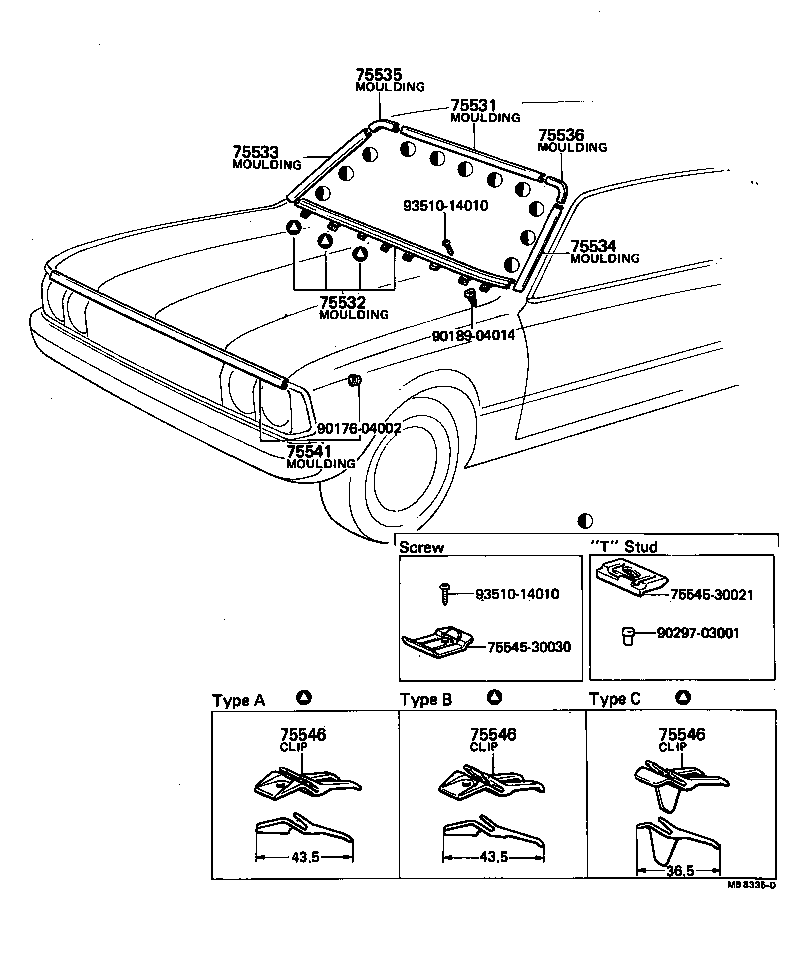

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-20180 |
RT132,133,TT132..HT,LB |
1 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75504-20010 |
RT13#,TT13#,XT130 |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75533-20170 |
RT132,133,TT132..HT,LB |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75534-20180 |
RT132,133,TT132..HT,LB |
1 | ||
| 75535 - MOULDING, WINDSHIELD CORNER, UPPER RH | ||||
| 75541-20040 |
RT132,133,TT132..LB |
1 | ||
| 75536 - MOULDING, WINDSHIELD CORNER, UPPER LH | ||||
| 75542-20030 |
RT132,133,TT132..LB |
1 | ||
| 75541 - MOULDING, HOOD, FRONT | ||||
| 75770-29056 |
RT13#,TT13#,XT130 |
1 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75546-20010 |
RT13#,TT13#,XT130 TYPE A,BLACK |
4 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75546-20010 |
RT13#,TT13#,XT130 TYPE A,BLACK |
4 | ||
| 75546 - CLIP, WINDSHIELD OUTSIDE MOULDING | ||||
| 75546-20010 |
RT13#,TT13#,XT130 TYPE A,BLACK |
4 | ||
| Common parts | ||||
| 75545-30021 | ||||
| 75545-30030 | ||||
| 90176-04002 | ||||
| 90189-04014 | ||||
| 90297-03001 | ||||
| 93510-14010 | ||||
