TT132R-TLKNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )RT13#,TT13#..RHD

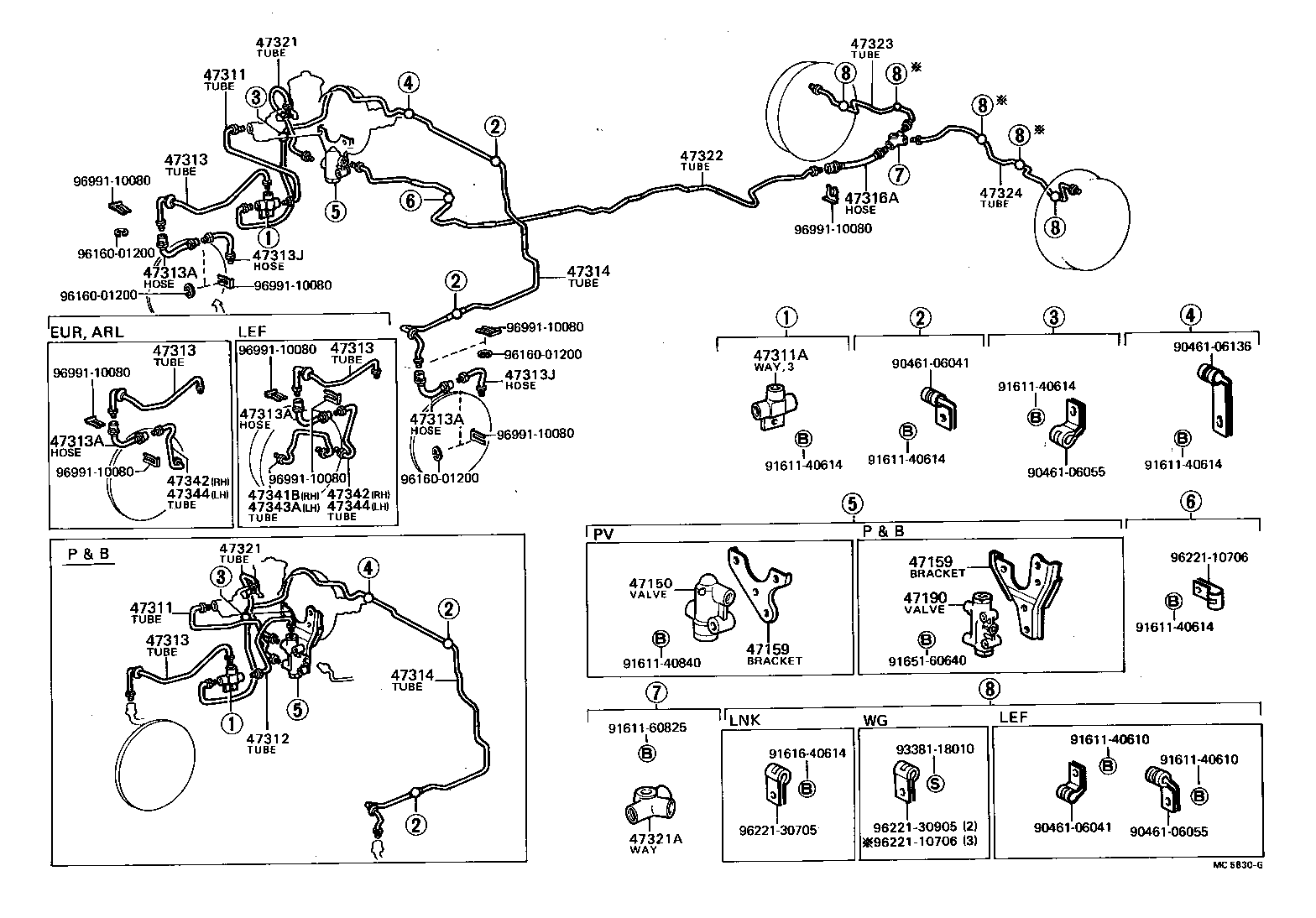

Click highlighted areas on diagram

diagram 47150 47159 47159 47190 47311 47311 47311A 47312 47313 47313 47313 47313 47313A 47313A 47313A 47313A 47313J 47313J 47314 47314 47316A 47321 47321 47321A 47322 47323 47324 47341B 47342 47342 47343A 47344 47344 9046106041 9046106041 9046106055 9046106055 9046106136 9161140610 9161140610 9161140614 9161140614 9161140614 9161140614 9161140614 9161140614 9161140840 9161160825 9165160640 9338118010 9616001200 9616001200 9616001200 9616001200 9622110706 9622110706 9622130705 9622130905 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-20120

RT132,TT132..RHD..(ARL,EUR)

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-20120

RT132,TT132..RHD..(ARL,EUR)

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-12010

RT132,TT132..RHD..(ARL,EUR)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20320

RT132,TT132..RHD..(ARL,EUR)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20320

RT132,TT132..RHD..(ARL,EUR)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

RT13#,TT13#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20070

RT132,133..ARL;TT132..RHD..EUR

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20140

RT133;RT130,132,TT13#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20140

RT133;RT130,132,TT13#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20140

RT133;RT130,132,TT13#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20140

RT133;RT130,132,TT13#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02385

RT132,TT132..ARL,EUR

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02385

RT132,TT132..ARL,EUR

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02385

RT132,TT132..ARL,EUR

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02385

RT132,TT132..ARL,EUR

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20120

TT13#..RHD

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-20120

TT13#..RHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02394

RT13#,TT132..HT,LB,SED

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20020

RT132,TT132..RHD..(ARL,EUR)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20020

RT132,TT132..RHD..(ARL,EUR)

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10098

RT13#,TT13#..HT,LB,SED

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20040

RT132,TT132..RHD..(ARL,EUR)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-14040

RT13#,TT13#..LNK

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-14050

RT13#,TT13#..LNK

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-20040

RT132,TT132..ARL,EUR

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-20040

RT132,TT132..ARL,EUR

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-20020

RT132,TT132..ARL,EUR

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-20020

RT132,TT132..ARL,EUR

 1
Common parts
90461-06041
90461-06055
90461-06136
91611-40610
91611-40614
91611-40840
91611-60825
91651-60640
93381-18010
96160-01200
96221-10706
96221-30705
96221-30905
96991-10080
