TT132R-TLHNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)LB

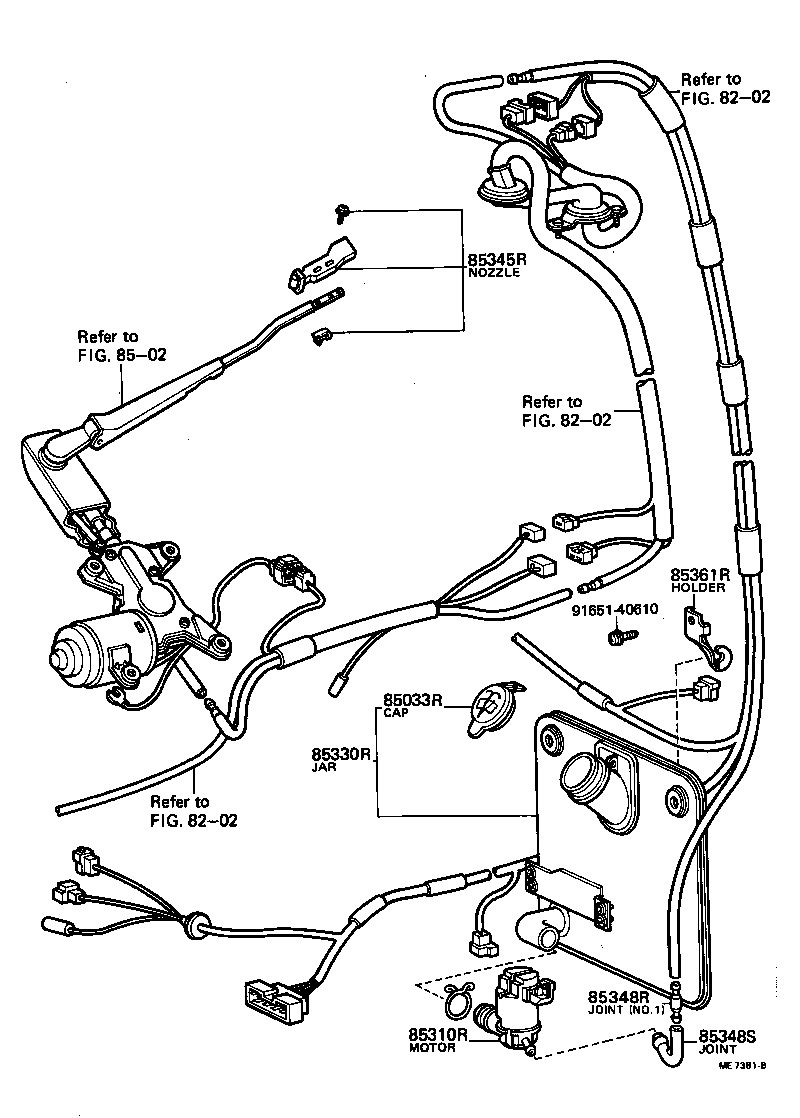

Click highlighted areas on diagram

diagram 8202 8202 8202 8502 85033R 85310R 85330R 85345R 85348R 85348S 85361R 9165140610
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-22010

RT132,TT132..LB

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

RT132,TT132..LB

 1
85330R - JAR ASSY, REAR WASHER
85330-20250

RT132,TT132..LB

 1
85345R - NOZZLE, REAR WASHER
85035-14110

RT132,TT132..LB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20070

RT132,TT132..LB

 1
85361R - HOLDER, REAR WASHER
74466-20010

RT132,TT132..LB

 1
Common parts
91651-40610
Linked diagrams
8202
8502
