TT132R-TLHDS (1980)
Toyota Corona
Production
Aug 1980
-
Dec 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8112)LB

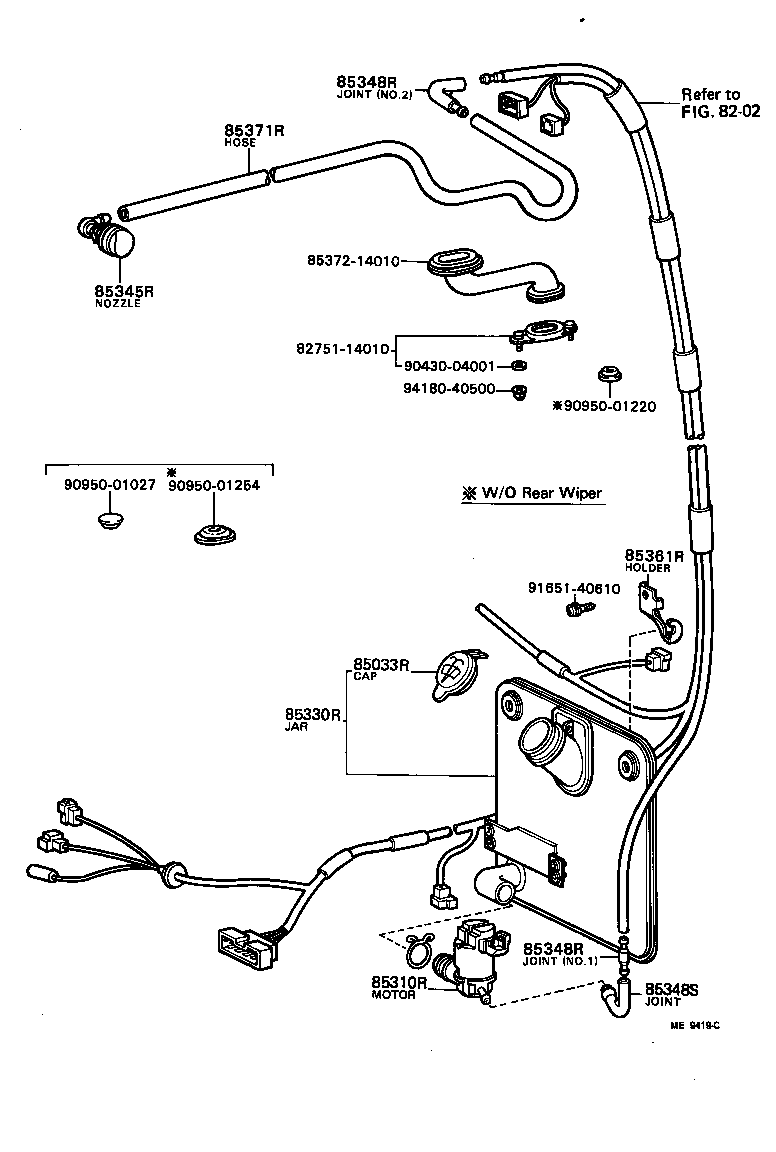

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85332-20070 |
RT132,TT132..LB |
1 | ||
| 85033-22010 |
RT132,TT132..LB |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
RT132,TT132..LB |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-20251 |
RT132,133,TT132..LB |
1 | ||
| 85330-20250 |
RT132,TT132..LB |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-14060 |
RT132,133,TT132..LB |
1 | ||
| 85035-14110 |
RT132,TT132..LB |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
RT13#,TT132..ARL,GEN,PHL NO.1 |
4 | ||
| 85355-20080 |
RT132,TT132..LB NO.2 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
RT13#,TT132..ARL,GEN,PHL NO.1 |
4 | ||
| 85355-20080 |
RT132,TT132..LB NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
RT132,TT132..LB |
1 | ||
| 85361R - HOLDER, REAR WASHER | ||||
| 74466-20010 |
RT132,TT132..LB |
1 | ||
| 74466-20020 |
RT132,133,TT132..LB |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
RT132,TT132..LB *H,L=320 |
1 | ||
| Common parts | ||||
| 82751-14010 | ||||
| 85372-14010 | ||||
| 90430-04001 | ||||
| 90950-01027 | ||||
| 90950-01220 | ||||
| 90950-01254 | ||||
| 91651-40610 | ||||
| 94180-40500 | ||||
| Linked diagrams | ||||
| 8202 | ||||
