TT132R-TLHDS (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)RT132,TT132..3FC

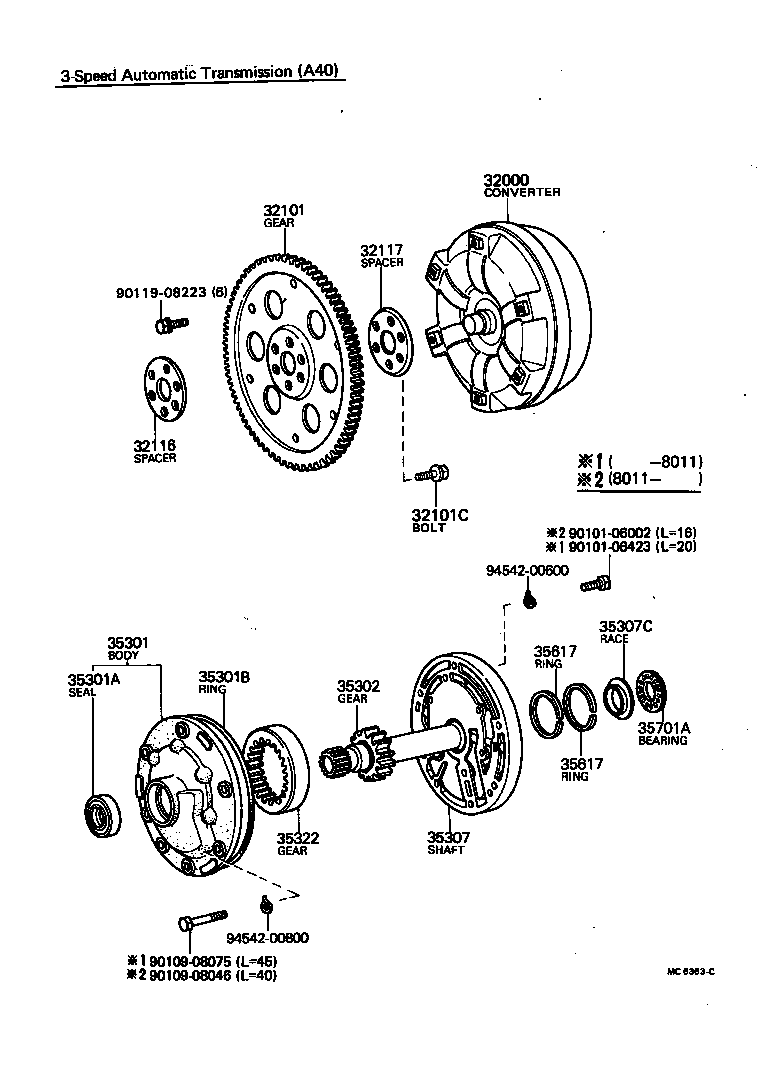

Click highlighted areas on diagram

diagram 32000 32101 32101C 32116 32117 35301 35301A 35301B 35302 35307 35307C 35322 35617 35617 35701A 9010106002 9010106423 9010908046 9010908075 9011908223 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-14040

TT132..3FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14030

TT132..3FC

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10046

TT132..3FC

*10-1.25PX23-15.5

 6
90105-10006

RT132,TT132..3FC

*10-1.25X23-14.5

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14011

TT132..3FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14011

TT132..3FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

RT132,133,TT132..ATM

 1
35301-22011

TT132..3FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

RT132,133,TT132..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
35147-22010

TT132..3FC

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

RT132,133,TT132..ATM

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-22011

TT132..3FC

 1
35307-22011

TT132..3FC

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

RT132,133,TT132..ATM

T=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

RT132,133,TT132..ATM

T=15.286-15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22011

TT132..3FC

 2
35617-22010

RT132,TT132..3FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22011

TT132..3FC

 2
35617-22010

RT132,TT132..3FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

RT132,133,TT132..ATM

 1
Common parts
90101-06002
90101-06423
90109-08046
90109-08075
90119-08223
94542-00600
94542-00800
