TT132R-TEKRS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

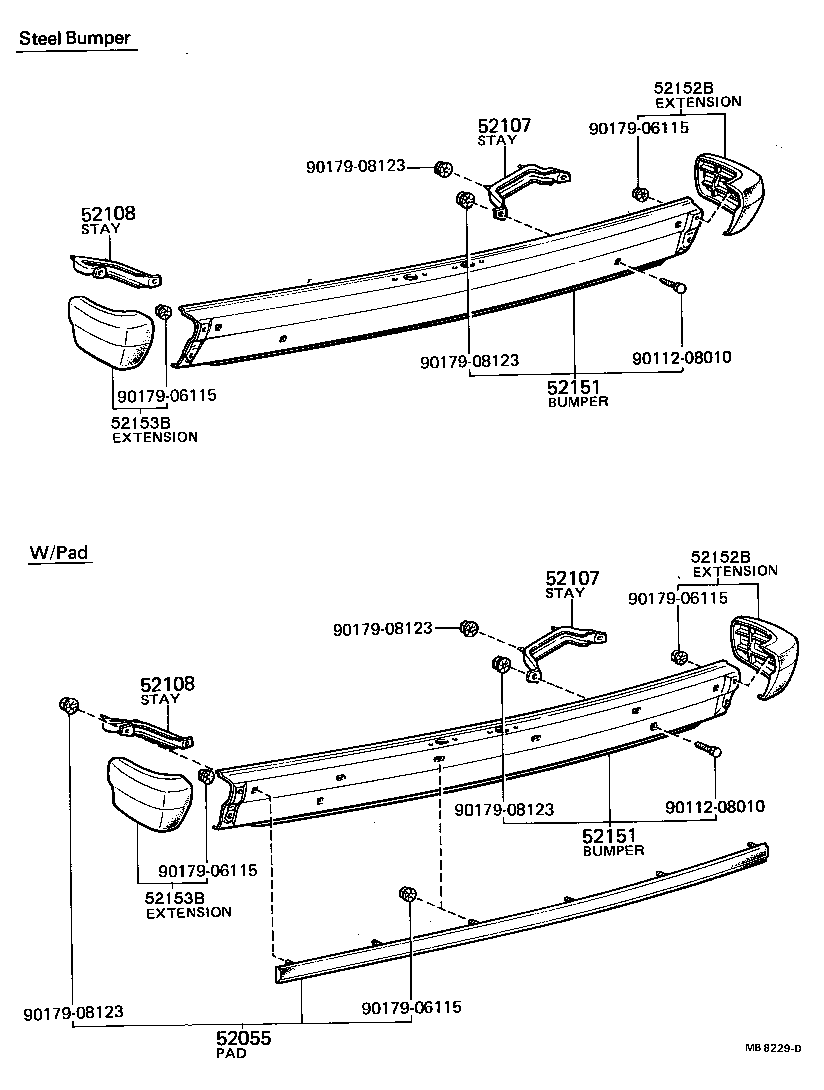

(7809-8008)HT,LB,SED ; (8008-8111)XT130..LNK
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52055 - PAD SUB-ASSY, REAR BUMPER | ||||
| 52055-29045 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52181-20070 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52181-20070 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52182-20070 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52182-20070 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29315 |
RT13#,TT13#,XT130..(LB,SED)..(DLX,STD) |
1 | ||
| 52151-29325 |
RT13#,TT13#,XT130..LB,SED W/PAD |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29315 |
RT13#,TT13#,XT130..(LB,SED)..(DLX,STD) |
1 | ||
| 52151-29325 |
RT13#,TT13#,XT130..LB,SED W/PAD |
1 | ||
| Common parts | ||||
| 90112-08010 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||

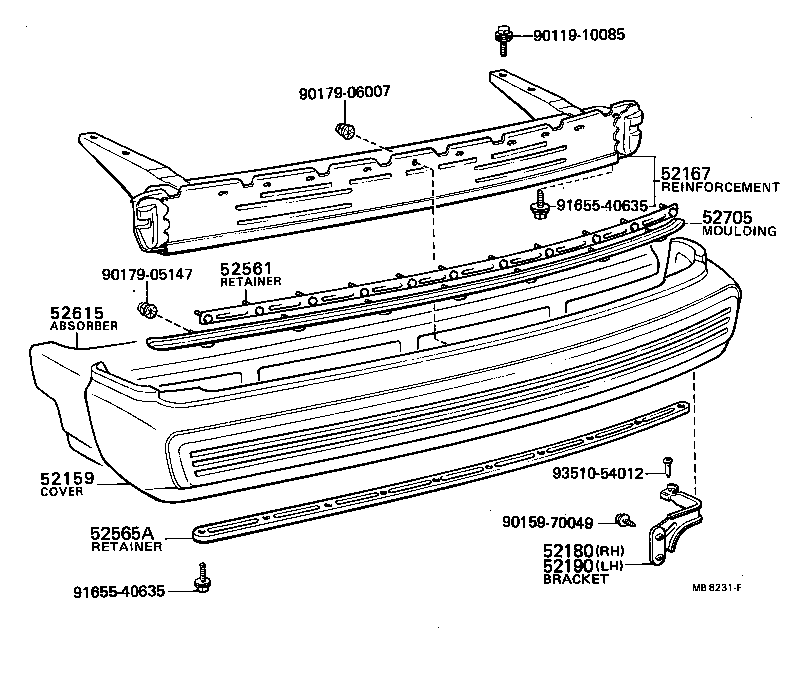

(7906-8008)HT,LB..5F..GEN ; (7912-8008)RT132..HT; (7912-8008)RT130..SED ; (7912-80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10085 | ||||
| 90159-70049 | ||||
| 90179-05147 | ||||
| 90179-06007 | ||||
| 91655-40635 | ||||
| 93510-54012 | ||||
