TT132R-TEHRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

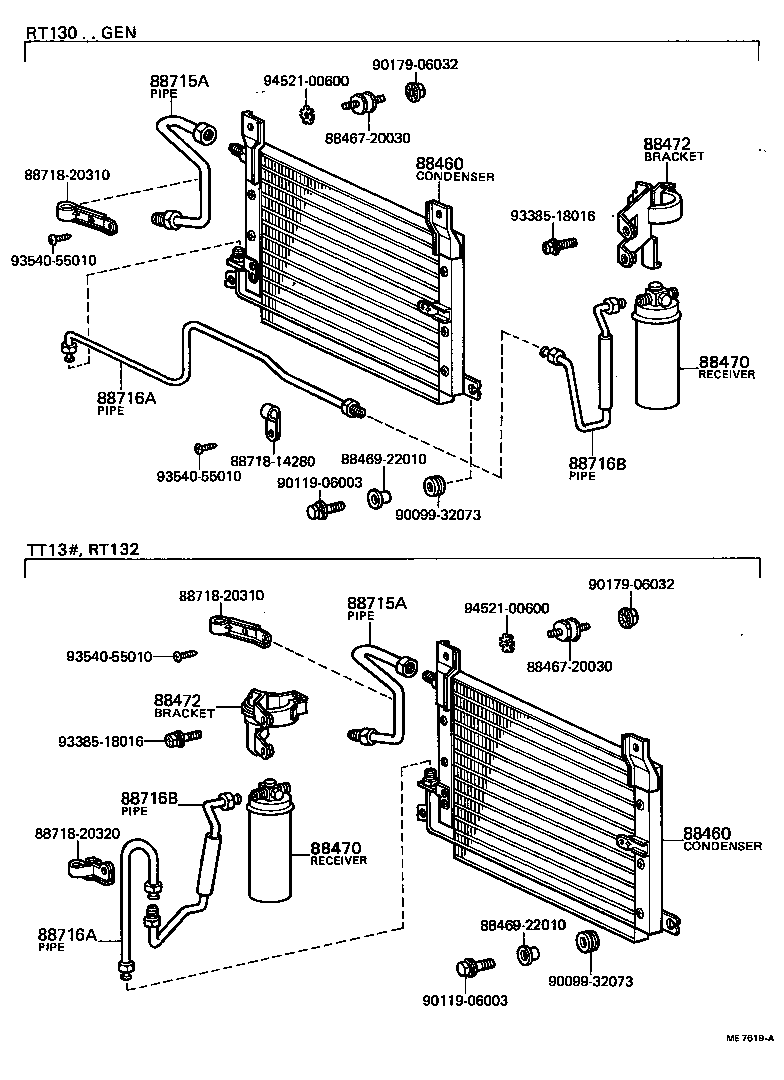

Click highlighted areas on diagram

diagram 88460 88460 8846720030 8846720030 8846922010 8846922010 88470 88470 88472 88472 88715A 88715A 88716A 88716A 88716B 88716B 8871814280 8871820310 8871820310 8871820320 9009932073 9009932073 9011906003 9011906003 9017906032 9017906032 9338518016 9338518016 9354055010 9354055010 9354055010 9452100600 9452100600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20140

RT13#,TT13#..ARL,EUR,GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-20140

RT13#,TT13#..ARL,EUR,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

RT13#,TT13#..ARL,EUR,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

RT13#,TT13#..ARL,EUR,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20070

RT132,TT13#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20070

RT132,TT13#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20100

TT13#;RT132..ARL

 1
88715-20090

RT13#,TT13#..ARL,EUR,GEN

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20100

TT13#;RT132..ARL

 1
88715-20090

RT13#,TT13#..ARL,EUR,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20560

TT13#;RT132..ARL

 1
88716-20410

RT132,TT13#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20560

TT13#;RT132..ARL

 1
88716-20410

RT132,TT13#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20420

RT132,TT13#

 1
88716-20570

TT13#;RT132..ARL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20420

RT132,TT13#

 1
88716-20570

TT13#;RT132..ARL

 1
Common parts
88467-20030
88469-22010
88718-14280
88718-20310
88718-20320
90099-32073
90119-06003
90179-06032
93385-18016
93540-55010
94521-00600

(7809-8112)RT132,133,TT13#..RHD

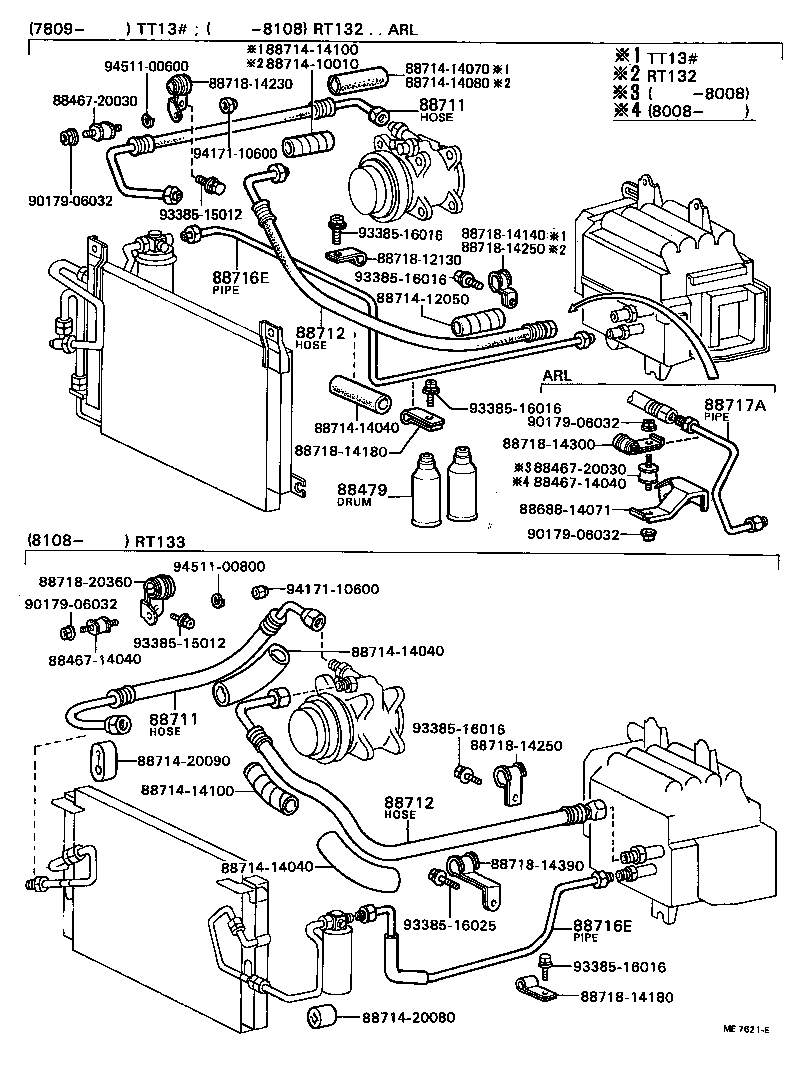

Click highlighted areas on diagram

diagram 8846714040 8846714040 8846720030 8846720030 88479 8868814071 88711 88711 88712 88712 8871410010 8871412050 8871414040 8871414040 8871414040 8871414070 8871414080 8871414100 8871414100 8871420080 8871420090 88716E 88716E 88717A 8871812130 8871814140 8871814180 8871814180 8871814230 8871814250 8871814250 8871814300 8871814390 8871820360 9017906032 9017906032 9017906032 9017906032 9338515012 9338515012 9338516016 9338516016 9338516016 9338516016 9338516025 9388516016 9417110600 9417110600 9451100600 9451100800
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

RT13#,TT13#..ARL,EUR,GEN

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20220

TT13#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20220

TT13#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14340

TT13#..RHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14340

TT13#..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14431

RT132,TT13#..RHD

 1
88716-20610

RT132,TT13#..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14431

RT132,TT13#..RHD

 1
88716-20610

RT132,TT13#..RHD

 1
Common parts
88467-14040
88467-20030
88688-14071
88714-10010
88714-12050
88714-14040
88714-14070
88714-14080
88714-14100
88714-20080
88714-20090
88718-12130
88718-14140
88718-14180
88718-14230
88718-14250
88718-14300
88718-14390
88718-20360
90179-06032
93385-15012
93385-16016
93385-16025
93885-16016
94171-10600
94511-00600
94511-00800

(8008- )

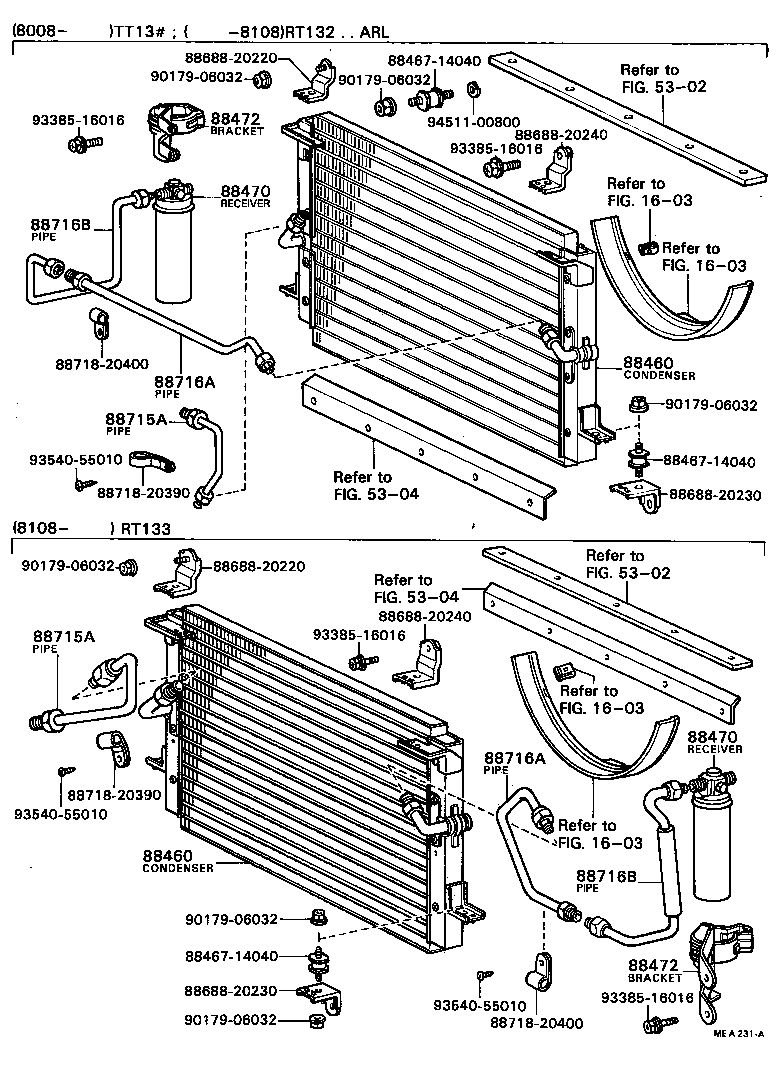

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 5302 5302 5304 5304 88460 88460 8846714040 8846714040 8846714040 88470 88470 88472 88472 8868820220 8868820220 8868820230 8868820230 8868820240 8868820240 88715A 88715A 88716A 88716A 88716B 88716B 8871820390 8871820390 8871820400 8871820400 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9338516016 9338516016 9338516016 9338516016 9354055010 9354055010 9354055010 9451100800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20140

RT13#,TT13#..ARL,EUR,GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-20140

RT13#,TT13#..ARL,EUR,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

RT13#,TT13#..ARL,EUR,GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

RT13#,TT13#..ARL,EUR,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20070

RT132,TT13#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20070

RT132,TT13#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20100

TT13#;RT132..ARL

 1
88715-20090

RT13#,TT13#..ARL,EUR,GEN

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20090

RT13#,TT13#..ARL,EUR,GEN

 1
88715-20100

TT13#;RT132..ARL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20560

TT13#;RT132..ARL

 1
88716-20410

RT132,TT13#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20560

TT13#;RT132..ARL

 1
88716-20410

RT132,TT13#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20420

RT132,TT13#

 1
88716-20570

TT13#;RT132..ARL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20420

RT132,TT13#

 1
88716-20570

TT13#;RT132..ARL

 1
Common parts
88467-14040
88688-20220
88688-20230
88688-20240
88718-20390
88718-20400
90179-06032
93385-16016
93540-55010
94511-00800
