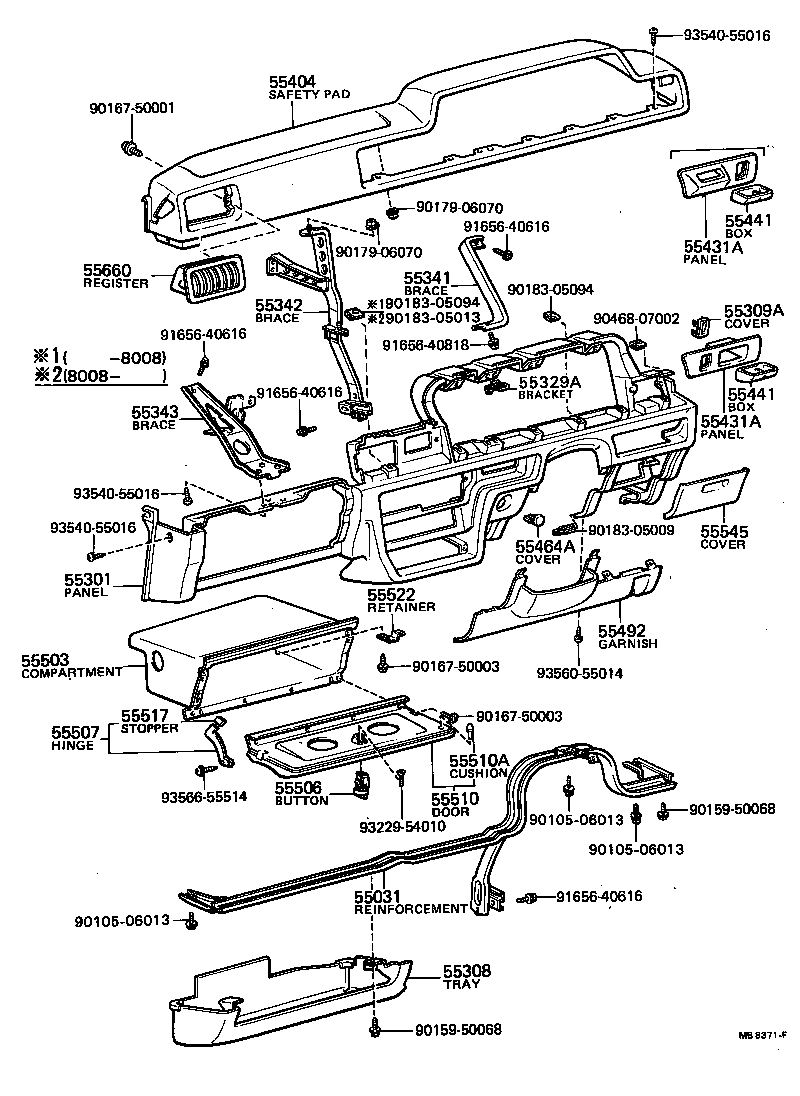

TT132R-TEHRS (1978)
Toyota Corona
(7809- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55305-20070 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-2010002 |
RT13#,TT13#,XT130..(LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55311-2010005 |
RT13#,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55311-2010001 |
RT13#,TT13#,XT130..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-2010105 |
RT132,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-2001001 |
RT133;RT130,132,TT13#,XT130..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55601-2001002 |
RT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55601-2001005 |
RT13#,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-20011 |
RT13#,TT13#,XT130 |
2 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-20050 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-20030 |
RT13#,TT13#,XT130..RHD |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55308-20100 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-2036001 |
RT13#,TT13#,XT130..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55401-2036002 |
RT13#,TT13#,XT130..(LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55401-2036005 |
RT13#,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-20060 |
RT13#,TT13#..RHD..GEN |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-20060 |
RT13#,TT13#..RHD..GEN |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-20120 |
RT13#,TT13#,XT130 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-20120 |
RT13#,TT13#,XT130 |
1 | ||
| 55464A - COVER, CHOKE KNOB HOLE | ||||
| 55464-1401006 |
RT132,TT13#..DLX,STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55464-1401001 |
RT132,TT13#..DLX,STD BLACK,BLACK,TRIM2# |
1 | ||
| 55464-1401002 |
RT132,TT13#..(HT,LB,SED)..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-2008001 |
RT133;RT130,132,TT13#,XT130..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55432-2008005 |
RT13#,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55432-2008002 |
RT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-20030 |
RT133;RT130,132,TT13#,XT130..RHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
RT130,132,TT13#..STD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55556-20030 |
RT13#,TT13#,XT130 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2004002 |
RT13#,TT13#,XT130..HT,LB,SED DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55550-2004001 |
RT13#,TT13#,XT130 BLACK,BLACK,TRIM2# |
1 | ||
| 55550-2004005 |
RT13#,TT13#,XT130 BEIGE,BEIGE,TRIM4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
RT13#,TT13#,XT130 |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
RT13#,TT13#,XT130 |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12010 |
RT13#,TT13#,XT130 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-2001002 |
RT13#,TT13#,XT130..(LB,SED)..RHD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55540-2001001 |
RT13#,TT13#,XT130..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55540-2001005 |
RT13#,TT13#,XT130..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-20010 |
RT13#,TT13#..(DLX,STD)..(EUR,GEN) W/HEATER & *BV |
1 | ||
| Common parts | ||||
| 90105-06013 | ||||
| 90159-50068 | ||||
| 90167-50001 | ||||
| 90167-50003 | ||||
| 90179-06070 | ||||
| 90183-05009 | ||||
| 90183-05013 | ||||
| 90183-05094 | ||||
| 90468-07002 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 93229-54010 | ||||
| 93540-55016 | ||||
| 93566-55514 | ||||

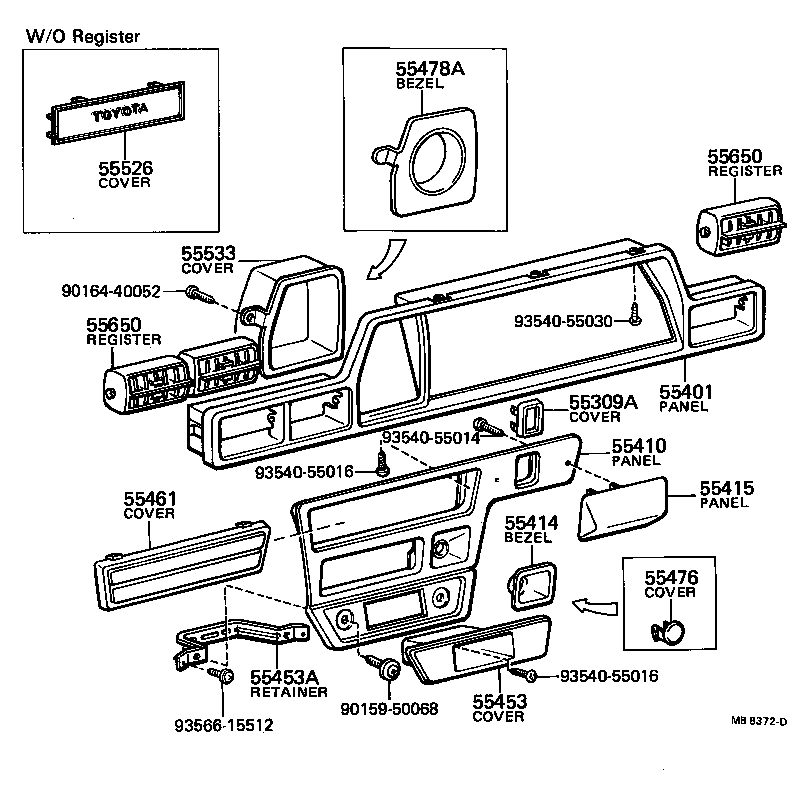

(7809-8008)RHD ; (8008-8111)XT130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-20011 |
RT13#,TT13#,XT130 |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-20360 |
RT13#,TT13#,XT130..RHD..(DLX,STD) W/HEATER |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55412-20110 |
RT13#,TT13#,XT130..RHD..(DLX,STD) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-20040 |
RT13#,TT13#,XT130 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-20030 |
XT130..LNK;RT13#,TT13# |
1 | ||
| 55453A - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55417-20030 |
XT130..LNK;RT13#,TT13# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
RT130,132,TT13#..STD;RT130..DLX..LNK..GEN |
1 | ||
| 55478A - BEZEL, AUTO CLOCK HOLE | ||||
| 55478-20040 |
RT132..RHD..(3FC,4F);RT130,TT13#,XT130..RHD |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-20030 |
RT130,TT13#..RHD..STD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-20020 |
TT132..RHD;RT132,TT133,XT130;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/HEATER & *BV |
3 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-20020 |
TT132..RHD;RT132,TT133,XT130;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/HEATER & *BV |
3 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90164-40052 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||
| 93540-55030 | ||||
| 93566-15512 | ||||

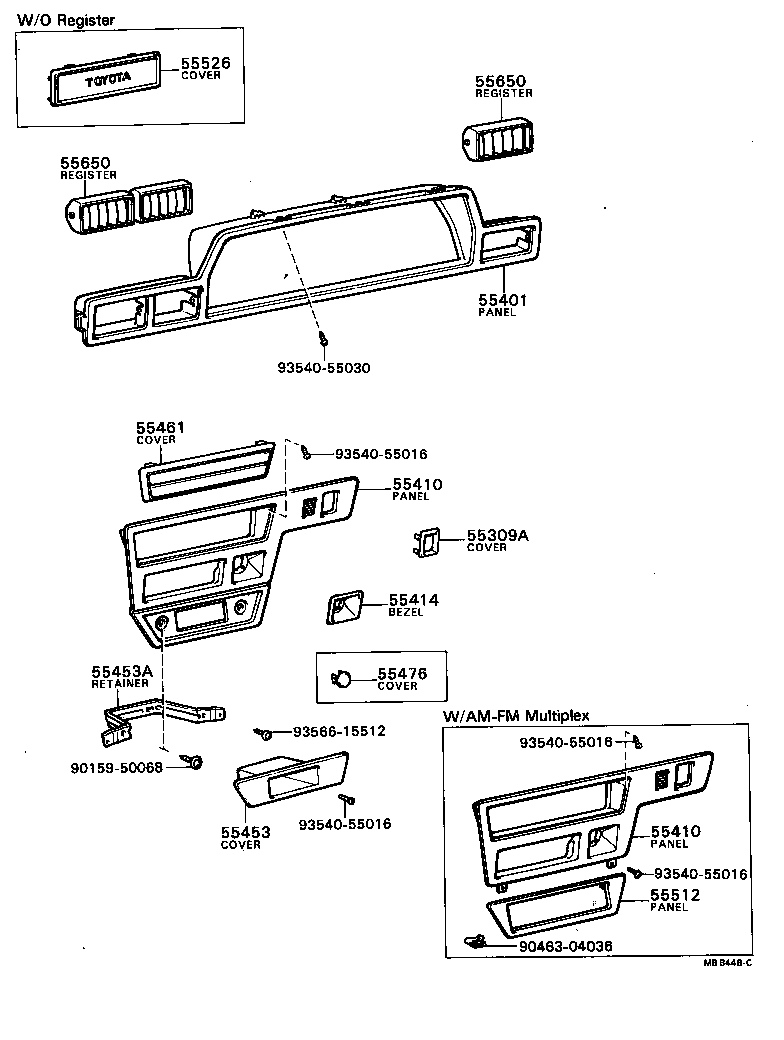

(8008- )RT132,133,TT13#..RHD ; (8111- )XT130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-20011 |
RT13#,TT13#,XT130 |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-20360 |
RT13#,TT13#,XT130..RHD..(DLX,STD) W/HEATER |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55412-20110 |
RT13#,TT13#,XT130..RHD..(DLX,STD) |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55412-20110 |
RT13#,TT13#,XT130..RHD..(DLX,STD) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-20040 |
RT13#,TT13#,XT130 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-20030 |
XT130..LNK;RT13#,TT13# |
1 | ||
| 55453A - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55417-20030 |
XT130..LNK;RT13#,TT13# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
RT130,132,TT13#..STD;RT130..DLX..LNK..GEN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-20020 |
TT132..RHD;RT132,TT133,XT130;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/HEATER & *BV |
3 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-20020 |
TT132..RHD;RT132,TT133,XT130;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK W/HEATER & *BV |
3 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90463-04036 | ||||
| 93540-55016 | ||||
| 93540-55030 | ||||
| 93566-15512 | ||||
