TT132R-TEHRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

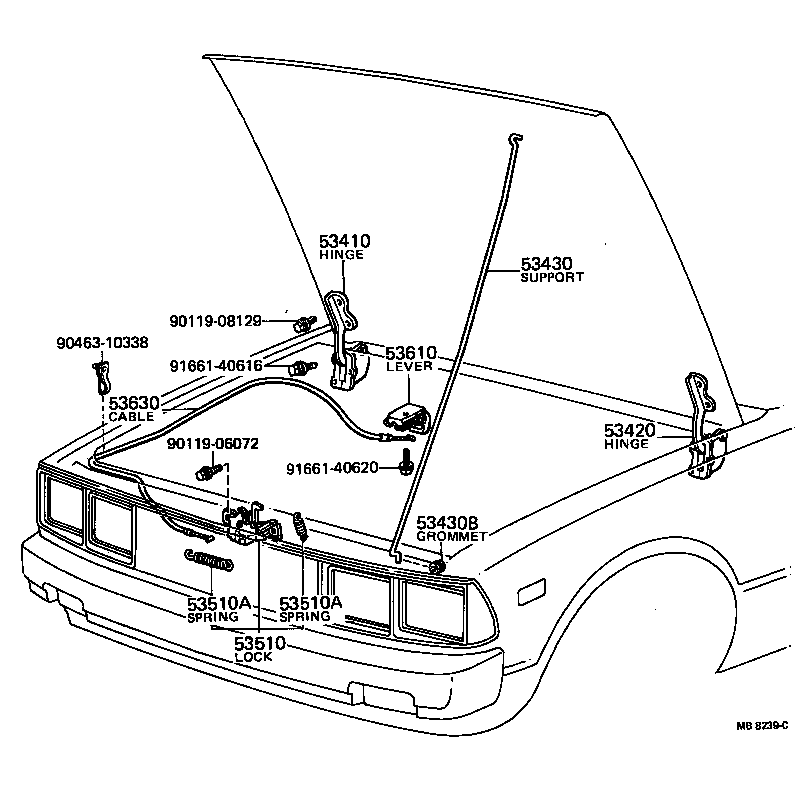

Click highlighted areas on diagram

diagram 53410 53420 53430 53430B 53510 53510A 53510A 53610 53630 9011906072 9011908129 9046310338 9166140616 9166140620
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20050

RT13#,TT13#,XT130

 1
53420 - HINGE ASSY, HOOD, LH
53410-20050

RT13#,TT13#,XT130

 1
53430 - SUPPORT ASSY, HOOD
53451-14020

RT13#,TT13#,XT130

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-15002

RT13#,TT13#,XT130

 1
53510 - LOCK ASSY, HOOD
53510-20090

RT133;RT130,132,TT13#,XT130..RHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

RT13#,TT13#,XT130

WD=0.9,CW=21.25,OD=9

 1
90506-23004

RT13#,TT13#,XT130

OD=15.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

RT13#,TT13#,XT130

WD=0.9,CW=21.25,OD=9

 1
90506-23004

RT13#,TT13#,XT130

OD=15.5

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-2005001

RT13#,TT13#,XT130

BLACK,BLACK,TRIM2#

 1
53601-2005005

RT13#,TT13#,XT130

BEIGE,BEIGE,TRIM4#

 1
53601-2005002

RT13#,TT13#,XT130..HT,LB,SED

DARK WINE,RED/MAROON,TRIM3#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20120

RT13#,TT13#,XT130

CHUO HATUJO

 1
53630-20110

RT13#,TT13#,XT130

NIPPON CABLE

 1
Common parts
90119-06072
90119-08129
90463-10338
91661-40616
91661-40620
