TT132R-TEHDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

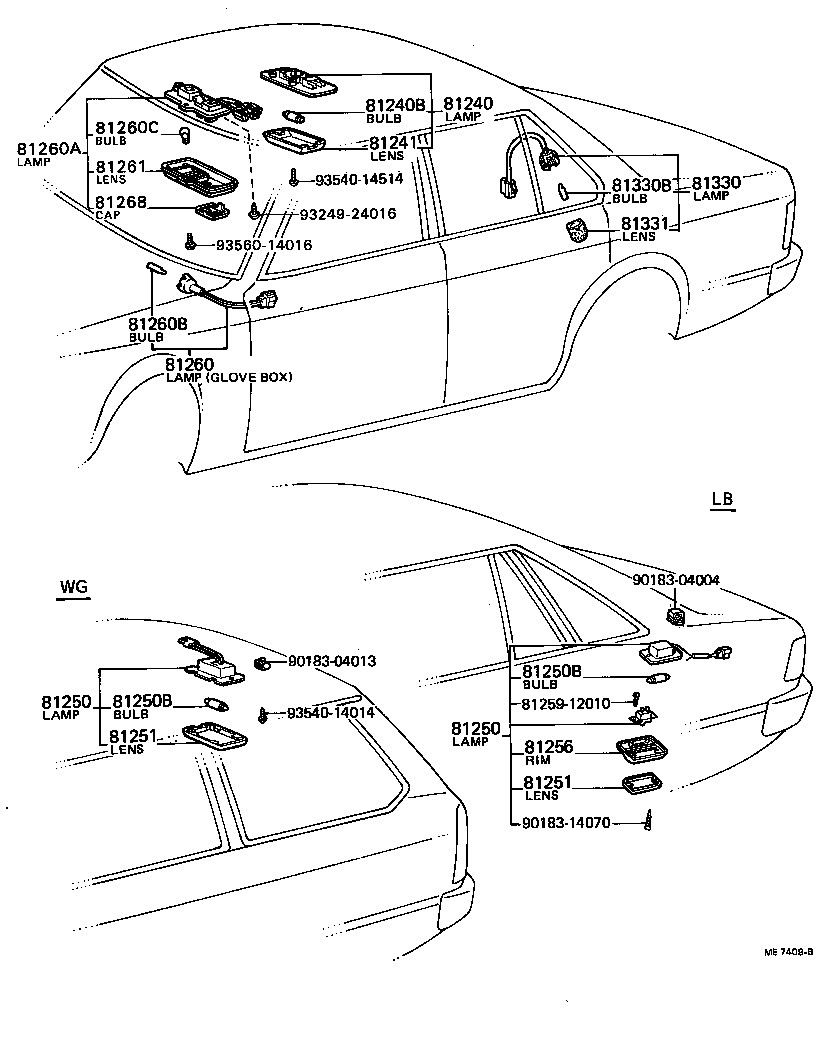

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81251 81251 81256 8125912010 81260 81260A 81260B 81260C 81261 81268 81330 81330B 81331 9018304004 9018304013 9018314070 9324924016 9354014014 9354014514 9356014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1601005

TT132..LNK

BEIGE,BEIGE

 1
81240-1601008

TT132..LNK

IVORY,IVORY

 1
81240-1601008

TT132..LNK;TT133..4F..DLX;TT133..LHD..5F;TT133..SED..LEF

IVORY,IVORY

 1
81240-1601008

TT133..4F..DLX;TT133..LHD..5F;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK

IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

RT13#,TT13#,XT130

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

TT132..LNK

 1
81241-16010

TT13#..HT,LB,SED

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22030

TT133;RT13#,TT132..DLX,GL

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

TT133;RT13#,TT132..DLX,GL

12V 1.2W W/O SOCKET,12V 1.4W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22030

RT13#,TT13#..(HT,SED,WG)..(DLX,GL)

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

RT13#,TT13#..(HT,SED,WG)..(DLX,GL)

12V 5W,12V 5W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81331-22030

RT13#,TT13#..(HT,SED,WG)..(DLX,GL)

 1
Common parts
81259-12010
90183-04004
90183-04013
90183-14070
93249-24016
93540-14014
93540-14514
93560-14016
