TT132LG-TWKRS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

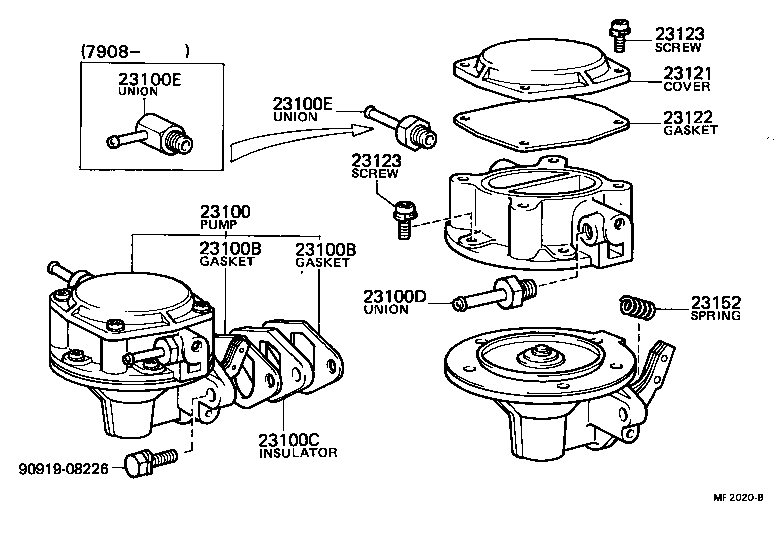

(7809-7908)3T..MTM ; (7809-7908)3T..3FC..EUR ; (7908-8108)3T..EUR ; (7908-8112)2T,3

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100E 23121 23122 23123 23123 23152 9091908226
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29108

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23100-29305

2T,3T..TT13#..MTM..GEN

 1
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2T,3T..TT13#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-51244

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-34030

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-34030

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23121 - COVER, FUEL PUMP
23121-34020

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23123 - SCREW, COVER SET, NO.1
93319-15014

3T..TT132..MTM;3T..TT132..3FC..EUR

 10
23123 - SCREW, COVER SET, NO.1
93319-15014

3T..TT132..MTM;3T..TT132..3FC..EUR

 10
23152 - SPRING, ROCKER ARM
23152-30020

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
Common parts
90919-08226

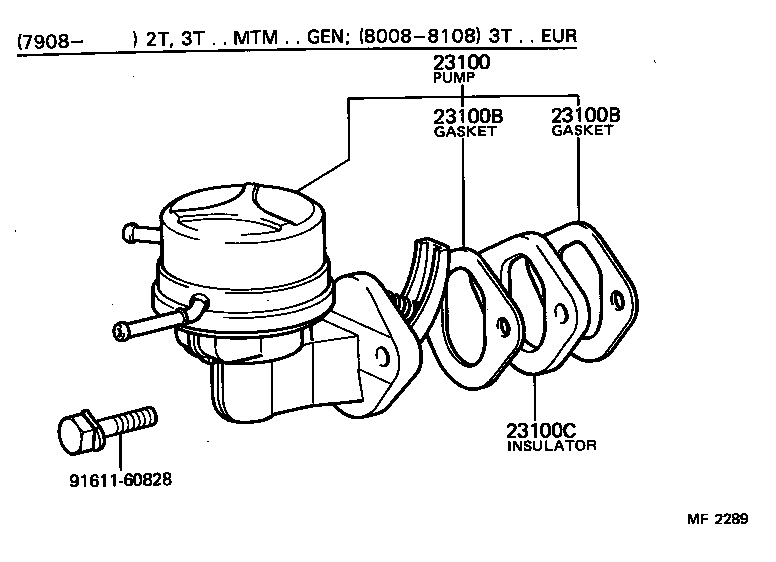

(7908- )2T,3T..MTM ; (8008-8108)3T..EUR

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 9161160828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29108

3T..TT132..MTM;3T..TT132..3FC..EUR

 1
23100-29305

2T,3T..TT13#..MTM..GEN

 1
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT13#

 2
23100B - GASKET, FUEL PUMP
90923-05005

2T,3T..TT13#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2T,3T..TT13#

 1
Common parts
91611-60828
