TT132L-TSMDS (1980)
Toyota Corona
Production
Apr 1980
-
Dec 1981
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)

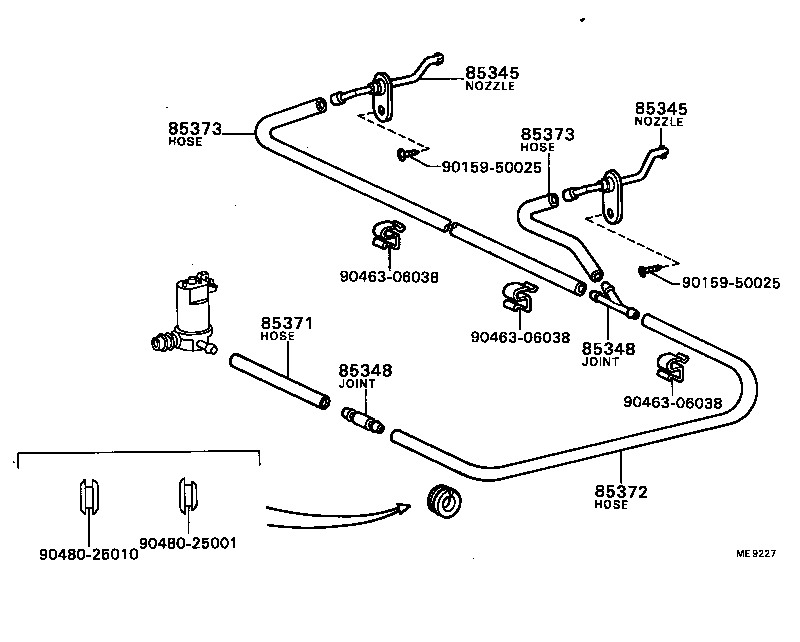

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
TT13# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
TT13# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
TT13# 3 WAY |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| Common parts | ||||
| 90159-50025 | ||||
| 90463-06038 | ||||
| 90480-25001 | ||||
| 90480-25010 | ||||
(8008- )

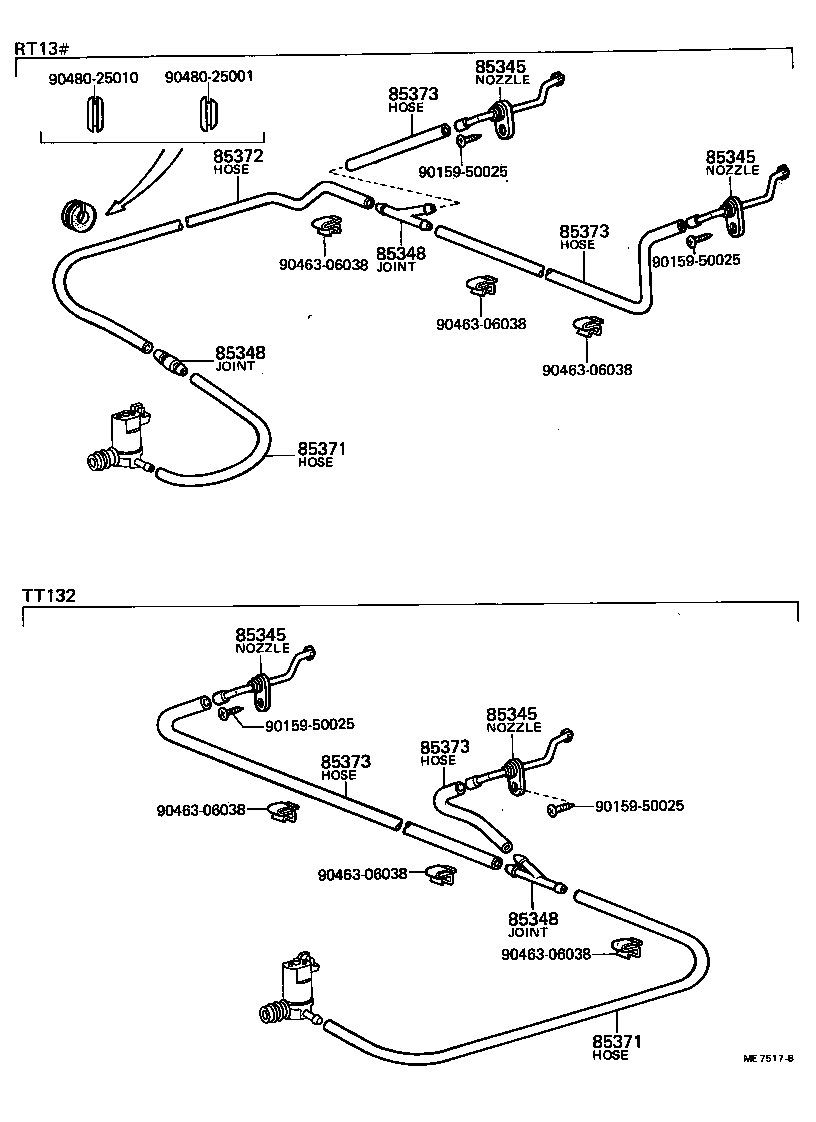

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14060 |
RT13#,TT13#,XT130 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
TT13# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
TT13# 3 WAY |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
RT13#,TT13#,XT130 *H,L=160 |
1 | ||
| 90446-06013 |
RT130,132,TT13#,XT130 *H,L=700 |
1 | ||
| Common parts | ||||
| 90159-50025 | ||||
| 90463-06038 | ||||
| 90480-25001 | ||||
| 90480-25010 | ||||
