TT132L-TSMDS (1980)

Toyota Corona

Production Apr 1980 - Dec 1981
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)RT130,TT13#..MTM

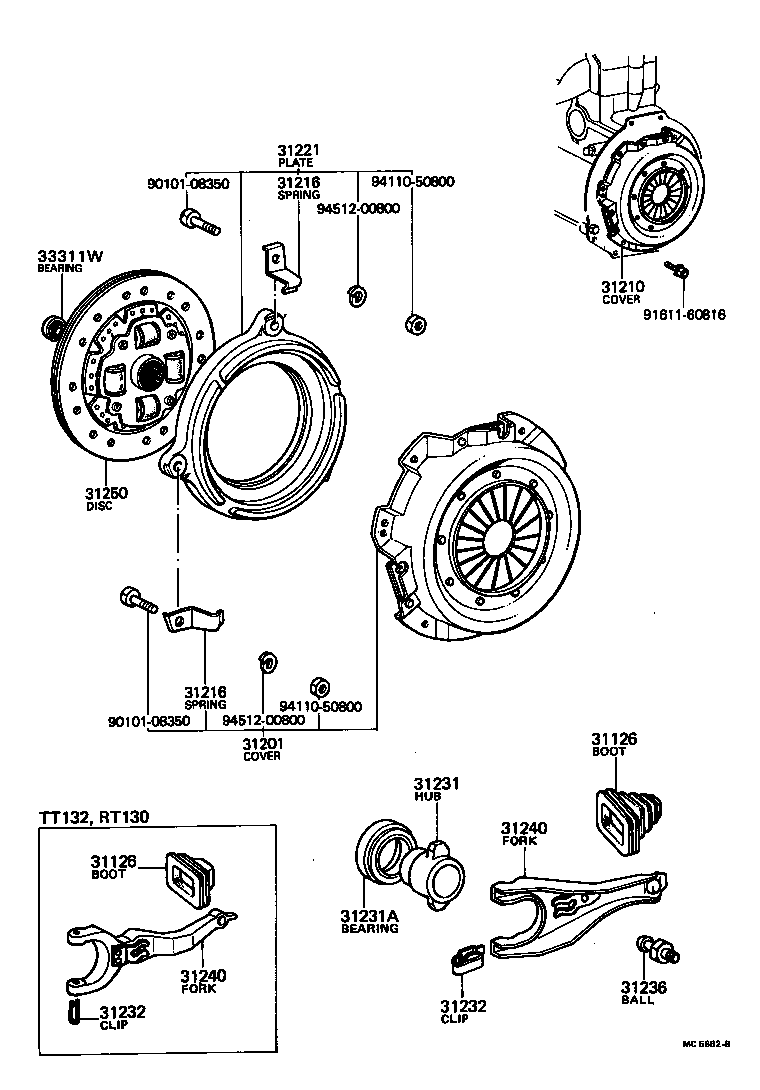

Click highlighted areas on diagram

diagram 31126 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31232 31236 31240 31240 31250 33311W 9010108350 9010108350 9161160816 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20040

TT132..MTM..GEN

 1
31126-20040

TT132..MTM

 1
31126-20070

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31126 - BOOT, CLUTCH RELEASE FORK
31126-20040

TT132..MTM..GEN

 1
31126-20040

TT132..MTM

 1
31126-20070

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-19047

TT132..MTM

 1
31201-19075

TT132..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-23010

TT132..MTM

 1
31210-23012

TT132..MTM

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT130,TT13#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT130,TT13#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-19025

RT130,TT132..MTM

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-30070

TT132..MTM

 1
31231-27020

TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN

 1
31231-30071

TT132..MTM..GEN

 1
31231-20081

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40001

RT13#,TT13#..MTM

 1
90363-40015

RT13#,TT13#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

TT132..MTM..GEN

 2
31232-20010

TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN

 2
31232-30010

TT132..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

TT132..MTM..GEN

 2
31232-20010

TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN

 2
31232-30010

TT132..MTM

 2
31236 - BALL, RELEASE FORK
31236-20020

RT132,TT13#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20040

TT132..MTM..GEN

 1
31204-27020

TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN

 1
31204-20040

TT132..MTM

 1
31204-20080

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20040

TT132..MTM..GEN

 1
31204-27020

TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN

 1
31204-20040

TT132..MTM

 1
31204-20080

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31250 - DISC ASSY, CLUTCH
31250-22090

RT130,TT132..MTM

 1
31250-12081

TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
31250-20023

RT130,TT132..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
97123-06001

TT13#..MTM

6001VV

 1
90363-12003

TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F

 1
Common parts
90101-08350
91611-60816
94110-50800
94512-00800
