TT132L-TLKDSW (1978)
Toyota Corona
(7809-8108)MTM..EUR

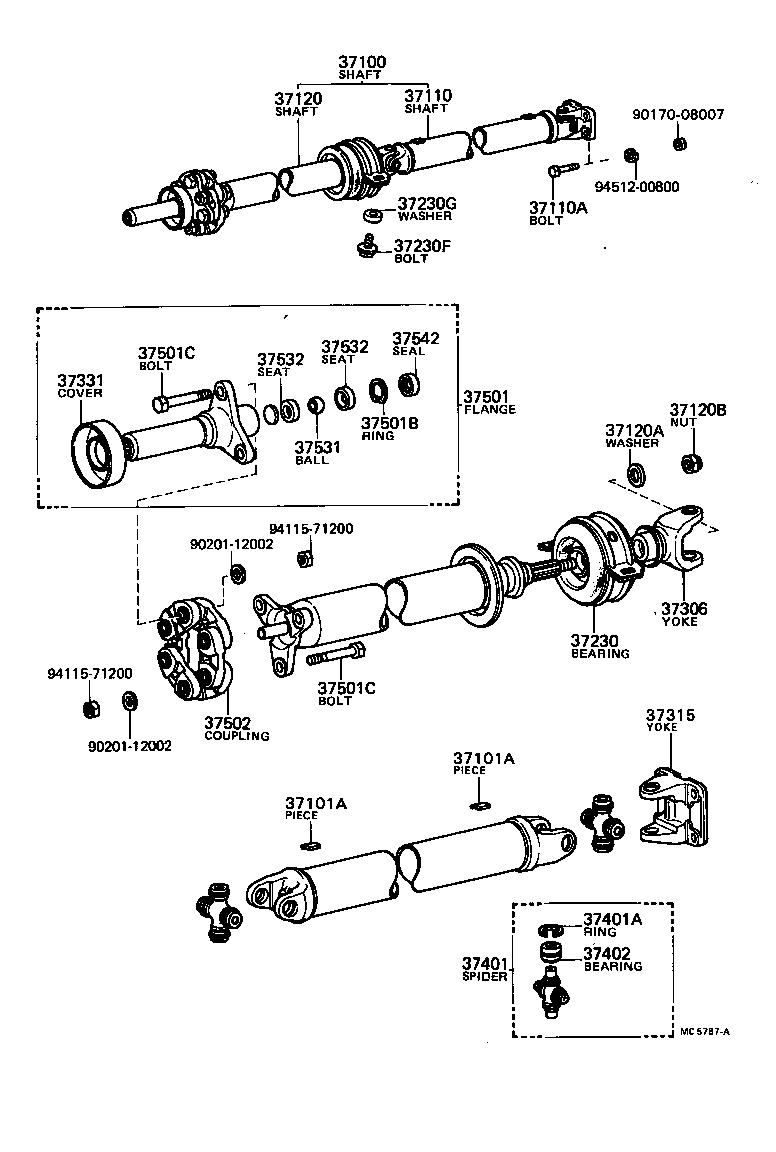

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-20160 |
TT132..MTM..EUR |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20200 |
TT132..MTM..EUR |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08214 |
RT13#,TT13# *8-1.25PX25-12 |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20110 |
TT132..MTM..EUR |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
RT132,TT132..ARL,EUR OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
RT132,TT132..ARL,EUR |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-20060 |
TT132..MTM..EUR |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10133 |
TT132..MTM..EUR *10-1.25PX35-26 |
1 | ||
| 90119-10075 |
TT132..MTM..EUR *10-1.25PX22-13.7 |
2 | ||
| 90119-10075 |
TT132,XT130..ARL,EUR *10-1.25PX22-13.7 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10010 |
TT132..MTM..EUR T=12.0 |
1 | ||
| 37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER | ||||
| 37306-20010 |
RT132,TT132..ARL,EUR |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
RT133..GL;RT130,132,TT13# |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
TT132 |
1 | ||
| 37331-30010 |
RT130,132;RT133..GL |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
RT133..GL;RT130,132,TT13# |
3 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29072 |
RT133..GL;RT130,132,TT13# T=2.475-2.525,T=2.50 |
12 | ||
| 90521-29073 |
RT133..GL;RT130,132,TT13# T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29070 |
RT133..GL;RT130,132,TT13# T=2.375-2.425,T=2.40 |
12 | ||
| 90521-29071 |
RT133..GL;RT130,132,TT13# T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
RT133..GL;RT130,132,TT13# |
12 | ||
| 37501 - FLANGE SUB-ASSY, FLEXIBLE COUPLING SLEEVE | ||||
| 37501-20010 |
TT132..MTM..EUR |
1 | ||
| 37501B - RING, HOLE SNAP (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90521-37001 |
TT132..MTM..EUR T=1.42,T=1.42 |
1 | ||
| 90521-37002 |
TT132..MTM..EUR T=1.45,T=1.45 |
1 | ||
| 90521-37004 |
TT132..MTM..EUR T=1.51,T=1.51 |
1 | ||
| 90521-37003 |
TT132..MTM..EUR T=1.48,T=1.48 |
1 | ||
| 90521-37005 |
TT132..MTM..EUR T=1.54,T=1.54 |
1 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
TT132..MTM..EUR |
6 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
TT132..MTM..EUR |
6 | ||
| 37502 - COUPLING SUB-ASSY, FLEXIBLE | ||||
| 37502-20010 |
TT132..MTM..EUR |
1 | ||
| 37531 - BALL, FLEXIBLE COUPLING CENTERING | ||||
| 37531-20010 |
TT132..MTM..EUR |
1 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
TT132..MTM..EUR |
2 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
TT132..MTM..EUR |
2 | ||
| 37542 - SEAL, CENTERING (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 37542-20011 |
TT132..MTM..EUR |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90201-12002 | ||||
| 94115-71200 | ||||
| 94512-00800 | ||||
(7809-8108)3FC..EUR ; (7908-8001)XT130..LEF ; (7908-8001)XT130..4F..LNK ; (7908-
12)TT132..LB..4F; (8008-8112)TT133.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-20160 |
TT132..MTM..EUR |
1 | ||
| 37100-20160 |
TT132..MTM..EUR |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01136 |
RT133..GL;RT130,132,TT13# 20G,L=41.4,20G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01149 |
RT133..GL;RT130,132,TT13# 6G,L=12.4,6G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01132 |
RT133..GL;RT130,132,TT13# 10G,L=20.7,10G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01140 |
RT133..GL;RT130,132,TT13# 30G,L=62.2,30G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01147 |
RT133..GL;RT130,132,TT13# 2G,T=2.0,2G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01152 |
RT133..GL;RT130,132,TT13# 14G,L=29.0,14G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01156 |
RT133..GL;RT130,132,TT13# 24G,L=49.7,24G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01157 |
RT133..GL;RT130,132,TT13# 26G,L=53.9,26G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01148 |
RT133..GL;RT130,132,TT13# 4G,T=2.0,4G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01150 |
RT133..GL;RT130,132,TT13# 8G,L=16.6,8G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01154 |
RT133..GL;RT130,132,TT13# 18G,L=37.3,18G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01153 |
RT133..GL;RT130,132,TT13# 16G,L=33.2,16G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01151 |
RT133..GL;RT130,132,TT13# 12G,L=24.9,12G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01155 |
RT133..GL;RT130,132,TT13# 22G,L=45.6,22G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 90937-01158 |
RT133..GL;RT130,132,TT13# 28G,L=58.1,28G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20200 |
TT132..MTM..EUR |
1 | ||
| 37110-20200 |
TT132..MTM..EUR |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-20200 |
TT132..MTM..EUR |
1 | ||
| 37110-20200 |
TT132..MTM..EUR |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08214 |
RT13#,TT13# *8-1.25PX25-12 |
4 | ||
| 90101-08214 |
RT13#,TT13# *8-1.25PX25-12 |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20110 |
TT132..MTM..EUR |
1 | ||
| 37120-20110 |
TT132..MTM..EUR |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-20110 |
TT132..MTM..EUR |
1 | ||
| 37120-20110 |
TT132..MTM..EUR |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
RT132,TT132..ARL,EUR OD=33.5,T=4.0 |
1 | ||
| 90201-18182 |
RT132,TT132..ARL,EUR OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
RT132,TT132..ARL,EUR |
1 | ||
| 90179-18060 |
RT132,TT132..ARL,EUR |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-20060 |
TT132..MTM..EUR |
1 | ||
| 37230-20060 |
TT132..MTM..EUR |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10133 |
TT132..MTM..EUR *10-1.25PX35-26 |
1 | ||
| 90119-10133 |
TT132..MTM..EUR *10-1.25PX35-26 |
1 | ||
| 90119-10075 |
TT132..MTM..EUR *10-1.25PX22-13.7 |
2 | ||
| 90119-10075 |
TT132..MTM..EUR *10-1.25PX22-13.7 |
2 | ||
| 90119-10075 |
TT132,XT130..ARL,EUR *10-1.25PX22-13.7 |
2 | ||
| 90119-10075 |
TT132,XT130..ARL,EUR *10-1.25PX22-13.7 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10010 |
TT132..MTM..EUR T=12.0 |
1 | ||
| 90201-10010 |
TT132..MTM..EUR T=12.0 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-20040 |
RT130,132;RT133..GL |
1 | ||
| 37302-20040 |
RT130,132;RT133..GL |
1 | ||
| 37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER | ||||
| 37306-20010 |
RT132,TT132..ARL,EUR |
1 | ||
| 37306-20010 |
RT132,TT132..ARL,EUR |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
RT133..GL;RT130,132,TT13# |
1 | ||
| 37315-20020 |
RT133..GL;RT130,132,TT13# |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
TT132 |
1 | ||
| 37331-30010 |
TT132 |
1 | ||
| 37331-30010 |
RT130,132;RT133..GL |
1 | ||
| 37331-30010 |
RT130,132;RT133..GL |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-22010 |
RT133..GL;RT130,132,TT13# |
3 | ||
| 04371-22010 |
RT133..GL;RT130,132,TT13# |
3 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29072 |
RT133..GL;RT130,132,TT13# T=2.475-2.525,T=2.50 |
12 | ||
| 90521-29072 |
RT133..GL;RT130,132,TT13# T=2.475-2.525,T=2.50 |
12 | ||
| 90521-29073 |
RT133..GL;RT130,132,TT13# T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29073 |
RT133..GL;RT130,132,TT13# T=2.525-2.575,T=2.55 |
12 | ||
| 90521-29070 |
RT133..GL;RT130,132,TT13# T=2.375-2.425,T=2.40 |
12 | ||
| 90521-29070 |
RT133..GL;RT130,132,TT13# T=2.375-2.425,T=2.40 |
12 | ||
| 90521-29071 |
RT133..GL;RT130,132,TT13# T=2.425-2.475,T=2.45 |
12 | ||
| 90521-29071 |
RT133..GL;RT130,132,TT13# T=2.425-2.475,T=2.45 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
RT133..GL;RT130,132,TT13# |
12 | ||
| 37402-22020 |
RT133..GL;RT130,132,TT13# |
12 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
