TT132L-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

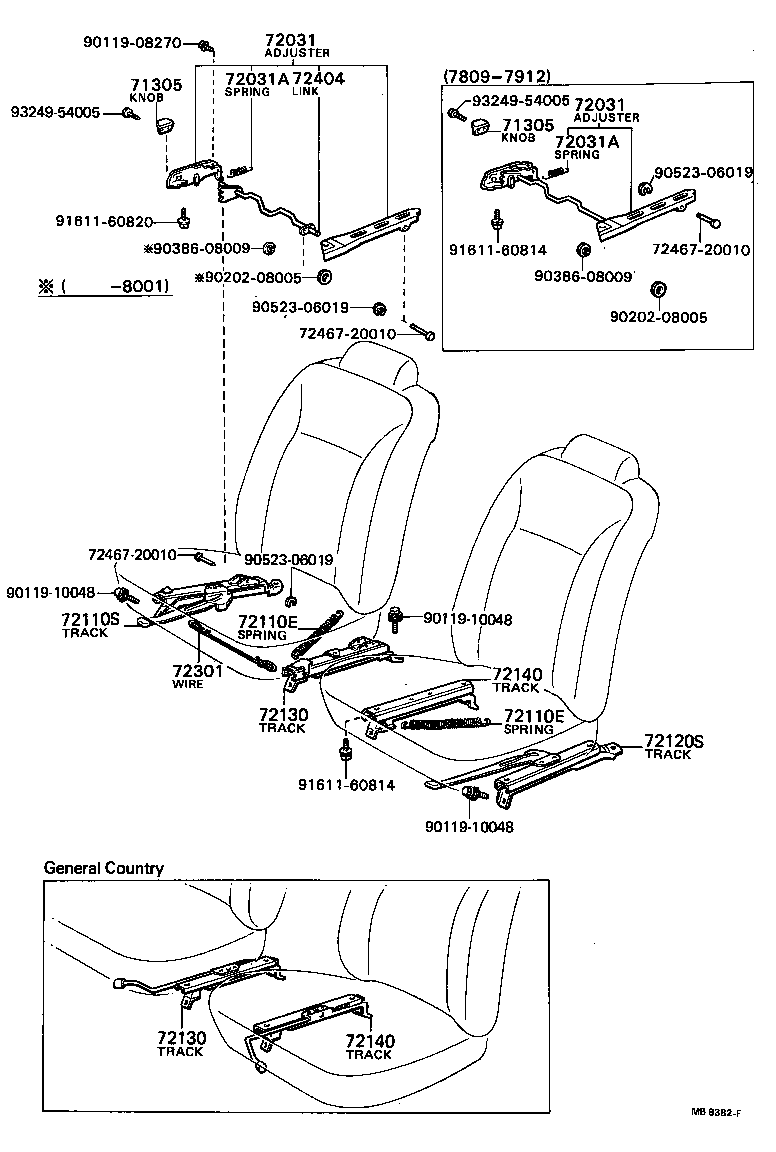

Click highlighted areas on diagram

diagram 71305 71305 72031 72031 72031A 72031A 72110E 72110E 72110S 72120S 72130 72130 72140 72140 72301 72404 7246720010 7246720010 7246720010 9011908270 9011910048 9011910048 9011910048 9020208005 9020208005 9038608009 9038608009 9052306019 9052306019 9052306019 9161160814 9161160814 9161160820 9324954005 9324954005
Part # Description Qty Price
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-18025

RT130,132,TT13#..(HT,LB,SED)..LHD

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-18025

RT130,132,TT13#..(HT,LB,SED)..LHD

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20100

RT130..LEF;RT130..LHD..LNK;TT132..3FC..LNK..GEN;RT132..(LB,SED)..LNK..GEN;TT13#..(LB,SED,WG)..MTM..GEN

GENERAL COUNTRY

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20100

RT130..LEF;RT130..LHD..LNK;TT132..3FC..LNK..GEN;RT132..(LB,SED)..LNK..GEN;TT13#..(LB,SED,WG)..MTM..GEN

GENERAL COUNTRY

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-20080

RT130..LEF;TT13#..MTM..GEN;RT132..LNK..GEN;RT130..LHD..LNK;TT132..3FC..LNK..GEN

GENERAL COUNTRY

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-20080

RT130..LEF;TT13#..MTM..GEN;RT132..LNK..GEN;RT130..LHD..LNK;TT132..3FC..LNK..GEN

GENERAL COUNTRY

 1
Common parts
72467-20010
90119-08270
90119-10048
90202-08005
90386-08009
90523-06019
91611-60814
91611-60820
93249-54005
