TT132L-TLHNSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

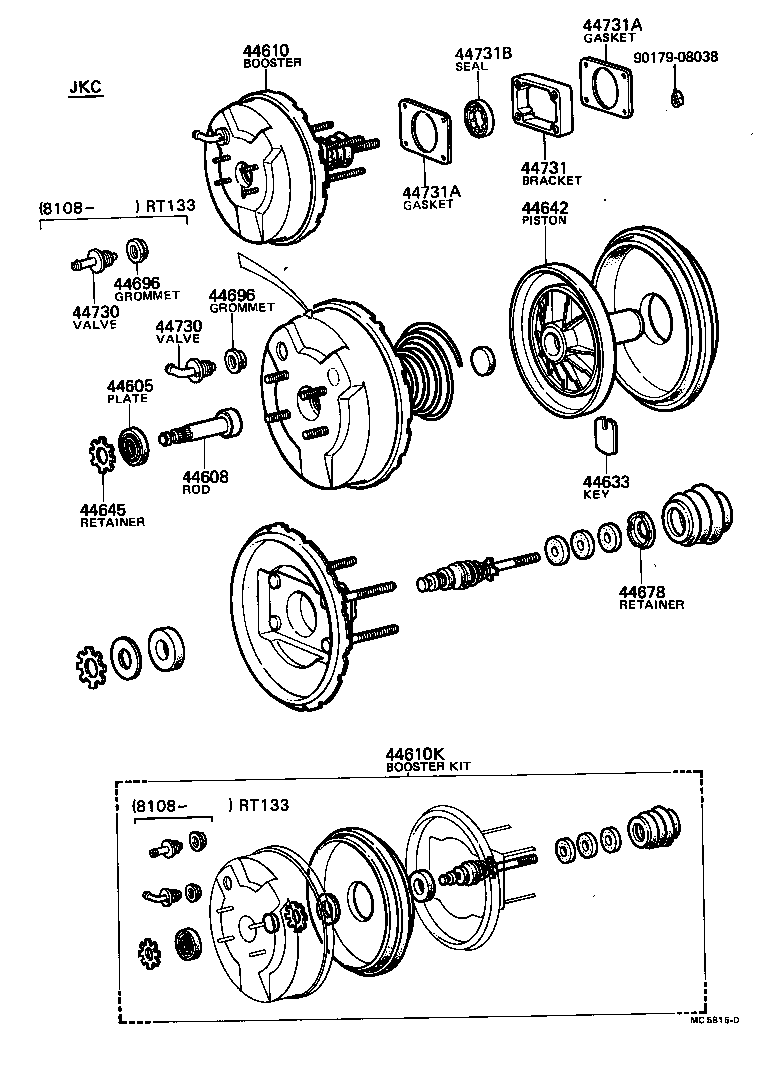

(7809-8108)LHD..EUR ; (7908-8108)RT132..ARL ; (8108- )RT133
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
TT132..LHD..EUR |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
TT132..LHD..EUR JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20490 |
TT132..LHD..EUR |
1 | ||
| 44610-20500 |
RT130,132..LHD |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-20290 |
TT132..LHD..EUR |
1 | ||
| 04443-20270 |
RT130,132..LHD |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
TT132..LHD..EUR |
3 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25080 |
TT132..LHD..EUR JKC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
TT132..LHD..EUR JKC |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
TT132..LHD..EUR |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
TT132..LHD..EUR |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
TT132..LHD..EUR |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20040 |
TT132..LHD..EUR |
1 | ||
| 44730-20060 |
RT130,132..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20040 |
TT132..LHD..EUR |
1 | ||
| 44730-20060 |
RT130,132..LHD |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-20090 |
RT130,132,TT13#..LHD |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-20030 |
RT13#,TT13# |
2 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-20030 |
RT13#,TT13# |
2 | ||
| 44731B - SEAL, BRAKE BOOSTER BRACKET | ||||
| 90304-54002 |
RT130,132,TT13#..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

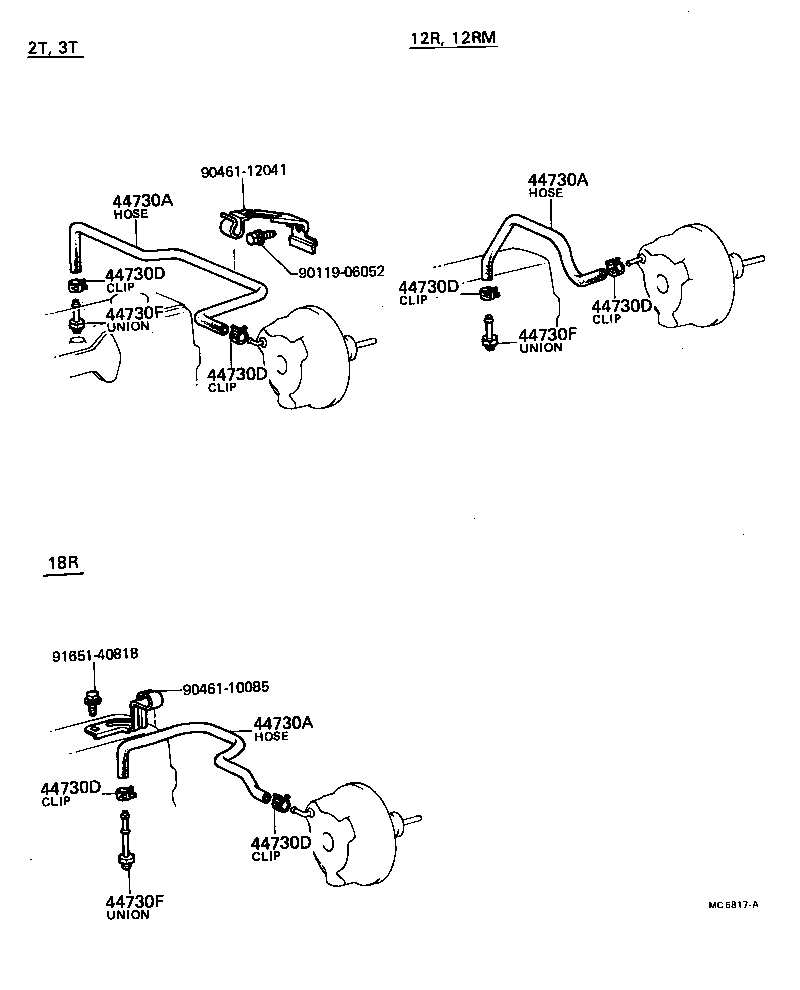

(7809-8205)LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-20310 |
TT13#..LHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-20310 |
TT13#..LHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-20310 |
TT13#..LHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13#,TT13#,XT130 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RT133,TT13# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RT133,TT13# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RT133,TT13# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90461-10085 | ||||
| 90461-12041 | ||||
| 91651-40818 | ||||
