TT132L-TLHDS (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)TT132..3FC

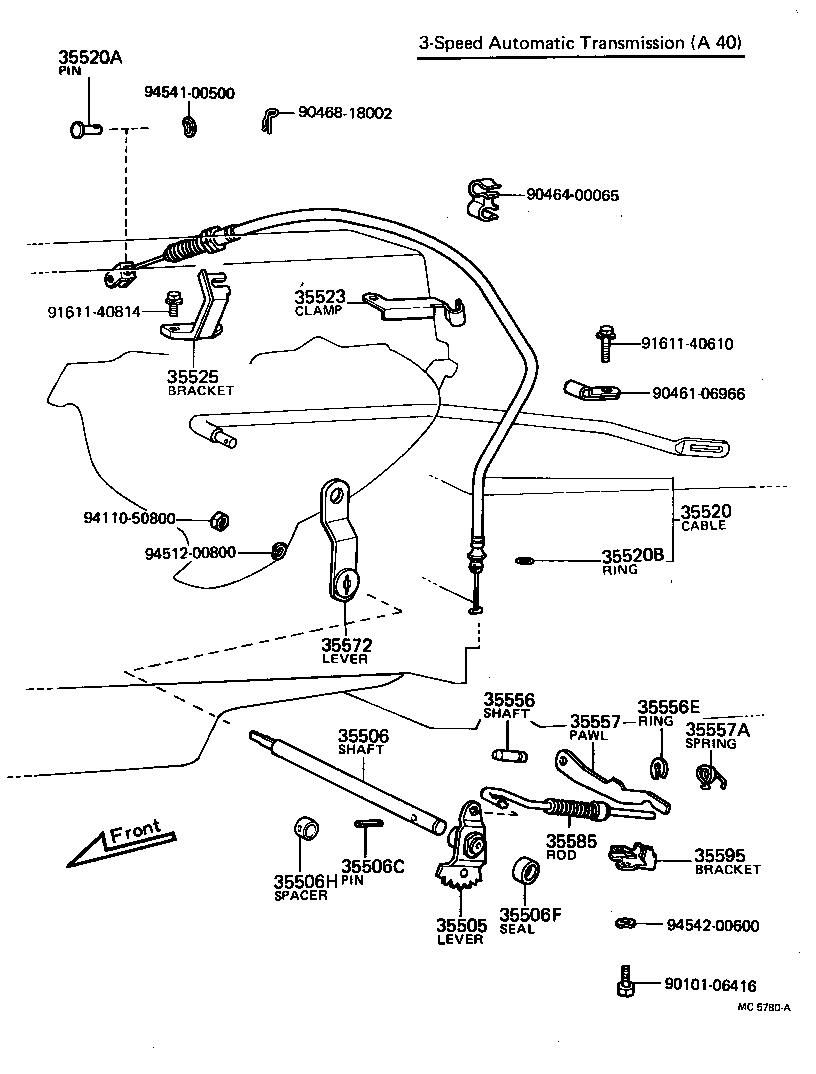

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35520 35520A 35520B 35523 35525 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9046106966 9046400065 9046818002 9161140610 9161140814 9411050800 9451200800 9454100500 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

RT132,133,TT132..ATM

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

RT132,133,TT132..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

RT132,133,TT132..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

RT132,133,TT132..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

RT132,133,TT132..ATM

 1
35520 - CABLE ASSY, THROTTLE
35520-12050

TT132..3FC

 1
35520A - PIN, THROTTLE CABLE
90240-05139

TT132..3FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RT132,133,TT132..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-14030

TT132..3FC

 1
35523-12022

TT132..3FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

RT132,133,TT132..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

RT132,133,TT132..ATM

 1
35557 - PAWL, PARKING LOCK
35557-22010

RT132,133,TT132..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

RT132,133,TT132..ATM

 1
90508-25329

RT132,TT132..3FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

RT132,133,TT132..ATM

 1
35585 - ROD, PARKING LOCK
35501-22010

TT132..3FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-22010

TT132..3FC

 1
Common parts
90101-06416
90461-06966
90464-00065
90468-18002
91611-40610
91611-40814
94110-50800
94512-00800
94541-00500
94542-00600
