TT132L-TEMNSW (1978)
Toyota Corona
(7809-8008)EUR,GEN,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

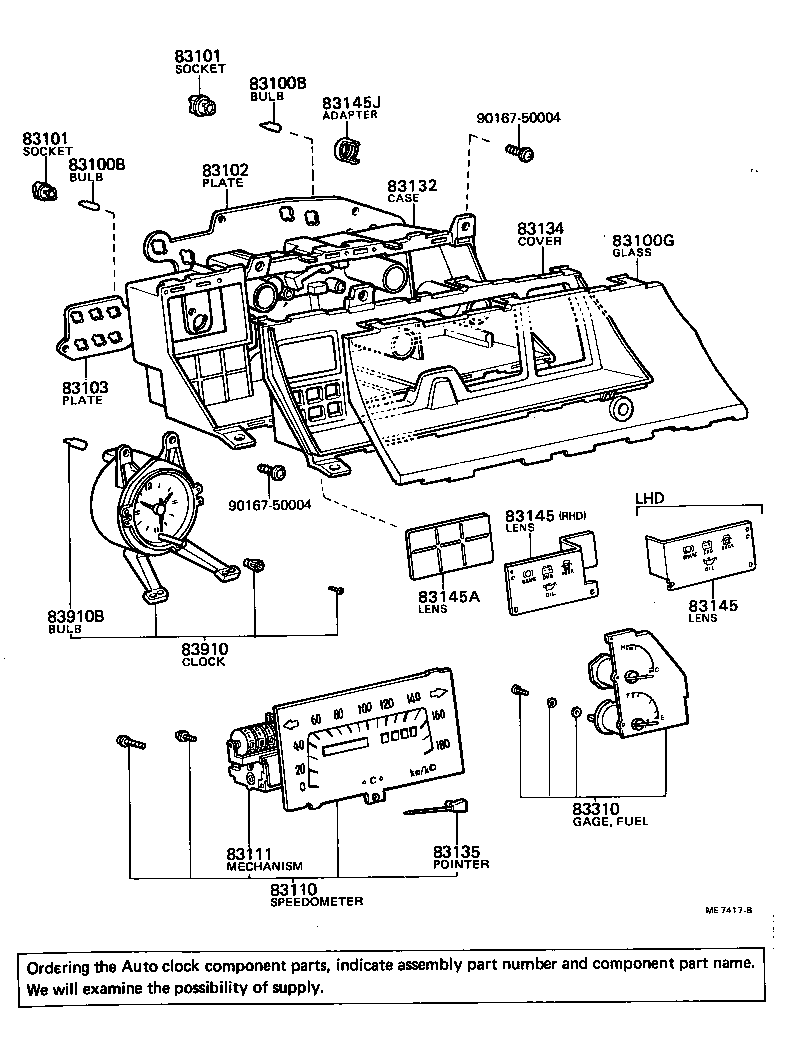

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20150 |
RT13#,TT13#..LHD |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-20180 |
RT13#,TT13#..LHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20510 |
TT132..LHD..MTM KM |
1 | ||
| 83110-20520 |
TT132..LHD..MTM MILE & KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-20780 |
RT13#,TT132..EUR,GEN MILE & KM |
1 | ||
| 83112-20770 |
RT13#,TT132..EUR,GEN,PHL KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-20840 |
RT13#,TT132..EUR,GEN,PHL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20080 |
RT13#,TT13#..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20080 |
RT13#,TT13#..LHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-20030 |
RT13#,TT13# |
1 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-20100 |
RT13#,TT13# |
3 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20050 |
RT13#,TT132..LHD |
1 | ||
| 83243-20051 |
RT13#,TT13#..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20240 |
TT132..GL W/QUARTZ |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-12034 |
RT13#,TT132 12V 3.4W,12V 3.4W |
1 | ||
| Common parts | ||||
| 90167-50004 | ||||
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

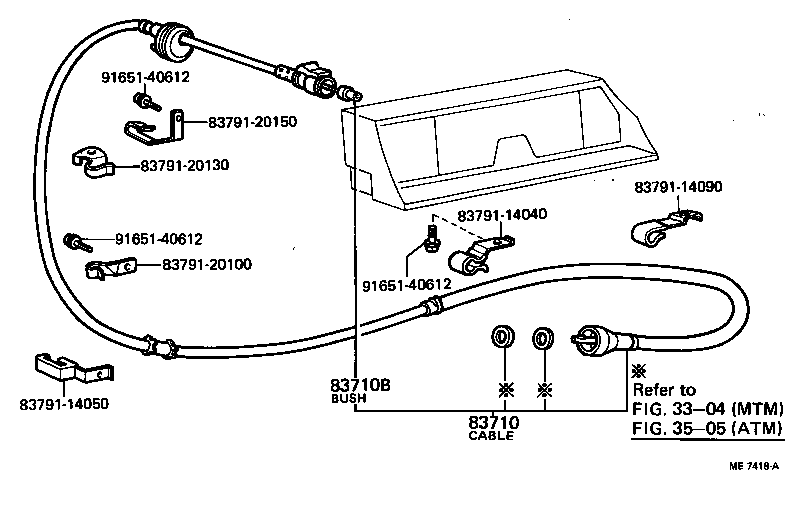

| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29555 |
TT13#..LHD;RT132..(LB,SED)..LHD L=1850 |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
RT13#,TT13# |
1 | ||
| Common parts | ||||
| 83791-14040 | ||||
| 83791-14050 | ||||
| 83791-14090 | ||||
| 83791-20100 | ||||
| 83791-20130 | ||||
| 83791-20150 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
