TT132L-TEMDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)HT,LB,SED ; (8008-8111)XT130..LNK

Click highlighted areas on diagram

diagram 52055 52107 52107 52108 52108 52151 52151 52152B 52152B 52153B 52153B 9011208010 9011208010 9017906115 9017906115 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9017908123 9017908123
Part # Description Qty Price
52055 - PAD SUB-ASSY, REAR BUMPER
52055-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20070

RT13#,TT13#,XT130..LNK

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20070

RT13#,TT13#,XT130..LNK

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20070

RT13#,TT13#,XT130..LNK

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20070

RT13#,TT13#,XT130..LNK

 1
52151 - BUMPER ASSY, REAR
52151-29315

RT13#,TT13#,XT130..(LB,SED)..(DLX,STD)

 1
52151-29325

RT13#,TT13#,XT130..LB,SED

W/PAD

 1
52151 - BUMPER ASSY, REAR
52151-29315

RT13#,TT13#,XT130..(LB,SED)..(DLX,STD)

 1
52151-29325

RT13#,TT13#,XT130..LB,SED

W/PAD

 1
Common parts
90112-08010
90179-06115
90179-08123

(7906-8008)HT,LB..5F..GEN ; (7912-8008)RT132..HT; (7912-8008)RT130..SED ; (7912-80

Click highlighted areas on diagram

diagram 52159 52167 52180 52190 52561 52565A 52615 52705 9011910085 9015970049 9017905147 9017906007 9165540635 9165540635 9351054012
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20031

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52167 - REINFORCEMENT, REAR BUMPER
52023-20041

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52180-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52190-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20020

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14020

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52705 - MOULDING SUB-ASSY, REAR BUMPER
52705-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
Common parts
90119-10085
90159-70049
90179-05147
90179-06007
91655-40635
93510-54012

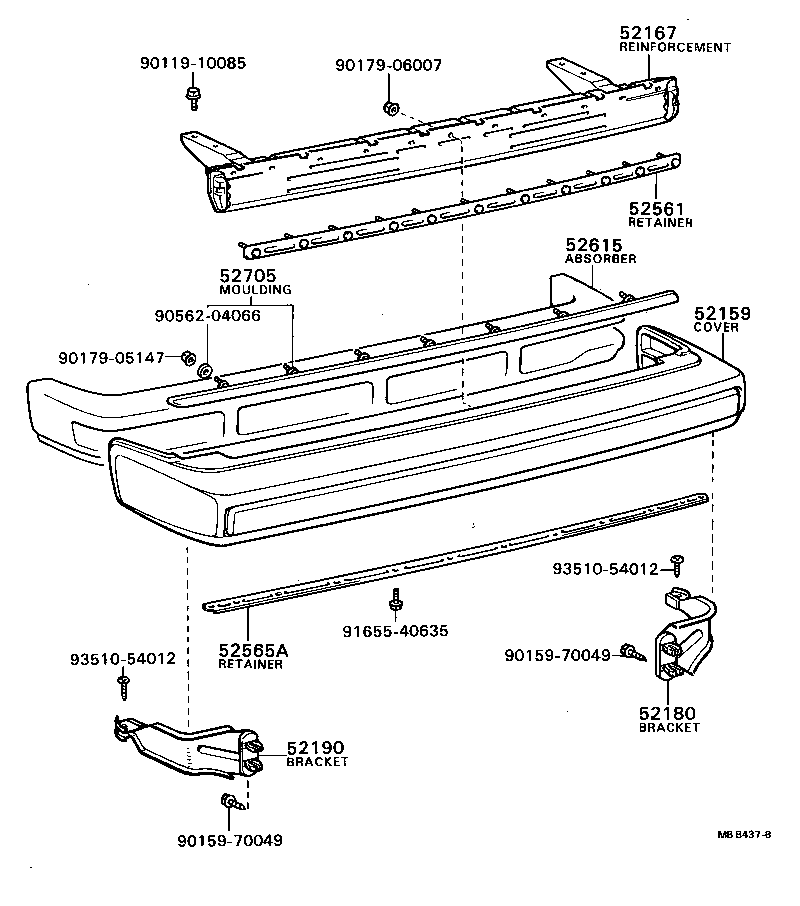

(8008-8112)DLX..LNK..GEN,PHL

Click highlighted areas on diagram

diagram 52159 52167 52180 52190 52561 52565A 52615 52705 9011910085 9015970049 9015970049 9017905147 9017906007 9056204066 9165540635 9351054012 9351054012
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20031

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52167 - REINFORCEMENT, REAR BUMPER
52023-20041

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52180-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52190-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20020

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14020

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52705 - MOULDING SUB-ASSY, REAR BUMPER
52705-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
Common parts
90119-10085
90159-70049
90179-05147
90179-06007
90562-04066
91655-40635
93510-54012

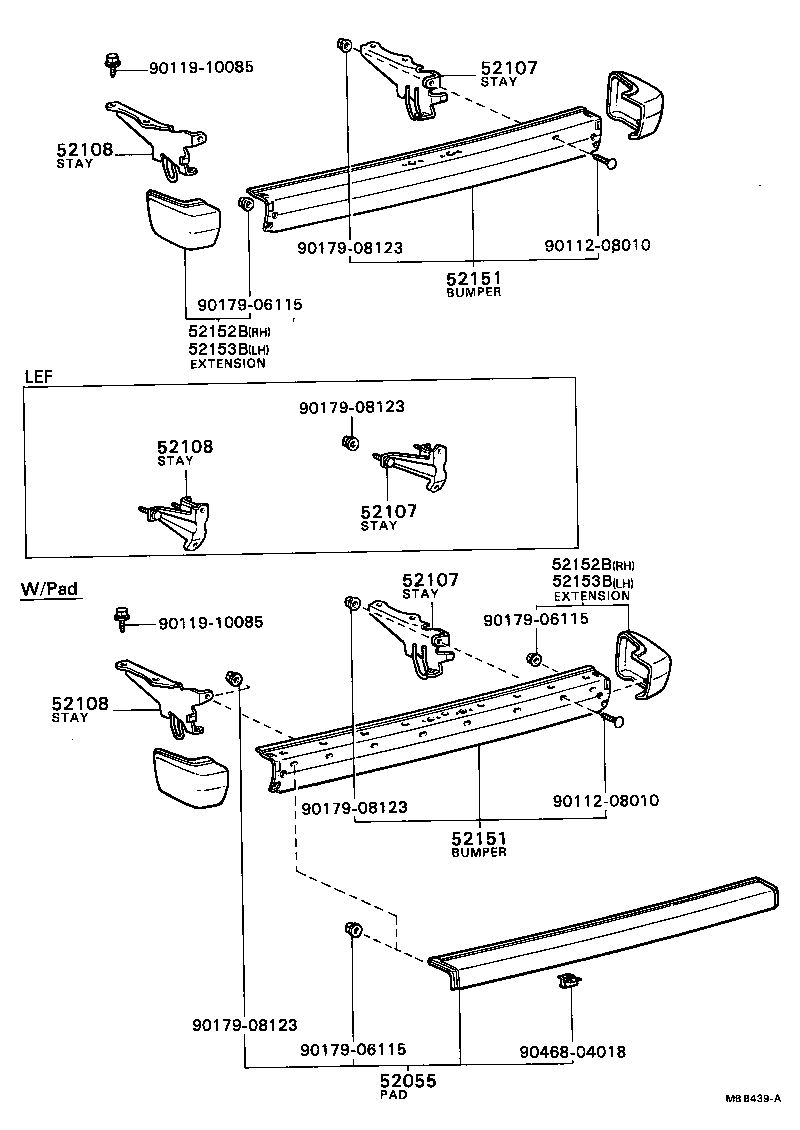

(8008- )RT13#,TT13#..HT,LB,SED

Click highlighted areas on diagram

diagram 52055 52107 52107 52107 52108 52108 52108 52151 52151 52152B 52152B 52153B 52153B 9011208010 9011208010 9011910085 9011910085 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9017908123 9046804018
Part # Description Qty Price
52055 - PAD SUB-ASSY, REAR BUMPER
52055-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20070

RT13#,TT13#,XT130..LNK

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20070

RT13#,TT13#,XT130..LNK

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20070

RT13#,TT13#,XT130..LNK

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20070

RT13#,TT13#,XT130..LNK

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20070

RT13#,TT13#,XT130..LNK

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20070

RT13#,TT13#,XT130..LNK

 1
52151 - BUMPER ASSY, REAR
52151-29315

RT13#,TT13#,XT130..(LB,SED)..(DLX,STD)

 1
52151-29325

RT13#,TT13#,XT130..LB,SED

W/PAD

 1
52151 - BUMPER ASSY, REAR
52151-29315

RT13#,TT13#,XT130..(LB,SED)..(DLX,STD)

 1
52151-29325

RT13#,TT13#,XT130..LB,SED

W/PAD

 1
Common parts
90112-08010
90119-10085
90179-06115
90179-08123
90468-04018
