TT132L-TEMDS (1978)
Toyota Corona

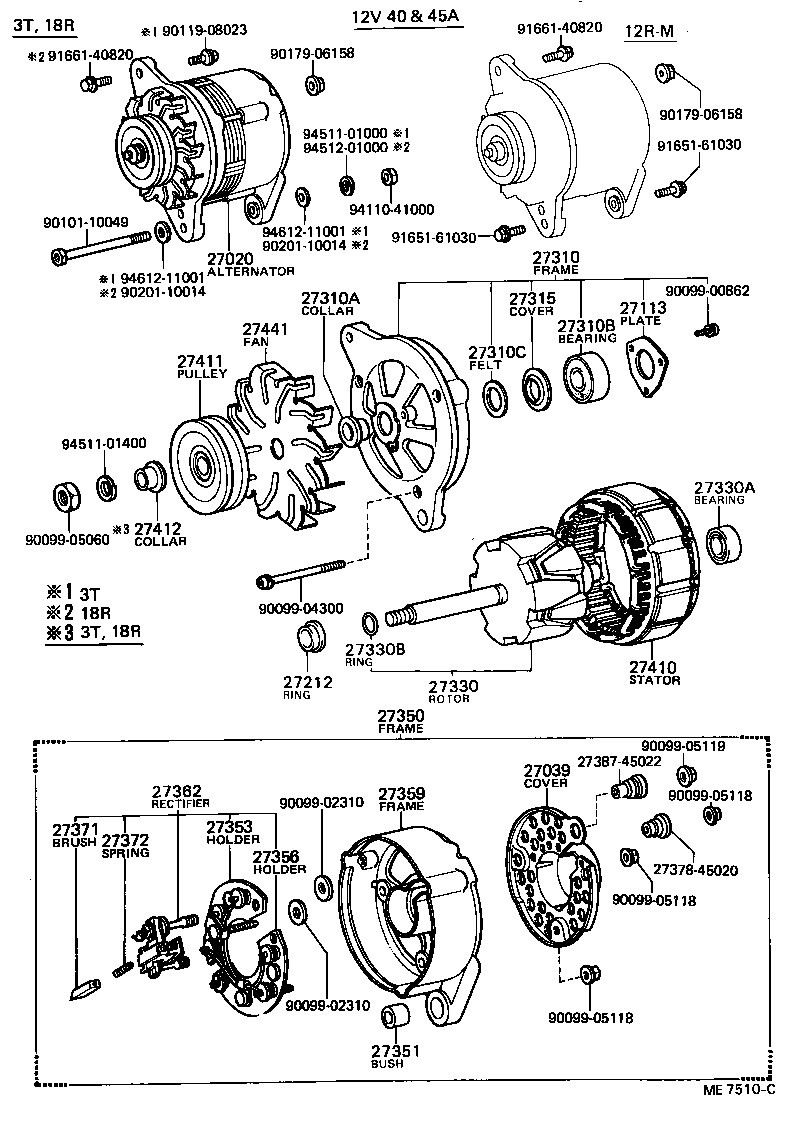

(7809-7911)2T,3T..GEN ; (7809-8003)12RM,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-36061 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27020-38120 |
3T..TT132..GEN 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132 12V 45A |
1 | ||
| 27039-36070 |
12R,18R,3T..RT13#,TT132 12V 45A |
1 | ||
| 27039-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12R#,18R,3T..RT130,132,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
12RM,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310-18010 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10109 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10126 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10111 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
12R#,18R,3T..RT130,132,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-36061 |
18R,3T..RT132,TT132 12V 45A |
1 | ||
| 27350-36061 |
12R,18R,3T..RT13#,TT132..GEN 12V 40A,45A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-26030 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-45070 |
18R,3T..RT132,TT132 12V 50A,55A |
1 | ||
| 27359-13050 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27359-36061 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
2 | ||
| 27371-44070 |
12RM,18R,2T,3T..RT13#,TT13# 12V 55A,W/IC REGULATOR |
2 | ||
| 27371-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372-31011 |
18R,3T..RT132,TT132..GEN 12V 45A |
2 | ||
| 90099-17114 |
12RM,18R#,2T,3T..RT13#,TT13# 12V 50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26030 |
12R,18R,3T..RT13#,TT132..GEN 12V 45A |
1 | ||
| 27410-38120 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21RC,12R#,18R#,2T,3T..RT13#,TT13# 12V 45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90201-10014 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||

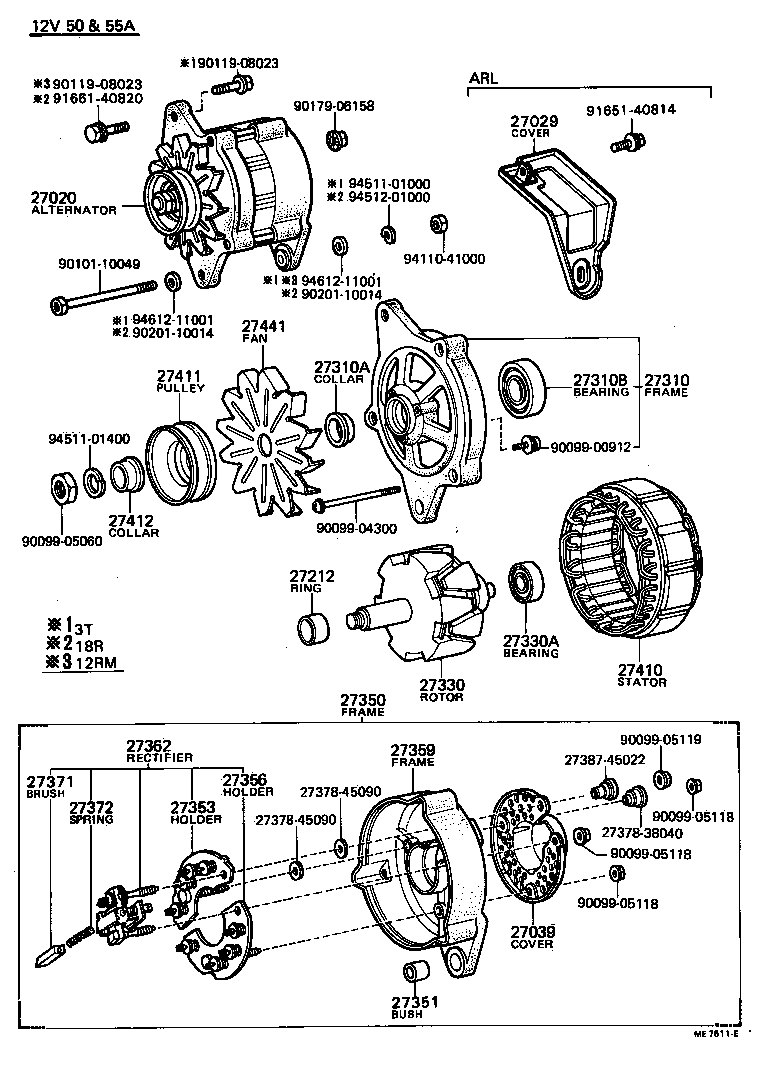

(7809-7908)3T..EUR ; (7809- )21RC,18R#,2T ; (7908-8008)3T..RHD ; (7908-8008)3T..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-36061 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27020-38120 |
3T..TT132..GEN 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132 12V 45A |
1 | ||
| 27039-36070 |
12R,18R,3T..RT13#,TT132 12V 45A |
1 | ||
| 27039-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12R#,18R,3T..RT130,132,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
12RM,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310-18010 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10109 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10126 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10111 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-36061 |
18R,3T..RT132,TT132 12V 45A |
1 | ||
| 27350-36061 |
12R,18R,3T..RT13#,TT132..GEN 12V 40A,45A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-26030 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-45070 |
18R,3T..RT132,TT132 12V 50A,55A |
1 | ||
| 27359-13050 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27359-36061 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
2 | ||
| 27371-44070 |
12RM,18R,2T,3T..RT13#,TT13# 12V 55A,W/IC REGULATOR |
2 | ||
| 27371-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372-31011 |
18R,3T..RT132,TT132..GEN 12V 45A |
2 | ||
| 90099-17114 |
12RM,18R#,2T,3T..RT13#,TT13# 12V 50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26030 |
12R,18R,3T..RT13#,TT132..GEN 12V 45A |
1 | ||
| 27410-38120 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21RC,12R#,18R#,2T,3T..RT13#,TT13# 12V 45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90201-10014 | ||||
| 90999-05118 | ||||
| 91651-40814 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||

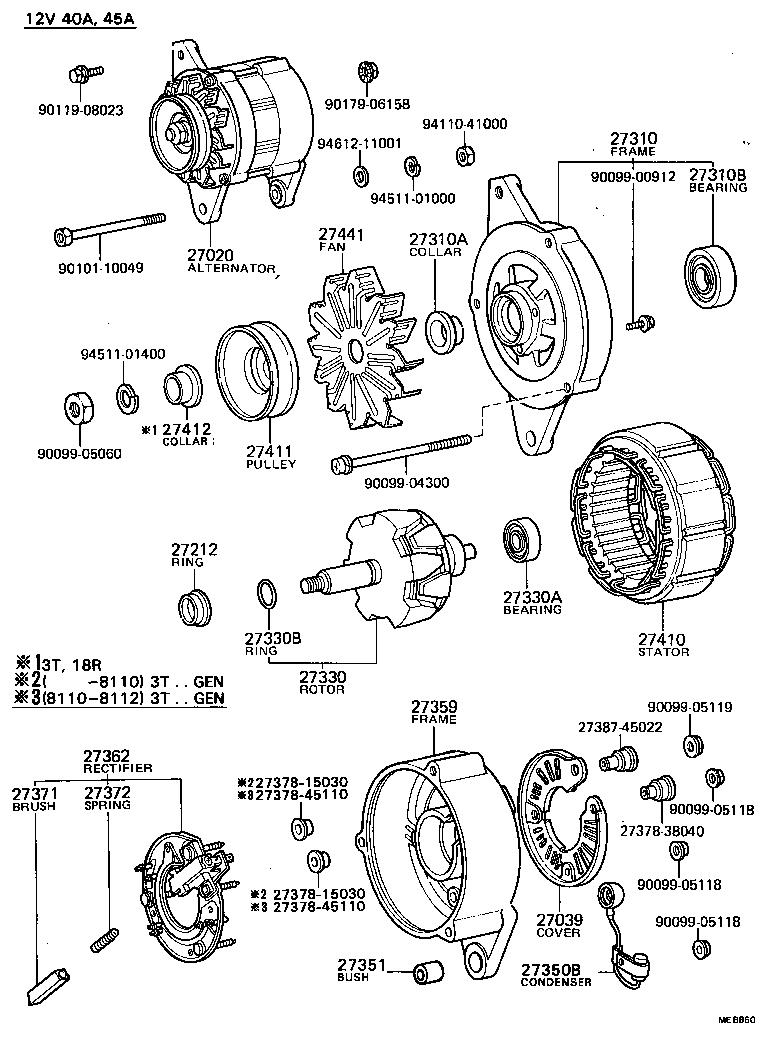

(7911-8112)3T..GEN ; (8003-8205)12RM,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-36061 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27020-38120 |
3T..TT132..GEN 12V 45A,12V 45A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27039-36070 |
18R,3T..RT132,TT132 12V 45A |
1 | ||
| 27039-36070 |
12R,18R,3T..RT13#,TT132 12V 45A |
1 | ||
| 27039-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
12R#,18R,3T..RT130,132,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
12RM,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27310-18010 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10109 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10126 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
18R,3T..RT132,TT132..GEN 12V 45A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 90099-10111 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
12R#,18R,3T..RT130,132,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-45070 |
18R,3T..RT132,TT132 12V 50A,55A |
1 | ||
| 27359-13050 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27359-36061 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
12R#,18R,3T..RT13#,TT132..GEN,PHL 12V 40A,45A |
1 | ||
| 27362-15030 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-44070 |
18R#,2T,3T..RT132,TT13# 12V 50A,55A |
2 | ||
| 27371-44070 |
12RM,18R,2T,3T..RT13#,TT13# 12V 55A,W/IC REGULATOR |
2 | ||
| 27371-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R,3T..RT13#,TT132 12V 40A,45A,50A,55A |
2 | ||
| 27372-31011 |
18R,3T..RT132,TT132..GEN 12V 45A |
2 | ||
| 90099-17114 |
12RM,18R#,2T,3T..RT13#,TT13# 12V 50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26030 |
12R,18R,3T..RT13#,TT132..GEN 12V 45A |
1 | ||
| 27410-38120 |
3T..TT132..GEN 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
21RC,18R#,2T,3T..RT132,133,TT13# 12V 45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21RC,12R#,18R#,2T,3T..RT13#,TT13# 12V 45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27378-45110 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
