TT132L-TEKNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

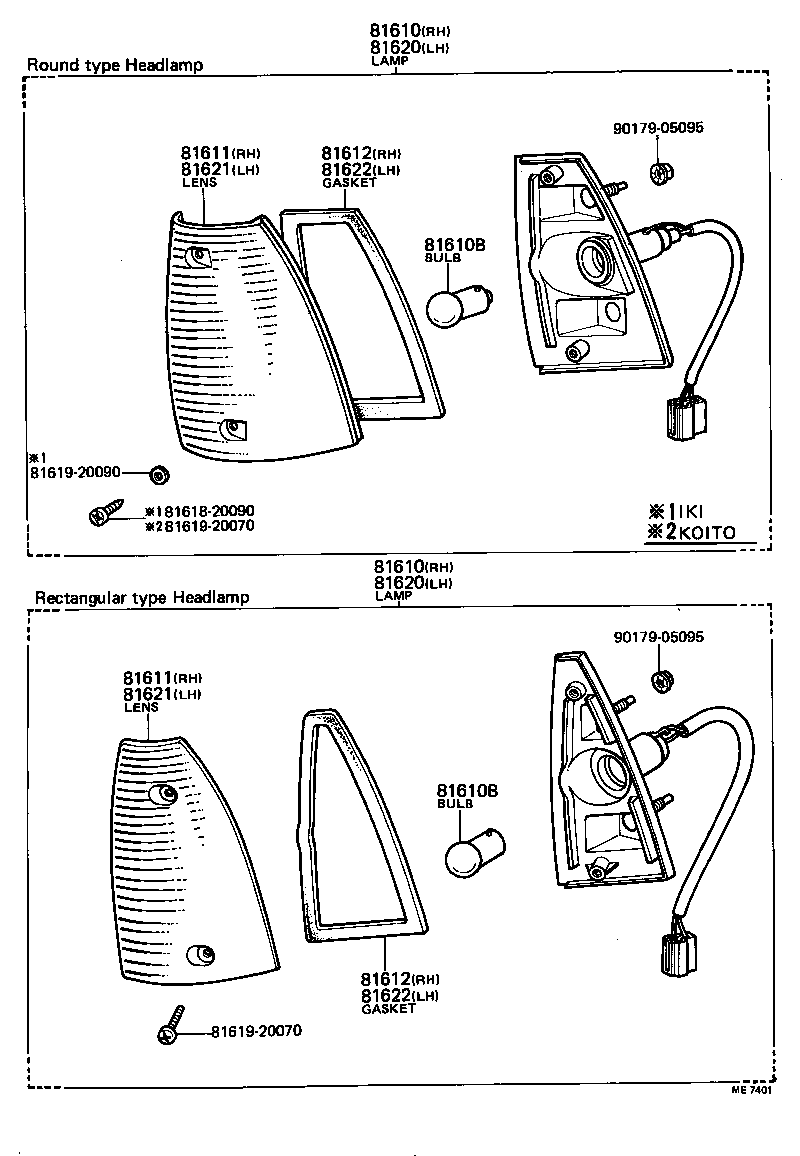

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81611 81611 81612 81612 8161820090 8161920070 8161920070 8161920090 81620 81620 81621 81621 81622 81622 9017905095 9017905095
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29155

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29155

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

RT13#,TT13#,XT130

12V 5W,12V 5W,W/*REC HEADLAMP

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

RT13#,TT13#,XT130

12V 5W,12V 5W,W/*REC HEADLAMP

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20130

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20130

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-20110

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-20110

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29145

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29145

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20130

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20130

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81612-20110

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81612-20110

RT13#,TT13#,XT130

KOITO,W/*REC HEADLAMP

 1
Common parts
81618-20090
81619-20070
81619-20090
90179-05095
