TT132L-TEKNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

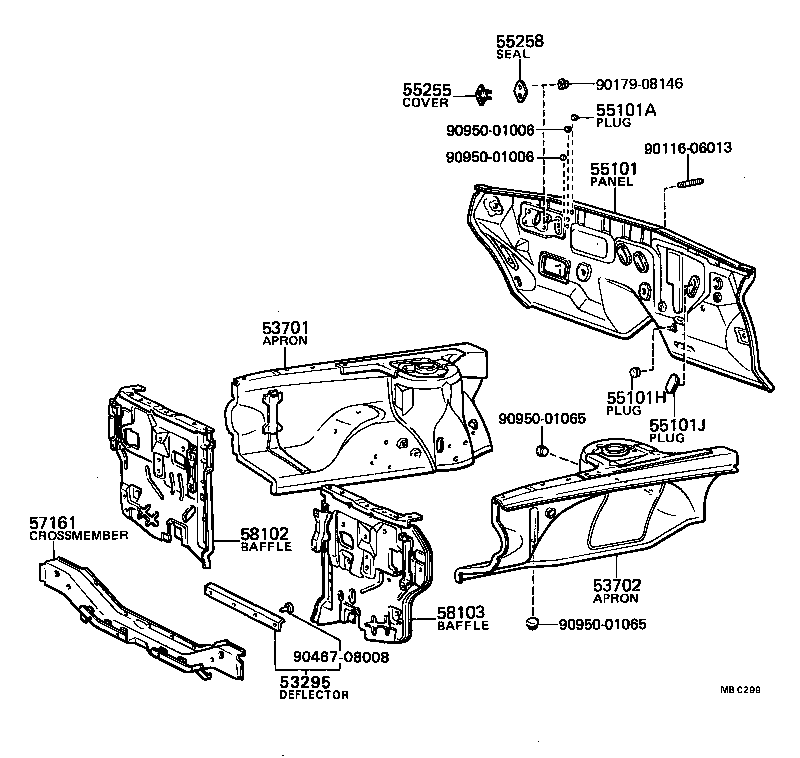

Click highlighted areas on diagram

diagram 53295 53701 53702 55101 55101A 55101H 55101J 55255 55258 57161 58102 58103 9011606013 9017908146 9046708008 9095001006 9095001006 9095001065 9095001065
Part # Description Qty Price
53295 - DEFLECTOR, RADIATOR LOWER AIR
53295-14021

RT13#,TT13#,XT130

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20350

RT132,TT13#,XT130

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20360

RT132,TT13#,XT130

 1
55101 - PANEL SUB-ASSY, DASH
55101-20903

TT132..LHD

 1
55101-20907

TT13#..LHD

 1
55101A - PLUG, HOLE, NO.1(FOR DASH PANEL)
90950-01133

RT13#,TT13#

 1
55101H - PLUG, HOLE, NO.2(FOR DASH PANEL)
90950-01060

RT13#,TT13#,XT130

 1
55101J - PLUG, HOLE, NO.3(FOR DASH PANEL)
90950-01189

RT13#,TT13#,XT130

 1
57161 - CROSSMEMBER, FRONT
57104-20900

RT13#,TT132

 1
58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH
53202-20040

TT13#

 1
58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH
53203-20040

RT13#,TT13#,XT130

 1
Common parts
90116-06013
90179-08146
90467-08008
90950-01006
90950-01065
