TT132L-TEKNSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8205)LHD

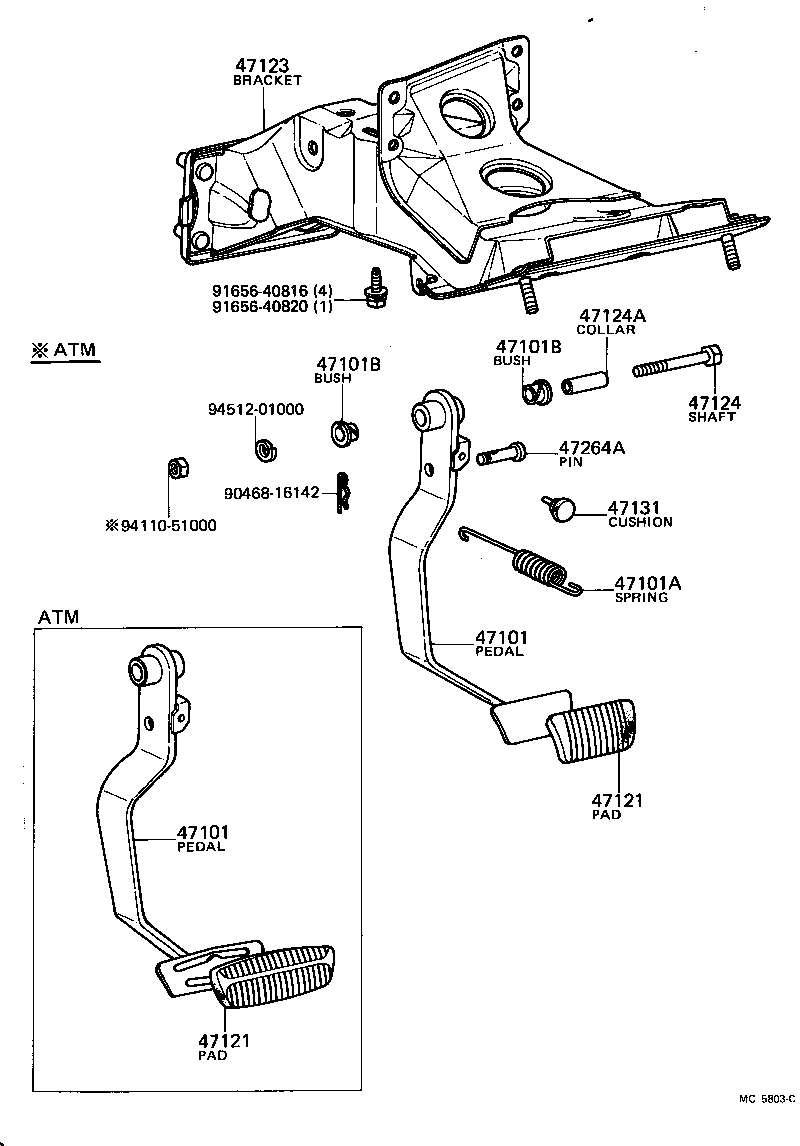

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-20220 |
RT13#,TT132..LHD..MTM |
1 | ||
| 47101-20221 |
RT13#,TT132..LHD..MTM |
1 | ||
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-20220 |
RT13#,TT132..LHD..MTM |
1 | ||
| 47101-20221 |
RT13#,TT132..LHD..MTM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14004 |
RT13#,TT132 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
RT13#,TT13#,XT130 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13192 |
RT13#,TT13#,XT130 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14010 |
RT130,132,TT13#..LHD..MTM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14010 |
RT130,132,TT13#..LHD..MTM |
1 | ||
| 47123 - BRACKET, BRAKE PEDAL | ||||
| 55106-20160 |
RT13#,TT132..LHD |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10039 |
RT13#,TT132 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
RT13#,TT132 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06008 |
RT13#,TT13#,XT130 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10064 |
RT13#,TT13#,XT130 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
