Toyota Corona TT132 FLOOR SIDE MEMBER

Manufacturers Home
Toyota
GR
CORONA
TT132L-TEKDS (1978)
5305 - FLOOR SIDE MEMBER

TT132L-TEKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981

Engine 3T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7809-8008)HT,LB,SED

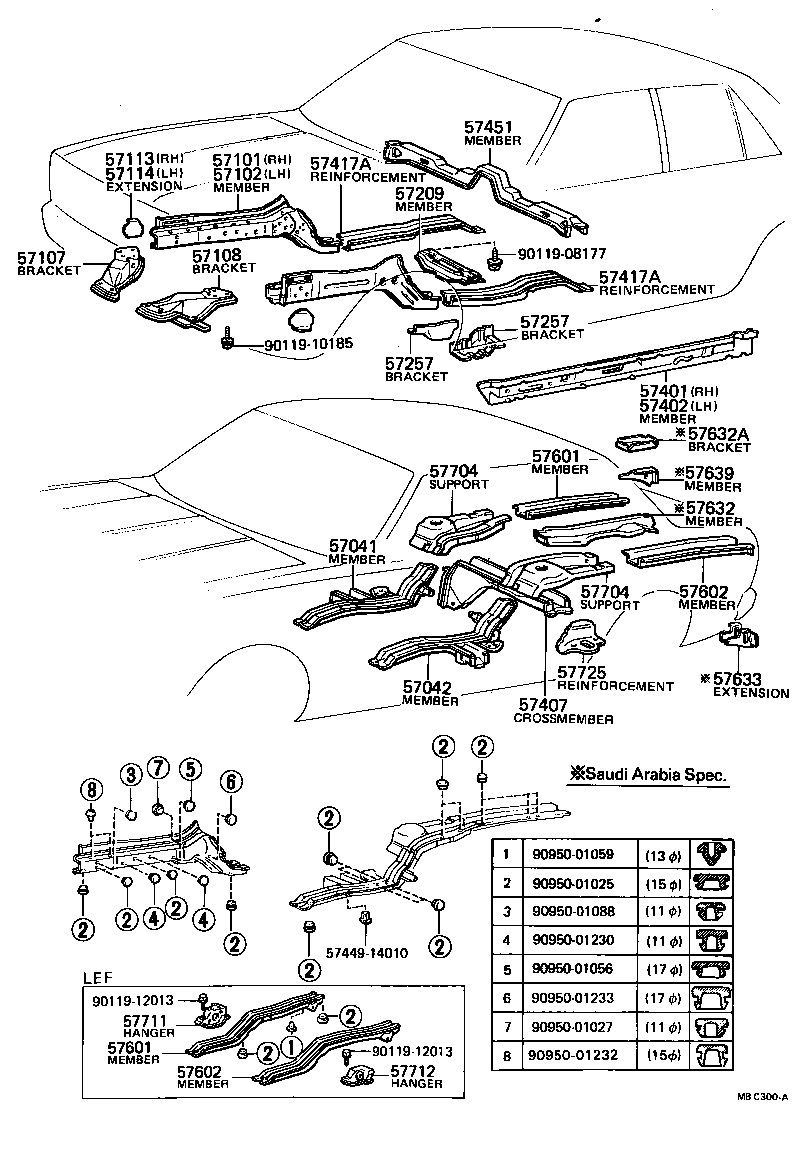

Click highlighted areas on diagram

Part #	Description	Period	Qty
57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57041-20011	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57041-20020	RT13#,TT13#,XT130..LNK	09/1978 - 11/1980	1
57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57042-20020	RT13#,TT13#,XT130..LNK	09/1978 - 11/1980	1
57042-20011	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57101-20220	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20200	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14061	RT13#,TT132	09/1978 - 08/1980	1
57209-15011	TT132..MTM	08/1981 - 12/1981	1
57209-14061	RT13#,TT132..ARL,GEN,PHL	08/1980 - 08/1981	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20150	RT13#,TT13#,XT130..SED..LNK	09/1978 - 01/1983	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20150	RT13#,TT13#,XT130..SED..LNK	09/1978 - 01/1983	1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57405-14021	RT13#,TT132..LNK	09/1978 - 01/1979	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57601-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57601-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57701-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57704-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57701-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57704-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
57725 - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
57725-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57726-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
Common parts
57449-14010
90050-01025
90119-08177
90119-10185
90119-12013
90950-01027
90950-01056
90950-01059
90950-01088
90950-01230
90950-01232
90950-01233

(8008- )HT,LB,SED

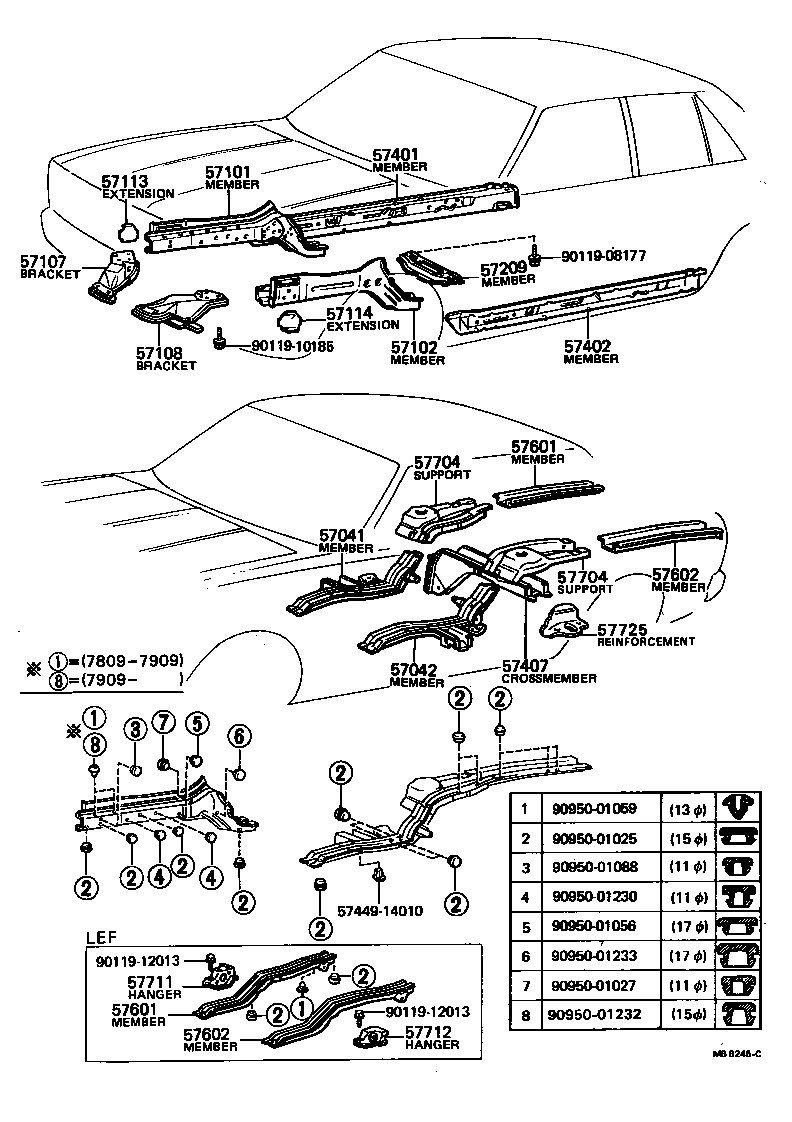

Click highlighted areas on diagram

Part #	Description	Period	Qty
57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57041-20011	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57041-20020	RT13#,TT13#,XT130..LNK	09/1978 - 11/1980	1
57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57042-20020	RT13#,TT13#,XT130..LNK	09/1978 - 11/1980	1
57042-20011	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57101-20220	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20200	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14061	RT13#,TT132	09/1978 - 08/1980	1
57209-15011	TT132..MTM	08/1981 - 12/1981	1
57209-14061	RT13#,TT132..ARL,GEN,PHL	08/1980 - 08/1981	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20150	RT13#,TT13#,XT130..SED..LNK	09/1978 - 01/1983	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20150	RT13#,TT13#,XT130..SED..LNK	09/1978 - 01/1983	1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57405-14021	RT13#,TT132..LNK	09/1978 - 01/1979	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57601-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57601-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20080	RT13#,TT13#,XT130..LNK	09/1978 - 08/1980	1
57602-20090	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57632 - MEMBER, REAR FLOOR, CENTER NO.1
57632-14020	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	07/1981 - 12/1981	1
57632-14010	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 07/1981	1
57632A - BRACKET, REAR BUMPER ARM SUPPORT, CENTER
57616-14050	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57633 - EXTENSION, REAR FLOOR SIDE MEMBER
57633-20020	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57639 - MEMBER, REAR FLOOR, CENTER NO.2
57639-14010	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	12/1980 - 07/1981	1
57639-14020	TT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK SAUDI ARABIA SPEC	07/1981 - 12/1981	1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57701-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57704-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57701-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57704-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
57725 - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
57725-14010	RT13#,TT13#,XT130..LNK RH	09/1978 - 01/1983	1
57726-14010	RT13#,TT13#,XT130..LNK LH	09/1978 - 01/1983	1
Common parts
57449-14010
90119-08177
90119-10185
90119-12013
90950-01025
90950-01027
90950-01056
90950-01059
90950-01088
90950-01230
90950-01232
90950-01233

TT132L-TEKDS (1978)

(7809-8008)HT,LB,SED

(8008- )HT,LB,SED
