TT132L-TEHRS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)HT,LB,SED

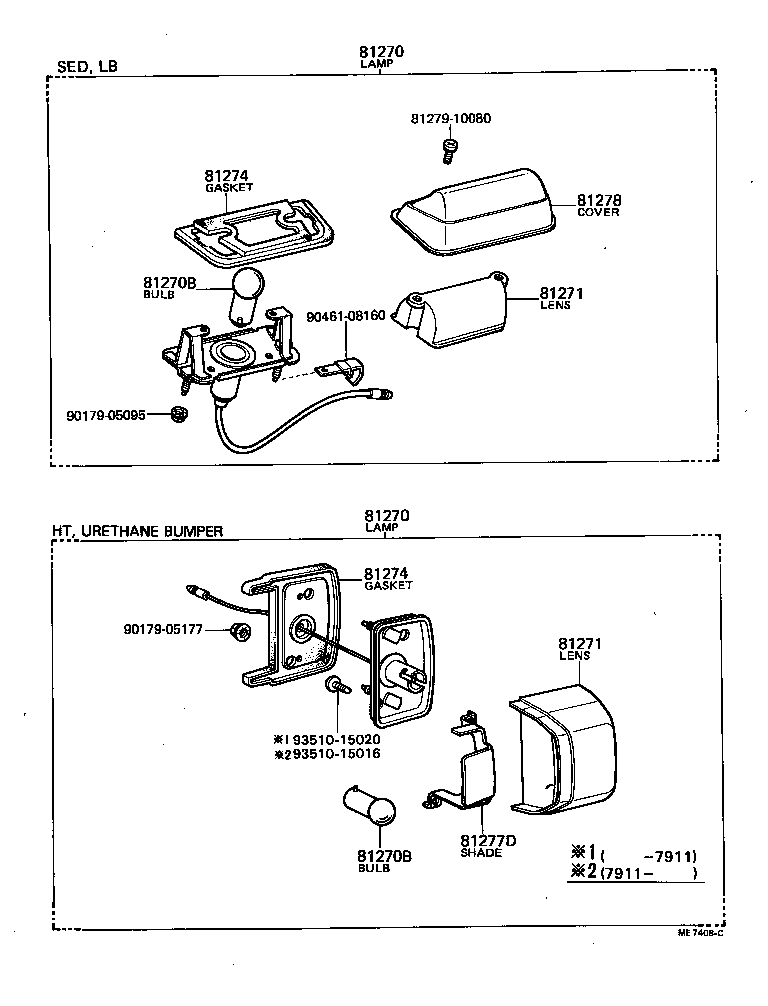

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29386 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81270-29385 |
RT13#,TT132..LB,SED |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29386 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81270-29385 |
RT13#,TT132..LB,SED |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11050 |
RT13#,TT13#,XT130..LB,SED 12V 5W,12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11050 |
RT13#,TT13#,XT130..LB,SED 12V 5W,12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20120 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20120 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81272-20120 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81272-20120 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81276-20120 |
RT13#,TT13#,XT130..LB,SED |
2 | ||
| Common parts | ||||
| 81279-10080 | ||||
| 90179-05095 | ||||
| 90179-05177 | ||||
| 90461-08160 | ||||
| 93510-15016 | ||||
| 93510-15020 | ||||
