TT132L-TEHRS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )LB,SED,WG

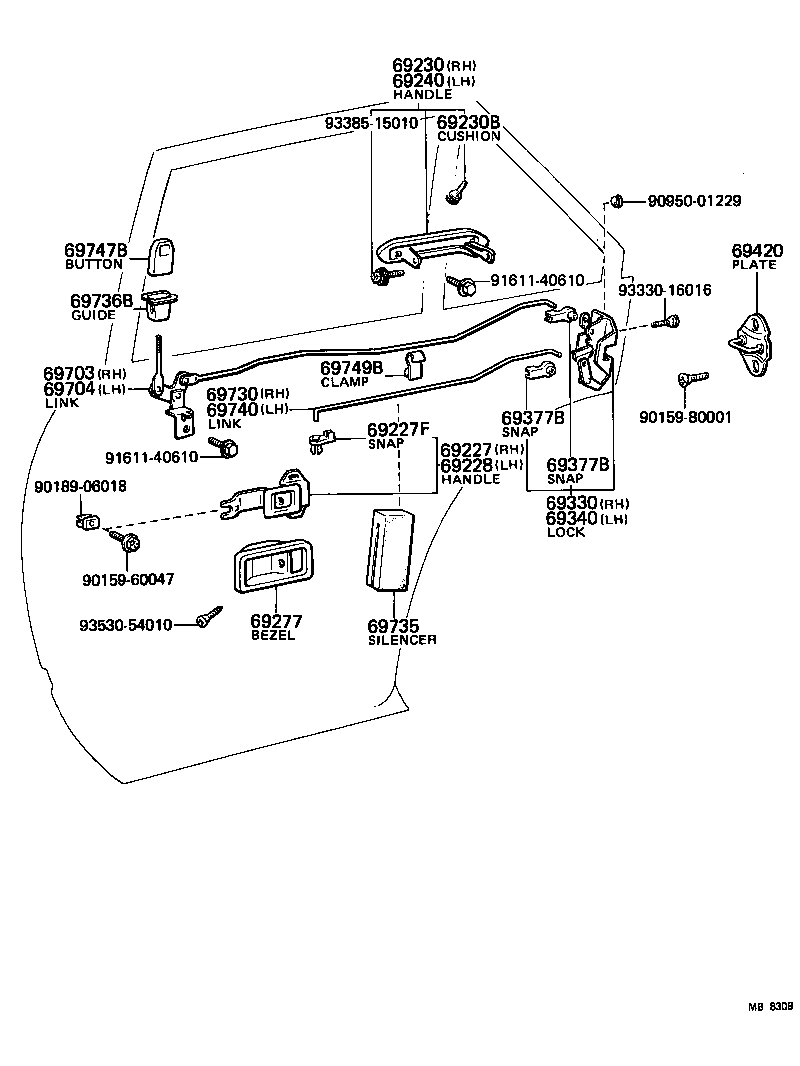

Click highlighted areas on diagram

diagram 69227 69227F 69228 69230 69230B 69240 69277 69330 69340 69377B 69377B 69420 69703 69704 69730 69735 69736B 69740 69747B 69749B 9015960047 9015980001 9018906018 9095001229 9161140610 9161140610 9333016016 9338515010 9353054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-20020

RT13#,TT13#,XT130..LB,SED,WG

 1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69273-30020

RT13#,TT13#,XT130..LB,SED,WG

 2
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-20020

RT13#,TT13#,XT130..LB,SED,WG

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20050

RT13#,TT13#,XT130..LB,SED,WG

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

RT13#,TT13#,XT130..LB,SED,WG

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20050

RT13#,TT13#,XT130..LB,SED,WG

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-1604002

RT13#,TT13#,XT130..LB,SED

DARK WINE,RED/MAROON,TRIM3#

 1
69277-1604001

RT13#,TT13#,XT130..LB,SED,WG

BLACK,BLACK,TRIM2#

 1
69277-1604005

RT13#,TT13#,XT130..LB,SED,WG

BEIGE,BEIGE,TRIM4#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-20060

RT13#,TT13#,XT130..LB,SED,WG

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-20060

RT13#,TT13#,XT130..LB,SED,WG

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69377-30020

RT13#,TT13#,XT130..LB,SED,WG

 4
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69377-30020

RT13#,TT13#,XT130..LB,SED,WG

 4
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-22020

RT13#,TT13#,XT130..LB,SED,WG

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-20010

RT13#,TT13#,XT130..LB,SED,WG

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-20010

RT13#,TT13#,XT130..LB,SED,WG

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-20030

RT13#,TT13#,XT130..LB,SED,WG

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-30021

RT13#,TT13#,XT130..LB,SED,WG

 2
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-20030

RT13#,TT13#,XT130..LB,SED,WG

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-2002005

RT13#,TT13#,XT130..LB,SED,WG

BEIGE,BEIGE,TRIM4#

 2
69741-2002001

RT13#,TT13#,XT130..LB,SED,WG

BLACK,BLACK,TRIM2#

 2
69741-2002002

RT13#,TT13#,XT130..LB,SED

DARK WINE,RED/MAROON,TRIM3#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

RT13#,TT13#,XT130..LB,SED,WG

 2
Common parts
90159-60047
90159-80001
90189-06018
90950-01229
91611-40610
93330-16016
93385-15010
93530-54010
