TT132L-TEHNSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)RT132,133,TT132..ATM

Click highlighted areas on diagram

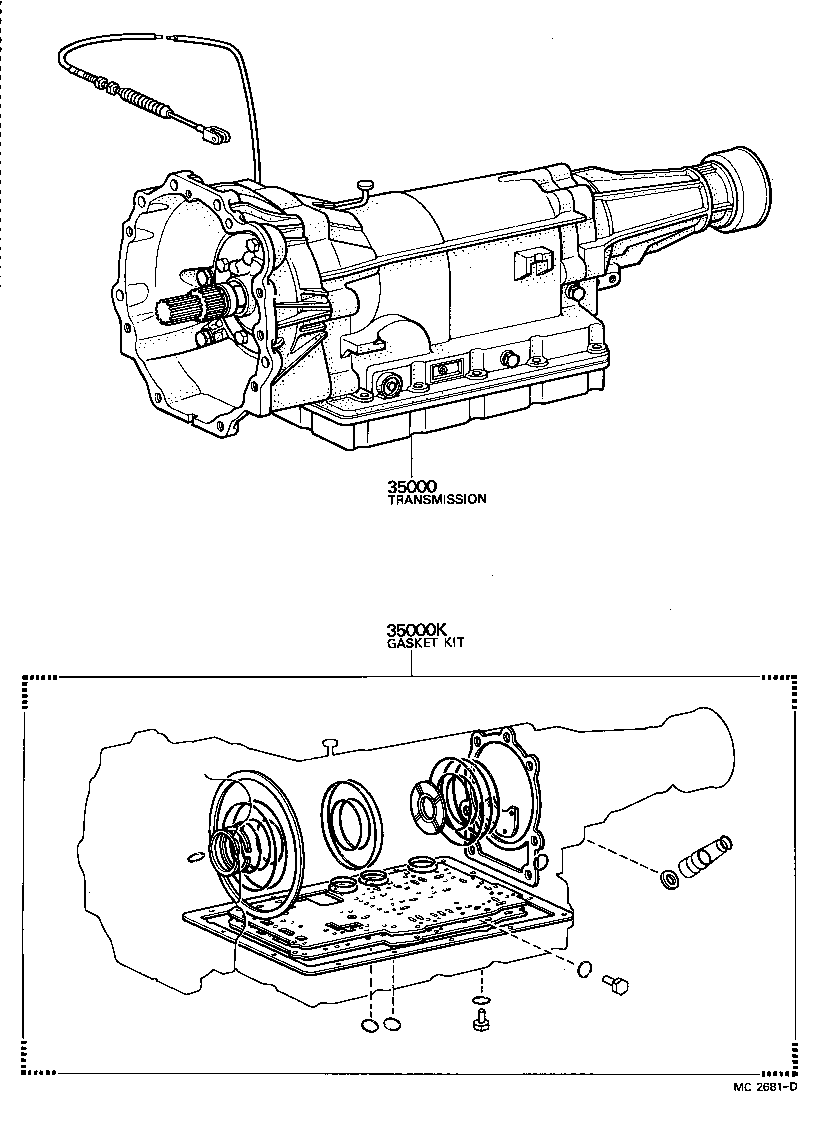

diagram 35000 35000K
Part # Description Qty Price
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-20530

TT132..3FC..LNK

SMG R=20:6,DIFF R=3.909OR4.100

 1
35000-20631

TT132..3FC..EUR

SMG R=19:6,DIFF R=4.100

 1
35000-20630

TT132..3FC..EUR

SMG R=19:6,DIFF R=4.100

 1
35000-20531

TT132..3FC..LNK

SMG R=20:6,DIFF R=3.909OR4.100

 1
35000K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22020

TT132..3FC

 1
