Toyota Corona ST220 WIRING & CLAMP

ST220R-AEPNK (1997)

Toyota Corona

Production Oct 1997 - Jan 2003

Engine 3SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(9710- )

Click highlighted areas on diagram

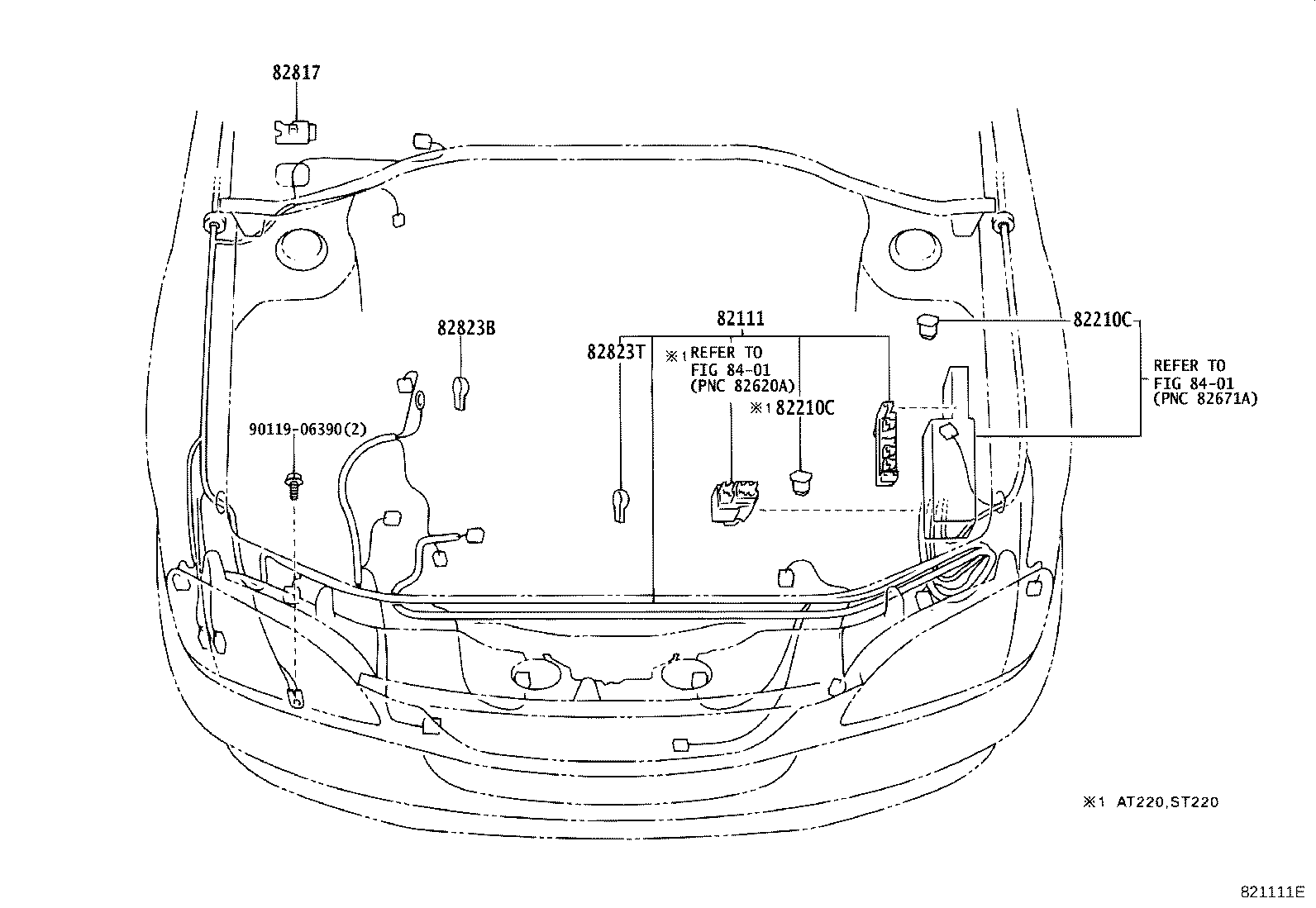

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-05760	ST220..RHD	10/1997 - 07/2000	1
82115-05280	ST220..RHD	07/2000 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	AT220,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08284	AT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 12/2999	2
90982-08270	AT220,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
90982-08283	AT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 12/2999	2
90982-08285	AT220,CT220,ST220 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	AT220,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08284	AT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 12/2999	2
90982-08270	AT220,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
90982-08283	AT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 12/2999	2
90982-08285	AT220,CT220,ST220 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D090	AT220,ST220..RHD	10/1997 - 12/2999	1
82823B - CAP, TERMINAL, NO.3
82823-22050	ST220	10/1997 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-20070	AT220,ST220	10/1997 - 07/2000	1
Common parts
90119-06390
Linked diagrams
8401

ILLUST NO. 2 OF 7(9710- )ST220

Click highlighted areas on diagram

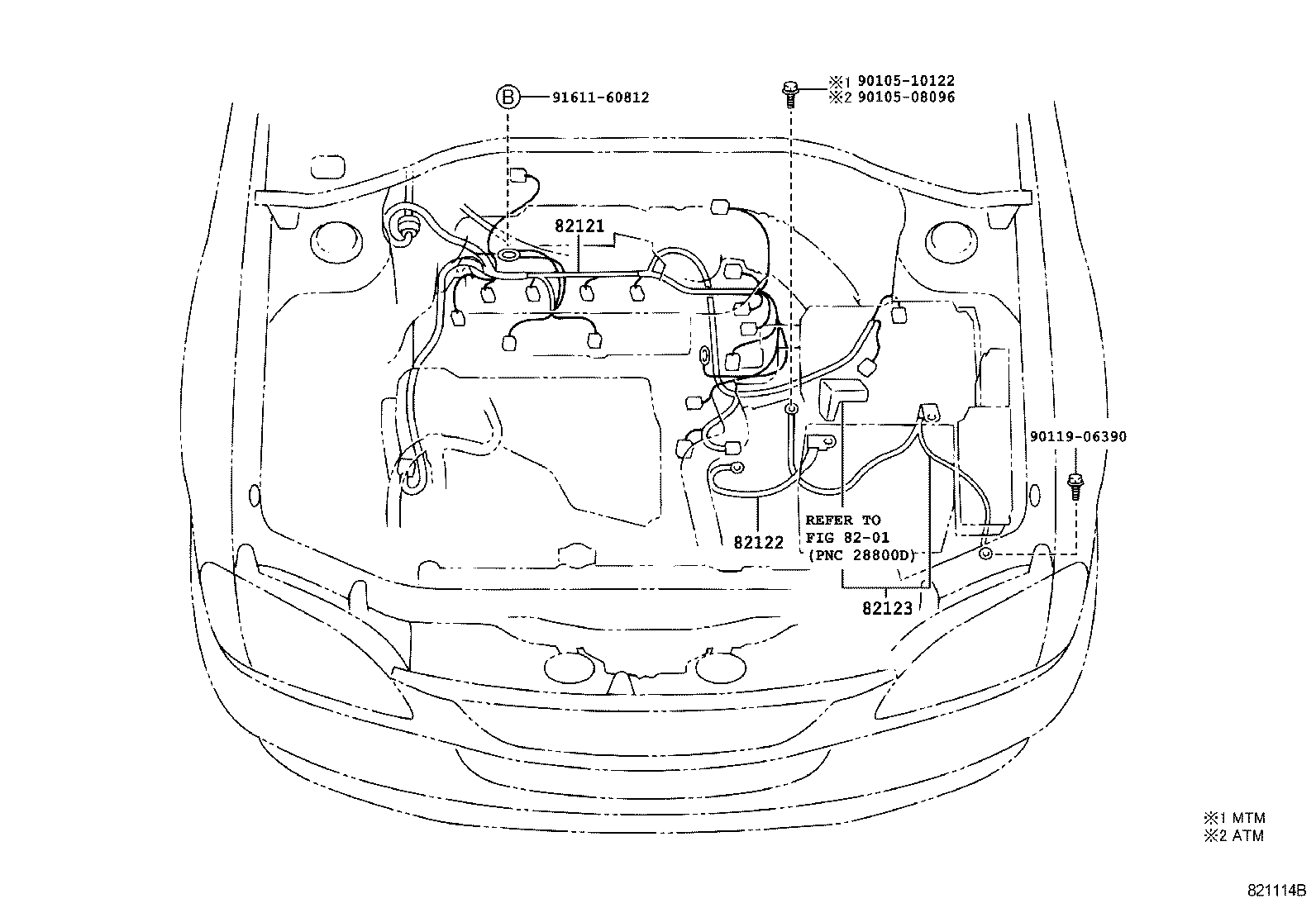

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2M480	ST220..RHD..ATM	07/2000 - 12/2999	1
82121-2M270	ST220..RHD..ATM	10/1997 - 07/2000	1
82122 - WIRE, ENGINE, NO.2
82122-05010	ST220	10/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-05080	ST220	07/2000 - 12/2999	1
82123-05050	ST220	10/1997 - 07/2000	1
Common parts
90105-08096
90105-10122
90119-06390
91611-60812
Linked diagrams
8201

ILLUST NO. 5 OF 7(9710- )RHD

Click highlighted areas on diagram

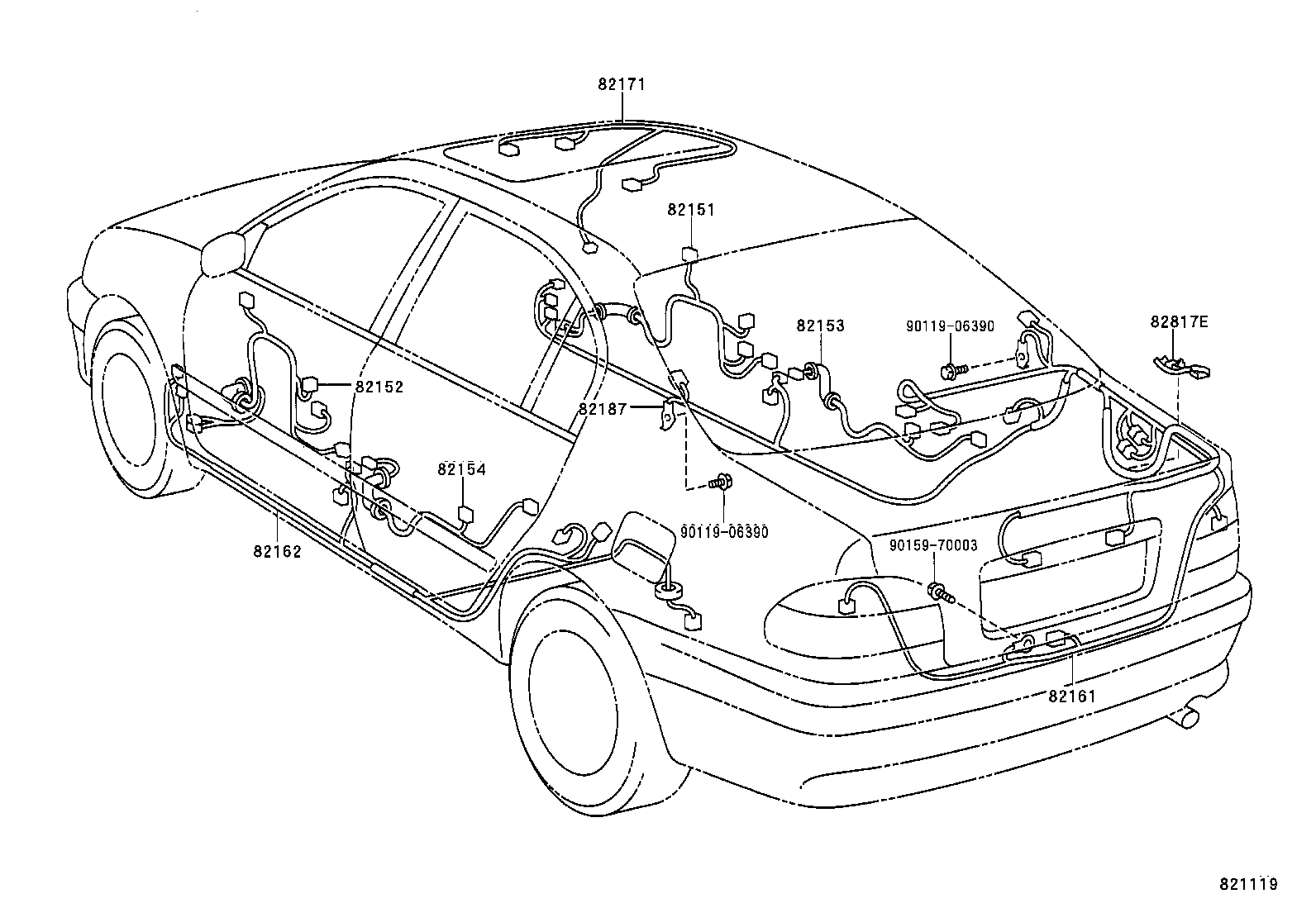

DOOR,FLOOR,ROOF

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-05300	AT220,ST220..RHD	10/1997 - 07/2000	1
82151-05410	ST220..RHD	07/2000 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-05410	ST220..RHD	07/2000 - 12/2999	1
82152-05320	AT220,ST220..RHD	10/1997 - 07/2000	1
82153 - WIRE, REAR DOOR, NO.1
82153-05100	AT220,CT220,ST220 W(POWER WINDOW---FRONT & REAR)	10/1997 - 07/2000	1
82153-05080	AT220,CT220,ST220	10/1997 - 07/2000	1
82153-05110	ST220	07/2000 - 12/2999	1
82153-05120	ST220 W(POWER WINDOW---FRONT & REAR)	07/2000 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-05080	AT220,CT220,ST220	10/1997 - 07/2000	1
82154-05110	ST220	07/2000 - 12/2999	1
82154-05100	AT220,CT220,ST220 W(POWER WINDOW---FRONT & REAR)	10/1997 - 07/2000	1
82154-05120	ST220 W(POWER WINDOW---FRONT & REAR)	07/2000 - 12/2999	1
82161 - WIRE, FLOOR
82161-05530	AT220,ST220..RHD	10/1997 - 07/2000	1
82161-05540	AT220,ST220..RHD W(POWER WINDOW---FRONT & REAR)	10/1997 - 07/2000	1
82161-05580	ST220..RHD	07/2000 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-05280	ST220..RHD	07/2000 - 12/2999	1
82162-05210	AT220,ST220..RHD	10/1997 - 07/2000	1
82171 - WIRE, ROOF, NO.1
82171-05151	AT220,ST220..RHD W(MOON ROOF)	05/1999 - 12/2999	1
82171-05141	AT220,ST220..RHD	05/1999 - 12/2999	1
82171-05150	AT220,ST220..RHD W(MOON ROOF)	10/1997 - 05/1999	1
82171-05140	AT220,ST220..RHD	10/1997 - 05/1999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-05020	AT220,CT220,ST220	10/1997 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-05090	AT220,CT220,ST220	10/1997 - 12/2999	1
Common parts
90119-06390
90159-70003

ILLUST NO. 6 OF 7(9710- )

Click highlighted areas on diagram

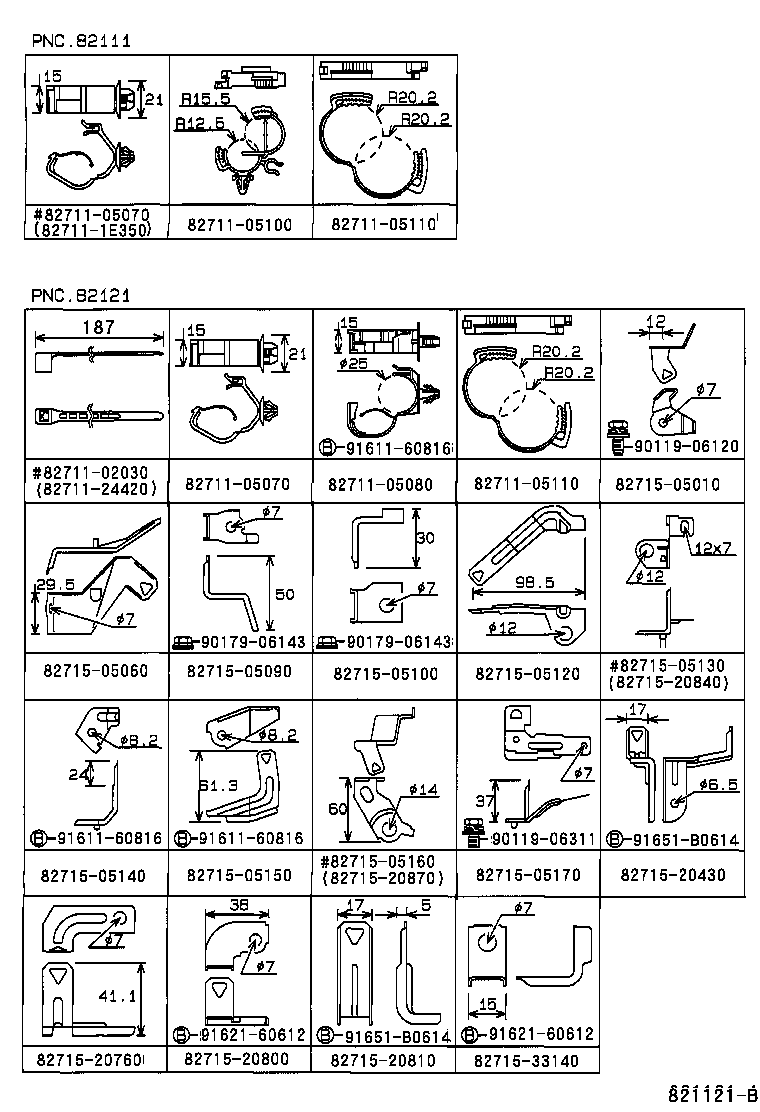

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-02030
82711-05070
82711-05080
82711-05100
82711-05110
82711-1E350
82711-24420
82715-05010
82715-05060
82715-05090
82715-05100
82715-05120
82715-05130
82715-05140
82715-05150
82715-05160
82715-05170
82715-20430
82715-20760
82715-20800
82715-20810
82715-20840
82715-20870
82715-33140
90119-06120
90119-06311
90179-06143
91611-60816
91621-60612
91651-B0614

ILLUST NO. 6 OF 7(9710- )

Click highlighted areas on diagram

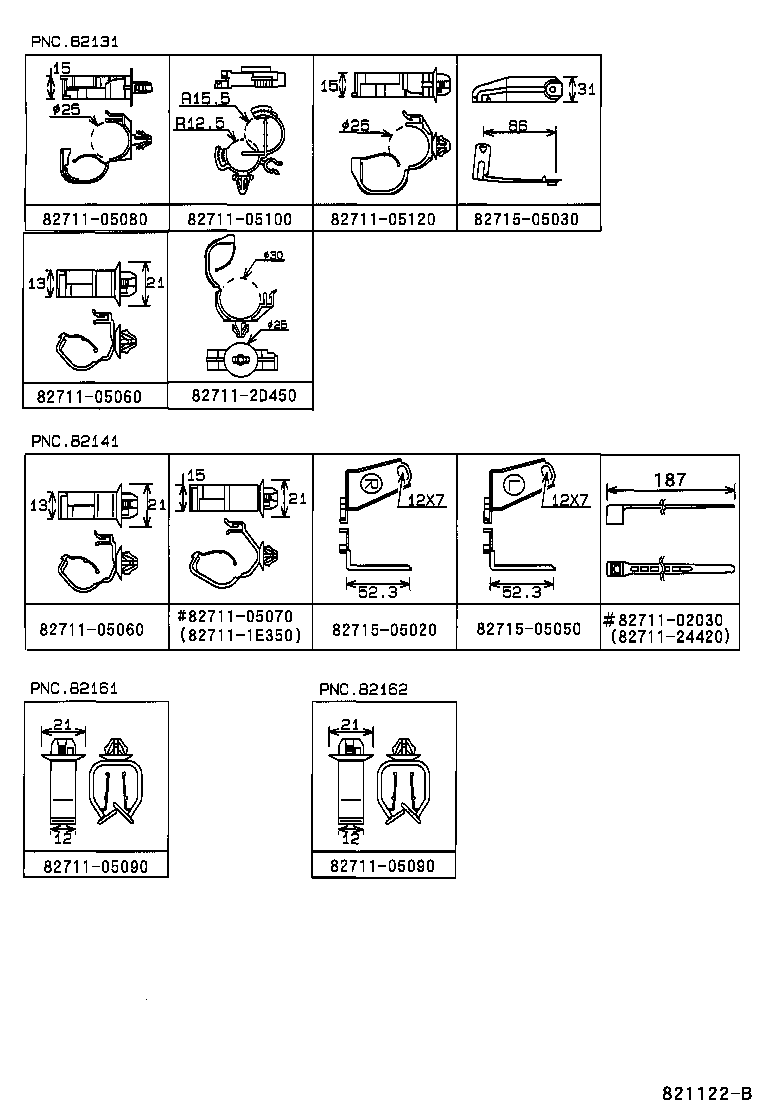

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-02030
82711-05060
82711-05070
82711-05080
82711-05090
82711-05100
82711-05120
82711-1E350
82711-24420
82711-2D450
82715-05020
82715-05030
82715-05050

ILLUST NO. 7 OF 7(9710- )AT220,ST220

Click highlighted areas on diagram

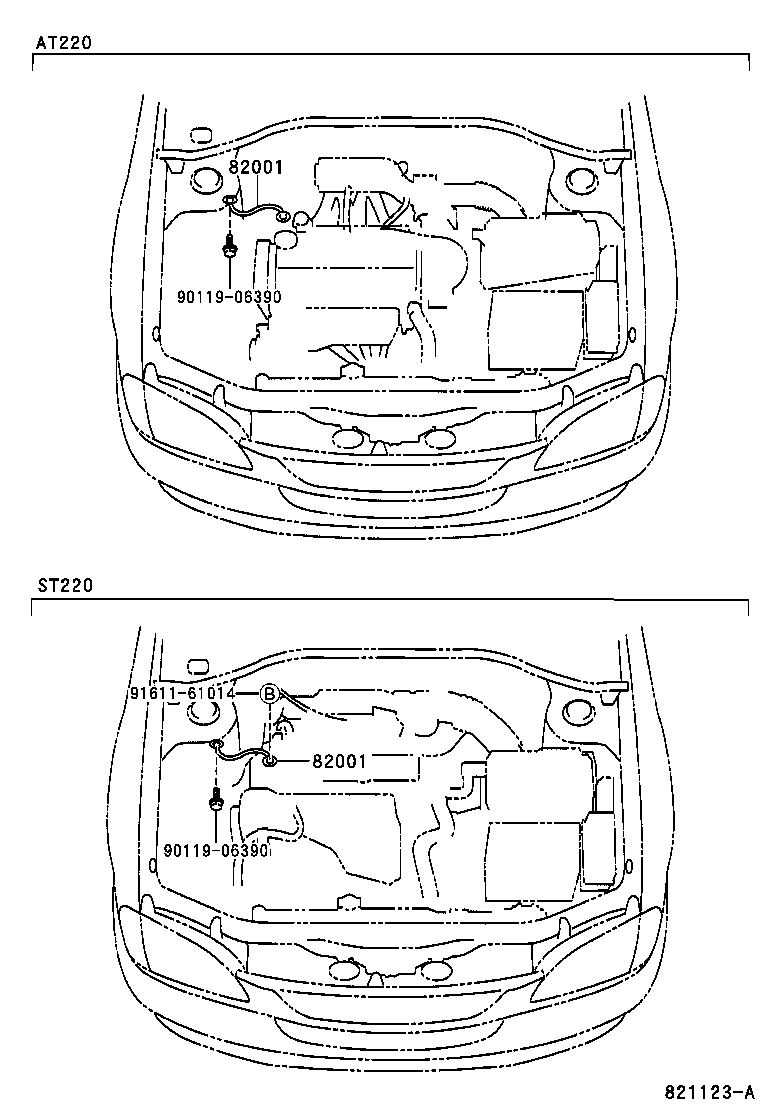

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07374	ST220	10/1997 - 07/2000	1
90980-07109	ST220	07/2000 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07374	ST220	10/1997 - 07/2000	1
90980-07109	ST220	07/2000 - 12/2999	1
Common parts
90119-06390
91611-61014

ILLUST NO. 4 OF 7(9710- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-05651	AT220,ST220..RHD	01/1999 - 07/2000	1
82141-05650	AT220,ST220..RHD	10/1997 - 01/1999	1
82141-05720	ST220..RHD	07/2000 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-05020	ST220	07/2000 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-05040	AT220,CT220,ST220	10/1997 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-05040	AT220,CT220,ST220	10/1997 - 12/2999	2
Common parts
90159-70003

ILLUST NO. 3 OF 7(9710- )RHD

Click highlighted areas on diagram

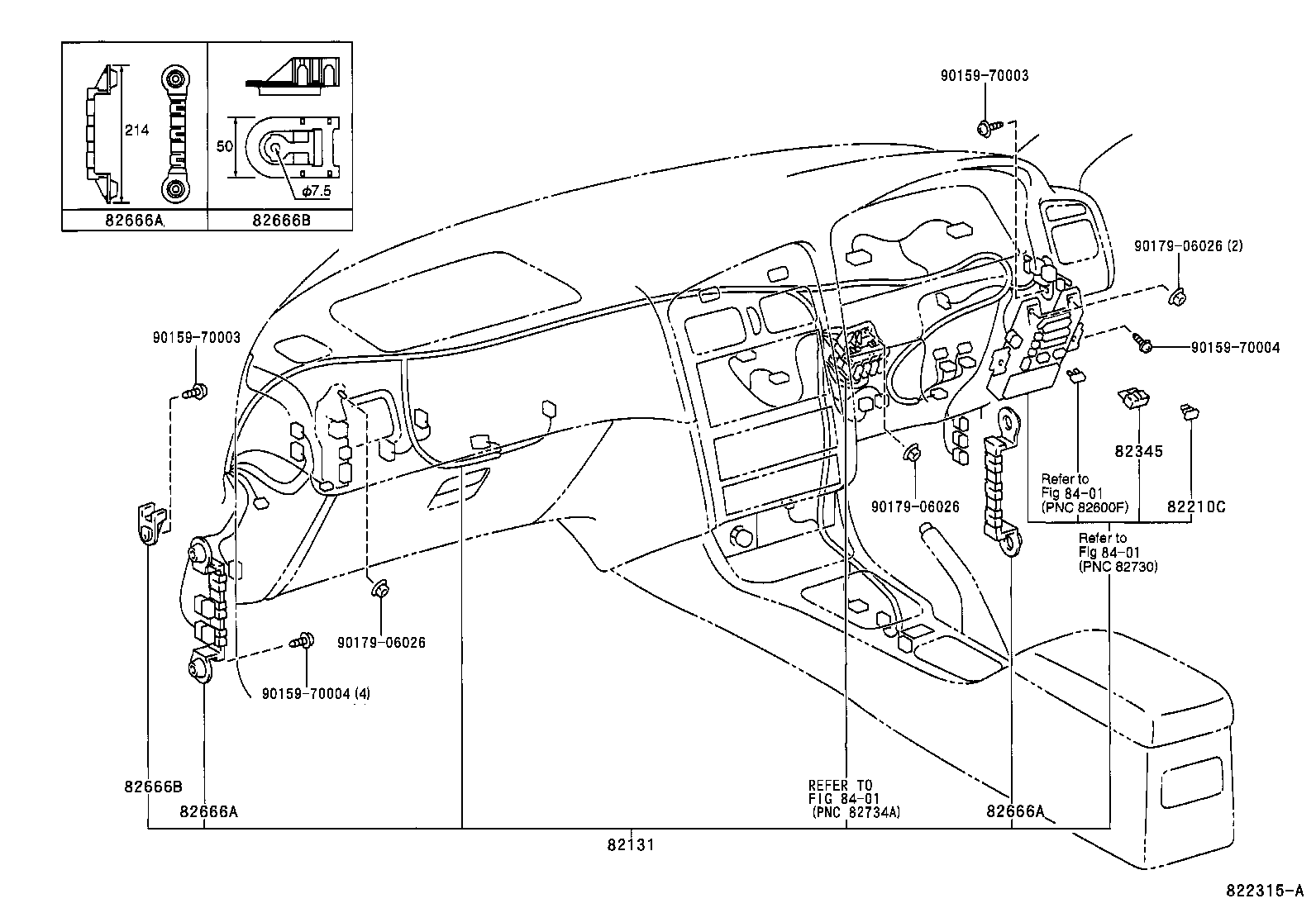

COWL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-05320	ST220..RHD..ATM	10/1997 - 07/2000	1
82135-05180	ST220..RHD..ATM	07/2000 - 10/2000	1
82135-05190	ST220..RHD..ATM W(AUTO AIR CONDITIONER)	07/2000 - 10/2000	1
82135-05181	ST220..RHD..ATM	10/2000 - 12/2999	1
82135-05191	ST220..RHD..ATM W(AUTO AIR CONDITIONER)	10/2000 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	AT220,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08284	AT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 12/2999	2
90982-08270	AT220,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
90982-08283	AT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 12/2999	2
90982-08285	AT220,CT220,ST220 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
82345 - DIODE
82345-20040	AT220,CT220,ST220	10/1997 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT220,CT220,ST220	10/1997 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT220,CT220,ST220	10/1997 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT220,CT220,ST220	10/1997 - 12/2999	2
82666B - HOLDER, CONNECTOR NO.3
82666-05050	AT220,CT220,ST220	10/1997 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-05050	AT220,CT220,ST220	10/1997 - 12/2999	1
Common parts
90159-70003
90159-70004
90179-06026
Linked diagrams
8401
