ST220R-AEPNK (1997)

Toyota Corona

Production Oct 1997 - Jan 2003
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

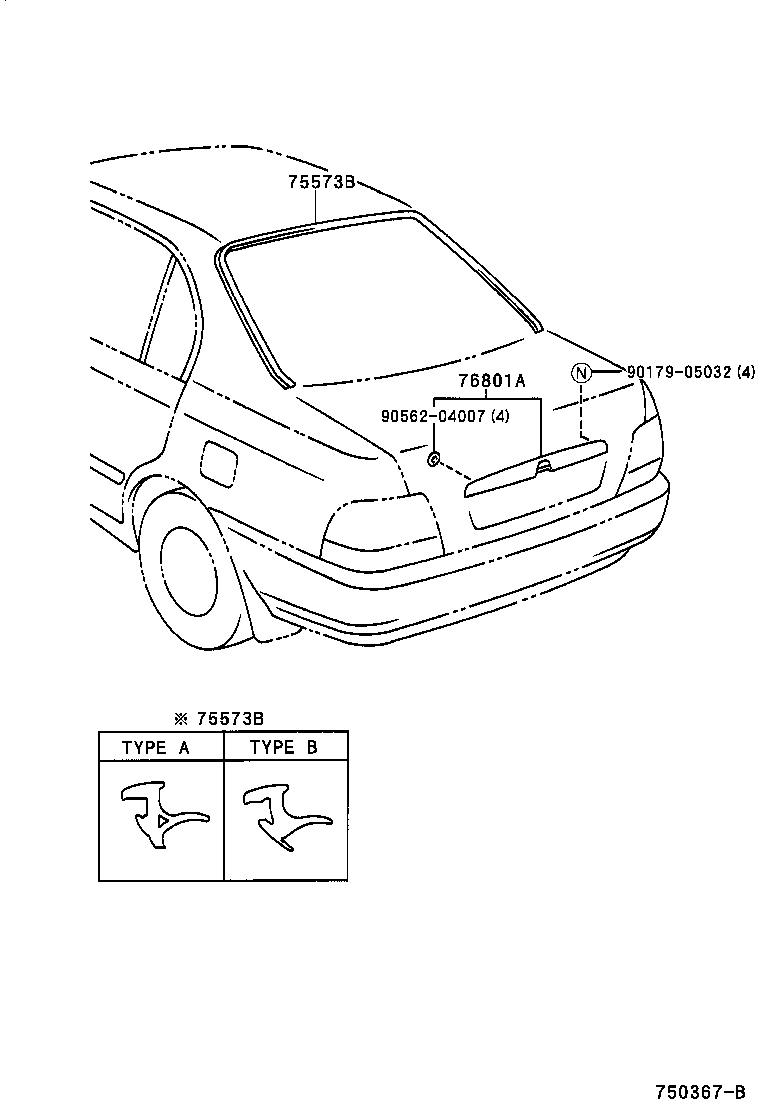

Click highlighted areas on diagram

diagram 75573B 75573B 76801A 9017905032 9056204007
Part # Description Qty Price
75573B - MOULDING, BACK WINDOW, OUTSIDE
75573-05020

AT220,CT220,ST220

TYPE A:REFER TO ILLUSTRATION

 1
75573-05040

AT220,CT220,ST220

TYPE B:REFER TO ILLUSTRATION

 1
75573B - MOULDING, BACK WINDOW, OUTSIDE
75573-05020

AT220,CT220,ST220

TYPE A:REFER TO ILLUSTRATION

 1
75573-05040

AT220,CT220,ST220

TYPE B:REFER TO ILLUSTRATION

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-05010J0

AT220,CT220,ST220

STRONG BLUE M,8B6

 1
76801-05010D1

AT220,CT220,ST220

RED M.M.,3M3

 1
76801-05010G0

AT220,CT220,ST220

DK.GREEN M.M.,6P3

 1
76801-05010G1

AT220,CT220,ST220

LT.GREEN ME.,6Q2

 1
76801-05010K0

AT220,CT220,ST220

DK.PURPLE M.M.,945

 1
76801-05010H0

AT220,CT220,ST220

DP.TURQUOISE MC.,758

 1
76801-05010J3

AT220,CT220,ST220

DK.BLUE M.M.,8L3

 1
76801-05010J2

AT220,CT220,ST220

DK.BLUE ME.,8N3

 1
76801-05010A0

AT220,CT220,ST220

SUPER WHITE 2,040

 1
76801-05010B0

AT220,CT220,ST220

SILVER ME,199

 1
76801-05010J5

ST220

DK.BLUE,8Q4

 1
76801-05010B1

ST220

GRAY M.M.,1E5

 1
76801-05010G2

ST220

DK.GREEN M.M.,6S3

 1
76801-05010D0

AT220,CT220,ST220

SU.RED 3,3J6

 1
76801-05010J1

AT220,CT220,ST220

DK.BLUE,8M4

 1
76801-05010F0

ST220

CHAMPAGNE ME.,583

 1
76801-05010D2

ST220

RED M.M.,3N8

 1
76801-05010C0

AT220,CT220,ST220

BLACK ME,205

 1
76801-05010G3

ST220

GREEN M.M.,6S4

 1
76801-05010J4

ST220

DK.BLUE M.M.,8P4

 1
76801-05010C1

ST220

BLACK MC.,209

 1
Common parts
90179-05032
90562-04007
