ST220R-AEPNK (1997)

Toyota Corona

Production Oct 1997 - Jan 2003
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

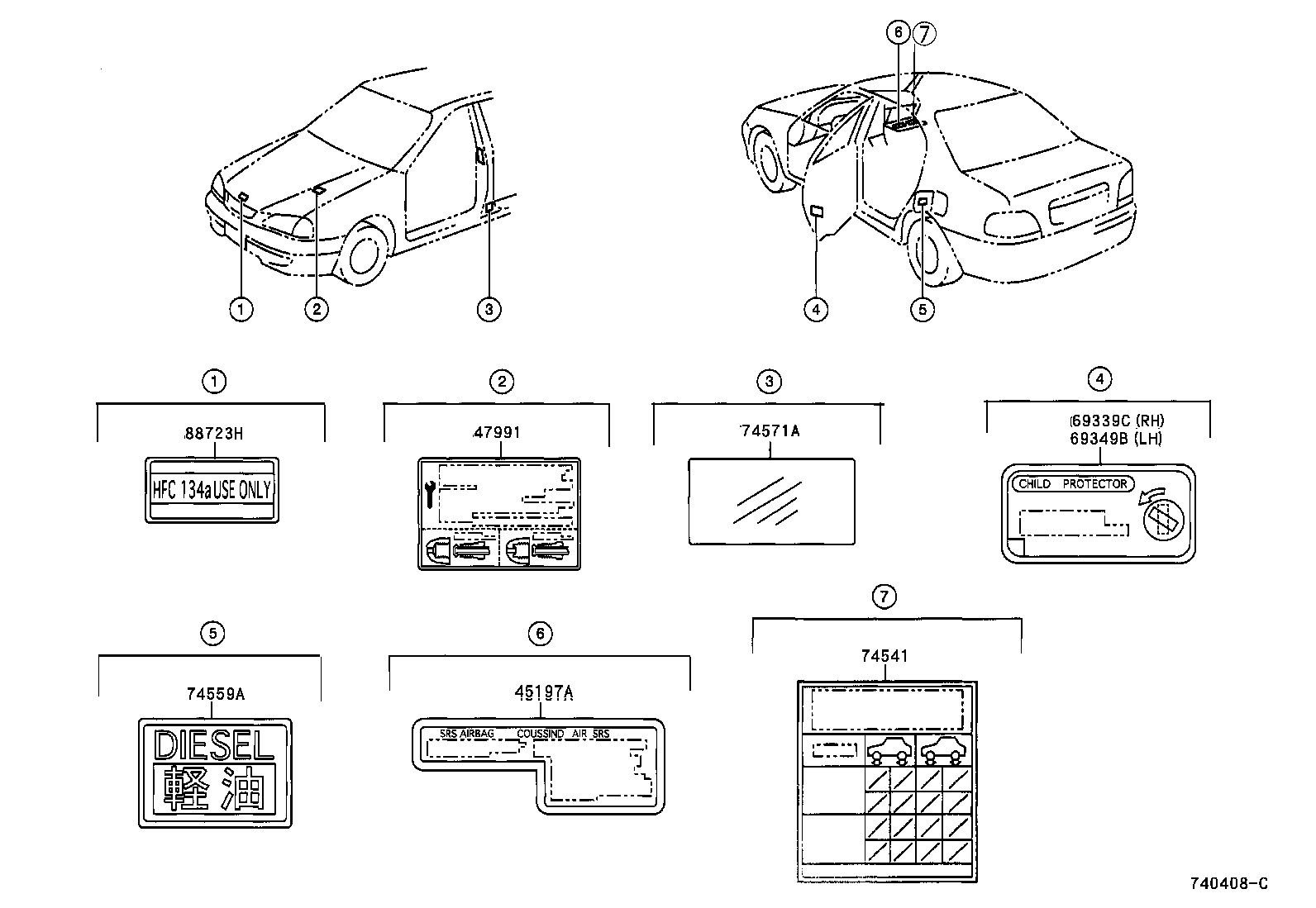

Click highlighted areas on diagram

diagram 45197A 47991 69339C 69349B 74541 74559A 74571A 88723H
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-12070

AT220,CT220,ST220

 1
47991 - LABEL, BRAKE TUBE INFORMATION
47991-33010

AT220,CT220,ST220

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-05020

AT220,CT220,ST220

 1
69349B - LABEL, CHILD PROTECTOR INFORMATION, LH
69349-05020

AT220,CT220,ST220

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-05110

ST220

 1
74571A - FILM, LABEL COVER
74571-05010

AT220,CT220,ST220

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20040

AT220,CT220,ST220

 1
