ST220R-AEPNK (1997)
Toyota Corona
Production
Oct 1997
-
Jan 2003
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9710- )

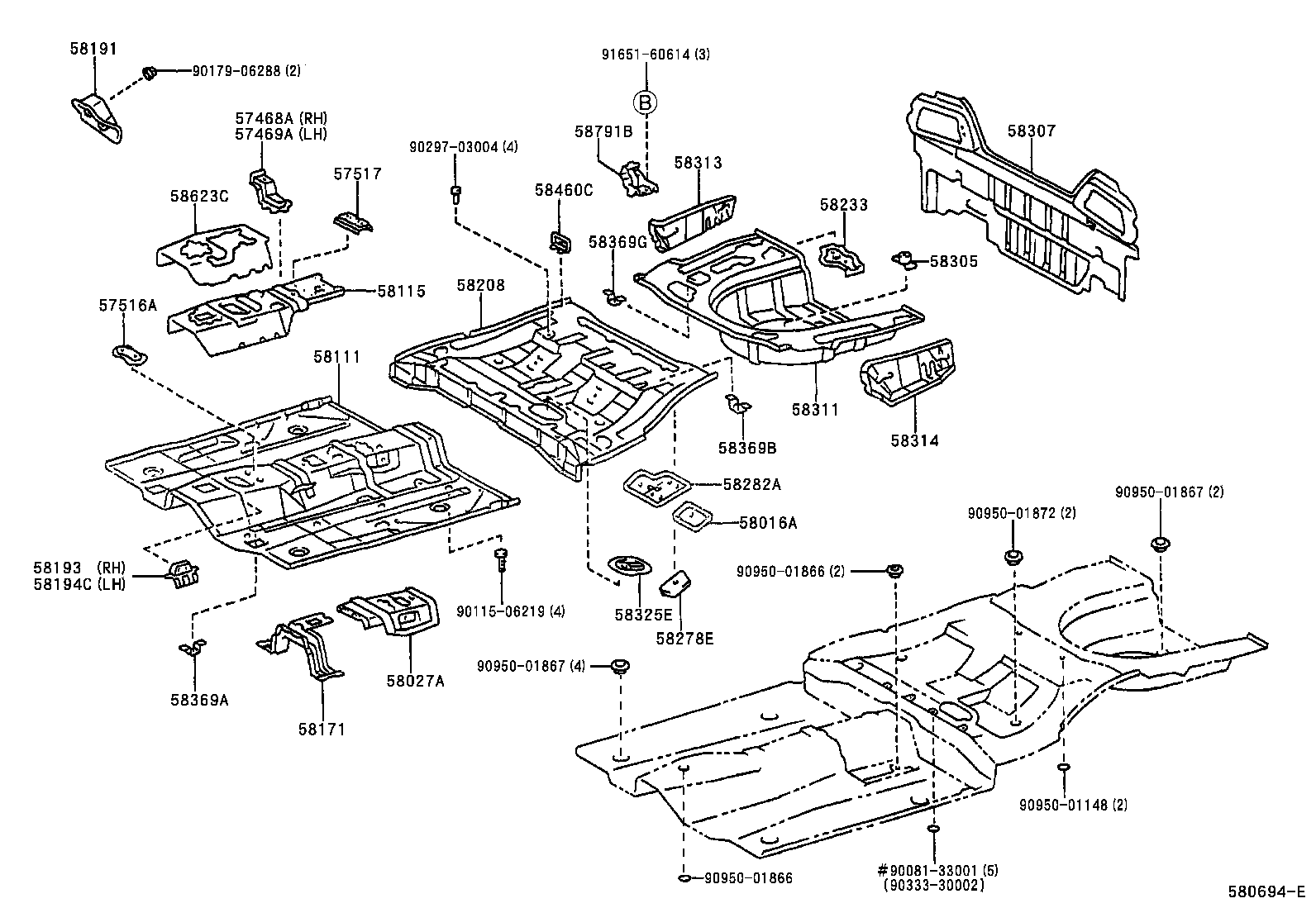

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-20090 |
AT220,CT220,ST220 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-20090 |
AT220,CT220,ST220 |
1 | ||
| 57516A - RETAINER, FRONT FLOOR REINFORCEMENT, FRONT | ||||
| 57516-05010 |
AT220,CT220,ST220 |
1 | ||
| 57517 - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-05010 |
AT220,ST220..ATM |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-05011 |
AT220,CT220,ST220 |
1 | ||
| 58016-05020 |
ST220 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-05010 |
AT220,ST220..RHD |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-05040 |
AT220,CT220,ST220 |
1 | ||
| 58111-05041 |
ST220 |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-05020 |
AT220,ST220..RHD |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-05050 |
AT220,ST220..RHD |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-05020 |
AT220,ST220..RHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-20120 |
AT220,CT220,ST220 |
1 | ||
| 58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH | ||||
| 58194-20040 |
AT220,CT220,ST220 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-05071 |
ST220 |
1 | ||
| 58211-05070 |
AT220,CT220,ST220 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-05020 |
AT220,CT220,ST220 |
1 | ||
| 58278E - REINFORCEMENT, SIDE FLOOR, NO.2 | ||||
| 58278-20050 |
ST220 |
2 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-05030 |
ST220 |
1 | ||
| 58282-05020 |
AT220,CT220,ST220 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-05010 |
AT220,CT220,ST220 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-05040 |
AT220,CT220,ST220 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-05010 |
AT220,CT220,ST220 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-05040 |
AT220,CT220,ST220 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58306-05020 |
AT220,CT220,ST220 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-05010 |
AT220,CT220,ST220 |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-05010 |
AT220,CT220,ST220 |
2 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
AT220,CT220,ST220 |
4 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-05010 |
AT220,CT220,ST220 |
2 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58048-20020 |
AT220,CT220,ST220 |
2 | ||
| 58623C - PAD, FRONT FLOOR SILENCER, CENTER | ||||
| 58623-05020 |
AT220,CT220,ST220 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-20110 |
AT220,CT220,ST220 |
1 | ||
| Common parts | ||||
| 90081-33001 | ||||
| 90115-06219 | ||||
| 90179-06288 | ||||
| 90297-03004 | ||||
| 90333-30002 | ||||
| 90950-01148 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-01872 | ||||
| 91651-60614 | ||||
